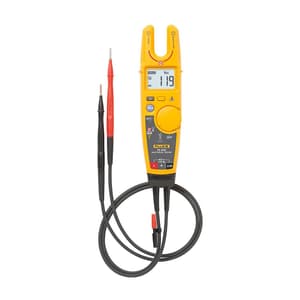

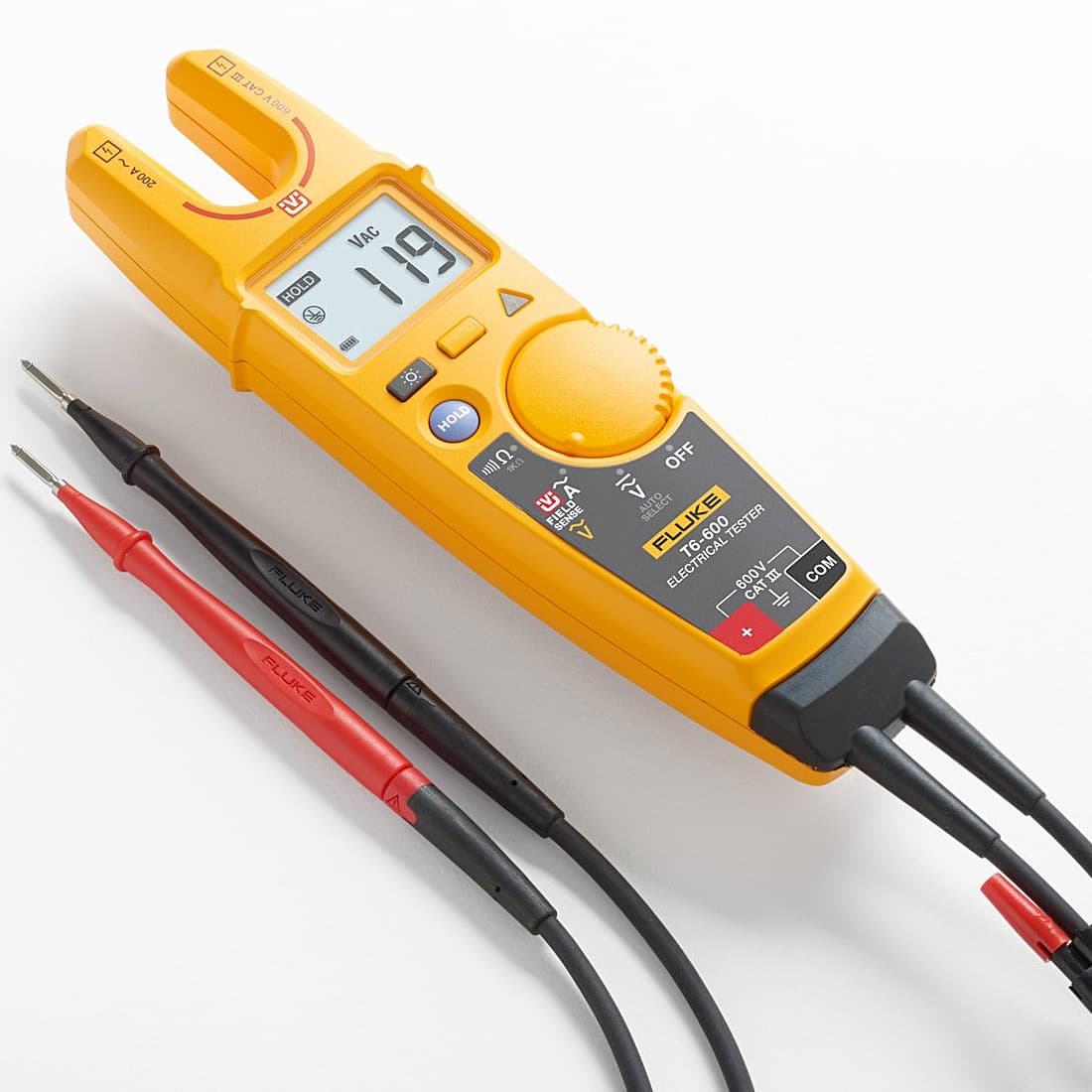

Fluke T6-600 Electrical Tester
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 350 g
- Calibration: 1-year calibration cycle
- Jaw opening: 17.8 mm
- Safety: IEC/EN 61010-1: Pollution Degree 2
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹21,777 (Incl. of all taxes)
₹18,455 + ₹3,322 GST (18%)
MRP was MRP ₹27,140
Save 32%
12 Business Days
1
90275090
Download Fluke CatalogueNot available
Highlights

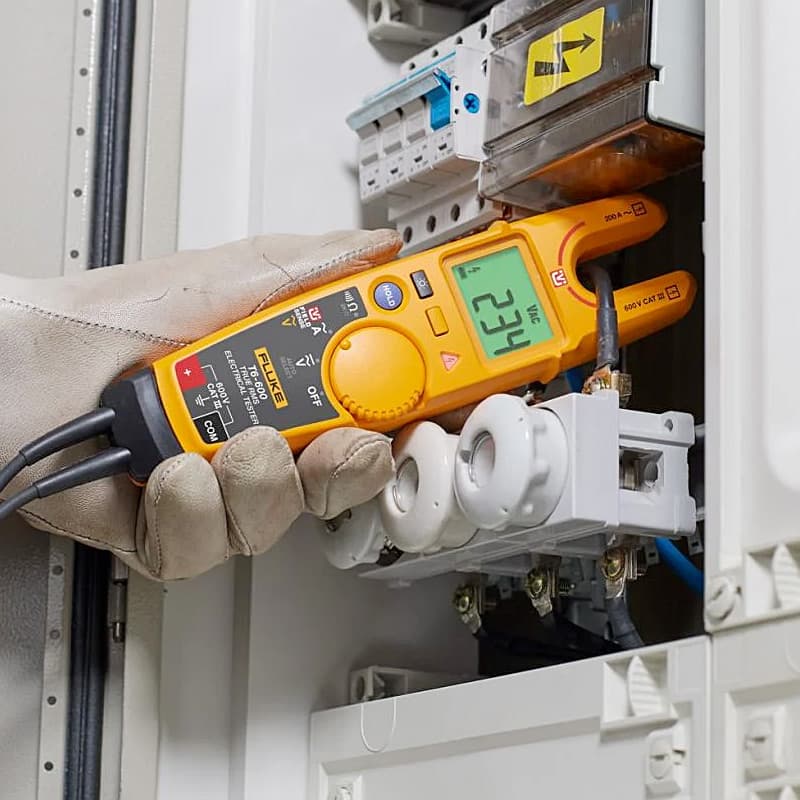

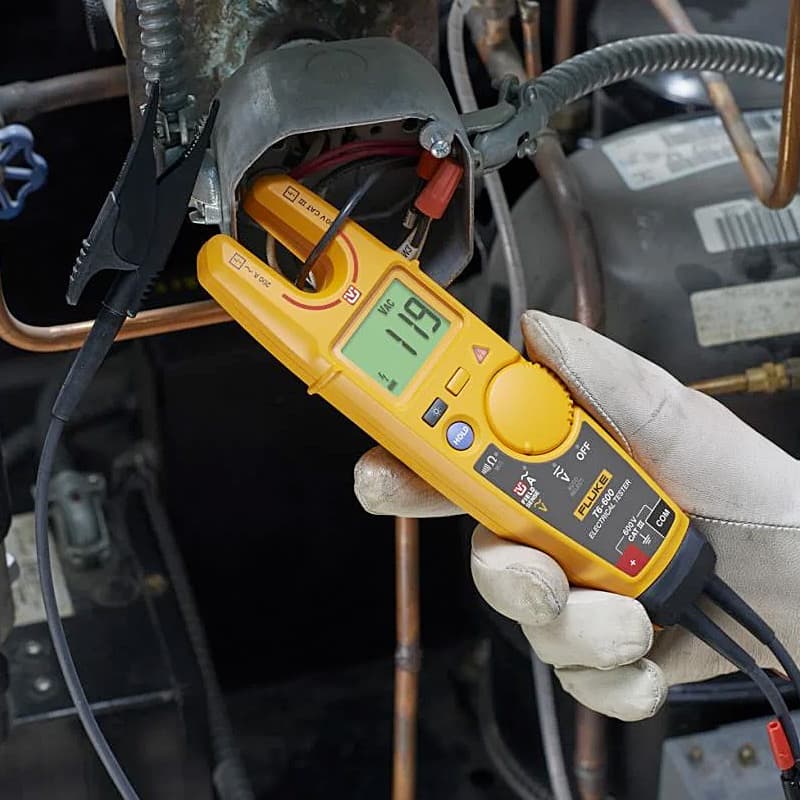

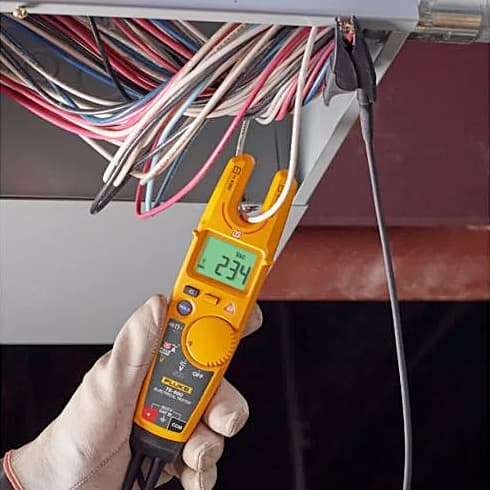

Working in cramped electrical boxes and trying to find safe metallic contact points is often challenging. The Fluke T6-600 Electrical Tester with FieldSense™ technology, lets you quickly and safely take measurements by sliding the open fork over a conductor, without the need for test leads. The T6-600 works with wires up to AWG 4/0 (120 mm2) with a 17.8 mm jaw opening.
Features:
- Measure AC voltage, current, frequency without touching a live wire
- Troubleshoot with all power supply measurements at-a-glance
- See AC voltage and current values without test leads.
How FieldSense™ Technology Works:
FieldSense™ technology is a breakthrough in how voltage is measured. Other open fork testers detect a magnetic field to show AC current. FieldSense™ technology detects an electrical field, which interacts with a reference signal created by the T6 tester, which shows the measurement value on the tester’s display.
Tips On Using FieldSense Technology:
- Do not hold or touch the wire you are testing during a measurement.
- Use the black probe to make the ground connection if you are wearing gloves, insulated footwear, or standing on an insulated ladder.
Measurement Versatility:
The electrical tester offers a variety of measurement options giving you an all-in-one troubleshooting tool. Measure true RMS voltage and current from 0 to 200 A AC or 1 to 600 V AC or DC.
You can also gather resistance measurements from 1 Ω to 2000 Ω. With the easy-to-read backlit display, you can keep see your work in dark environments and keep your most recent measurement on the screen with the HOLD button for easy viewing. The T6-600 also Accepts an optional Fluke TPAK Magnetic Meter Hanger for convenient operation.
What's Included In This Package:
- Fluke T6-600 Electrical Tester
- Attached test leads with removable 4 mm probe caps
- Quick Reference Guide
Measurement Specifications:
| Function | Requires test leads | Range | Resolution | Accuracy[1] |
| FieldSense ac voltage true-rms |
No | 600 V | 1 V | ±(3% + 3 counts) 45 Hz - 66 Hz[2] [3] |
| FieldSense ac current true-rms |
No | 200.0 A | 0.1 A | ±(3% + 3 counts) 45 Hz - 66 Hz |
| Volts ac true-rms | Yes | 600 V | 1 V | ±(1.5% + 2 counts) 45 Hz - 66 Hz |
| Volts dc | Yes | 600 V | 1 V | ±(1% + 2 counts) |
| Resistance | Yes | 2000 Ohms | 1 Ohms | ±(1% + 2 counts) |
| Safety | 600 V CAT III | |||
|
Accuracy[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy[3]: FieldSense is specified from 16 V to 100 % of range. |
||||
| General Specifications | ||||
| Temperature | Operating | -10 °C to +50 °C (14 °F to 122 °F) | ||
| Storage | -30 °C to +60 °C (-22 °F to +140 °F) | |||
| Altitude | Operating | 2,000 m (6,562 feet) | ||
| Storage | 10,000 m (32,808 feet) | |||
| Relative Humidity | 0% to 90%, 5 °C to 30 °C (41 °F to 86 °F) | |||
| 0% to 75%, 30°C to 40 °C (86 °F to 104 °F) | ||||
| 0% to 45%, 40°C to 50 °C (104 °F to 122 °F) | ||||
| Temperature coefficient | 0.1 x (specified accuracy) / °C for <18°C or >28 °C | |||
| (< 64.4 °F or > 82.4 °F) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Calibration | 1-year calibration cycle |
|---|---|
| Dimensions | 61.1 x 259.3 x 43.8 mm |
| Jaw opening | 17.8 mm |
| Battery Type and Life | 2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense |
| Safety | IEC/EN 61010-1: Pollution Degree 2 |
| Electromagnetic Environment | IEC/EN 61326-1: Portable |
