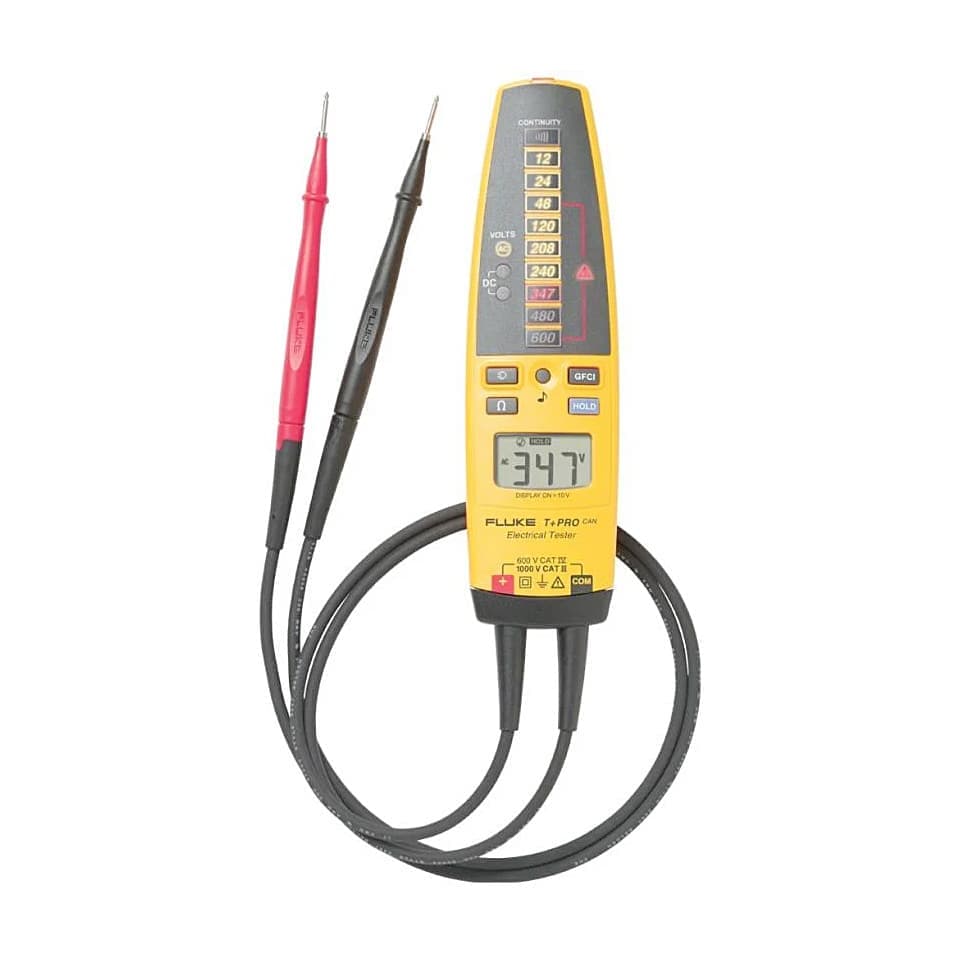

Fluke T+ 600V AC / DC Electrical Tester
Roll over the image to zoom in
Key Features
- Product Type: Electrical Testers
- Weight: 280 g
- Battery type/life: AAA (2); 40 hours
- AC bandwidth: 45 Hz to 66 Hz
- Voltage hazard LED: LEDs turn on at voltages > 30 V AC/DC ± 35%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,320 (Incl. of all taxes)
₹8,746 + ₹1,574 GST (18%)
MRP was MRP ₹12,862
Save 32%
12 Business Days
1
90303900
Download Fluke CatalogueNot available
Highlights
The T+ Electrical tester offers three ways to know if AC/DC voltage is present. It lights up, makes a sound, and vibrates for added user protection. With these indicators, the user will be alerted to the presence of voltage even in dark, or noisy environments.
The audible indicator can also be easily switched off - with the push of a button. Part of the safety design into the T+ Electrical Tester is that is can still detect live voltage even when the batteries are dead. It also holds a safety rating:
- CAT IV 600 V, CAT III 1000 V
- Fully compliant with NFPA 70E
GFCI Trip Testing:
The T+ tester has a GFCI Trip for testing GFCI circuits on outlets. A built-in flashlight also lets the user highlight the test point being measured for easier visibility. The back of the tester is also designed with convenient test lead storage. And all of that is backed by a 2-year warranty.
Features:
- Detect live voltage even when the batteries are dead
- 3 forms of AC/DC voltage indication: light, sound, and vibration
- GFCI Trip for testing GFCI circuits on outlets.
What's Included In This Package:
- T+ Electrical Tester
- Test lead wrap
- TP2 test probes
- Quick Reference Guide
Specifications:
| Temperature | Operating | -10°C to 55°C (14°F to 131°F) |
| Storage | -30°C to 60°C (-22°F to 140°F) | |
| Relative humidity | 90% | 0°C to 30°C (32°F to 86°F) |
| 75% | 30°C to 40°C (86°F to 104°F) | |
| 45% | 40°C to 50°C (104°F to 122°F) | |
| Altitude | Operating | 2,000 m (approx. 6,561.6 ft) |
| Storage | 10,000 m (approx. 32,808.4 ft) | |
| Safety | ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E1 |
|
| Duty cycle | Indefinitely for voltages up to 240 V | |
| For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off | ||
| For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Battery type/life | AAA (2); 40 hours |
|---|---|
| Shock, vibration | Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument |
| AC bandwidth | 45 Hz to 66 Hz |
| Maximum working voltage | 1000 V AC/DC |
| Maximum measurable voltage | 600 V AC/DC |
| Voltage hazard LED | LEDs turn on at voltages > 30 V AC/DC ± 35% |
| LED voltage indication levels | 12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V |
| LCD resolution | 0.1 V for voltages < 50 V, 1 V for voltages = 50 V |
| GFCI test current | 100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA |
| Standard input test current | < 5 mA |
| Size (H x W x L) | 1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm ) |
