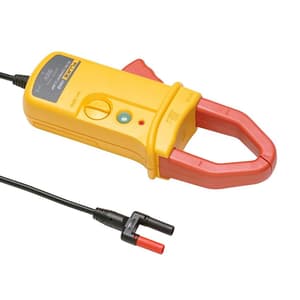

Fluke i1010 1000A AC / DC Current Clamp
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Useable frequency: DC - 10 kHz
- Safety: CAT III, 600 V
- Battery life: 9 V, 60 h
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹53,496 (Incl. of all taxes)
₹45,336 + ₹8,160 GST (18%)
MRP was MRP ₹66,670
Save 32%
12 Business Days
1
90309090
Download Product LeafletNot available
Download Fluke CatalogueNot available
Download Fluke CatalogueNot available
Highlights
Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A, and provides accurate current reading without breaking the circuit.
This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult-to-reach areas. Compatible with most Fluke multimeters.
Features:
- The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
- Provides accurate current reading without breaking the circuit.
- Compatible with most Fluke multimeters.
- CAT III 600 V safety rating
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement type | Hall sensor |
|---|---|
| Nominal current range | 600 A, AC / 1000 A, DC |
| Continuous current range | 1 A - 600 A, AC / 1 A - 1000 A, DC |
| Maximum non-desctructive current | 1000 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy | 2% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 10 kHz |
| Output level(s) | 1 mV/A |
| Zero error adjustment | Yes |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter | 30 mm 2 x 25 mm |
| Output cable length | 1.6 Mtr |
| Shrouded banana plugs | Yes |
