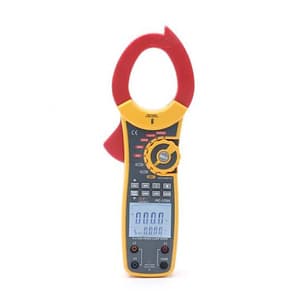

HTC 1000A Power Clamp Meter With Backlight, PC-170A
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Power: 9V (6F22) X 1
- Jaw Open: 55 mm
- Dimension: 295 (H) x 100 (W) x 46 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,972 (Incl. of all taxes)
₹6,756 + ₹1,216 GST (18%)
MRP was MRP ₹8,445
Save 20%
7 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- True RMS Value (Voltage/Current)
- 9999 Count.
- Large LCD Display with Backlight.
- USB interface.
- True Power / Apparent power / Power factor measurement.

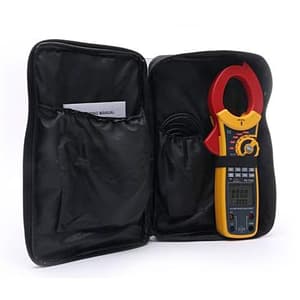

Package Content:
- Test Lead,
- Manual,
- Soft Carrying Case,
- USB Cable & Software
AC Voltage (True RMS):
| Range | Resolution | Accuracy |
| 100V | 0.1V | 50Hz-200Hz: ±1.2% of rdg + 5 digits |
| 400V | ||
| 750V |
AC Current (True RMS):
| Range | Resolution | Accuracy |
| 40A | 0.1V | 50Hz-60Hz: ±2% of rdg + 5 digits |
| 100A | ||
| 400A | ||
| 1000A | 1A |
Power Factor:
| Range | Resolution | Accuracy |
| 0.3 – 1 | 0.001 | ±0.022% of rdg |
Phase Angle:
| Range | Resolution | Accuracy |
| 0°- 90° | 1° | ±2% of rdg |
Active Energy:
| Range | Resolution | Accuracy |
| 1-9999kWh | 0.001kWh | ±3% of rdg + 2 digits |
Active Power:
| Current/Voltage | Voltages Range | Accuracy | Resolution | ||||||||||||||||||||
|
|
±3% of rdg + 5 digits | <10000KW: 0.01KW 100kW: 0.1KW |
Apparent Power:
| Current/Voltage | Voltages Range | Accuracy | Resolution | ||||||||||||||||||||
|
|
±3% of rdg + 5 digits | <10000KVAr: 0.01KVAr 100kW: 0.1KVAr |
Reactive Power:
| Current/Voltage | Voltages Range | Accuracy | Resolution | ||||||||||||||||||||
|
|
±3% of rdg + 5 digits | <10000KVAr: 0.01KVAr 100kW: 0.1KVAr |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power | 9V (6F22) X 1 |
|---|---|
| Jaw Open | 55 mm |
| Dimension | 295 (H) x 100 (W) x 46 (D) mm |
