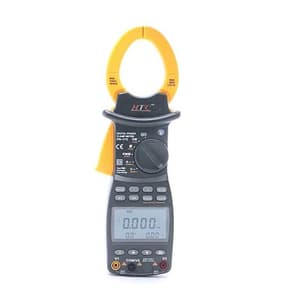

HTC 1000A Power Clamp Meter With Harmonics, PA-172
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Jaw Open: 50 mm
- Power: AA 1.5V X 4
- Dimension: 300 (H) x 103 (W) x 51 (D) mm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,404 (Incl. of all taxes)
₹10,512 + ₹1,892 GST (18%)
MRP was MRP ₹13,140
Save 20%
7 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- 1Ø/3Ø Power Measurement.
- RS-232 Interface.

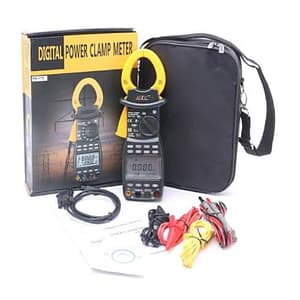

Package Contents:
- Test Lead,
- Manual,
- Soft Carrying Case,
- USB Cable & Software.
AC Voltage RMS:
| Range | Resolution | Accuracy |
| 80V | 0.1V | ±1.0% of rdg + 5 digits |
| 180V | ||
| 400V | 1V | |
| 600V |
AC Current RMS:
| Range | Resolution | Accuracy |
| 20A | 0.01A | ±2.0% of rdg + 5 digits |
| 40A | ||
| 100A | 0.1A | |
| 200A | ||
| 450A | 1A | |
| 1000A |
Single-Phase Active Power:
| Range | Resolution | Accuracy |
| 30kW | 0.01kW | ±3% of rdg + 5 digits |
| 60kW | ||
| 120kW | 0.1kW | |
| 150kW | ||
| 300kW | ||
| 600kW |
Three-Phase Active Power:
| Range | Resolution | Accuracy |
| 3kVA | 0.001kVA | ±3% of rdg + 5 digits |
| 12kVA | 0.01kVA | |
| 30kVA | ||
| 120kVA | 0.1kVA | |
| 150kVA | ||
| 600kVA |
Power Factor:
| Range | Resolution | Accuracy |
| 0.3 – 1 Capacitive | 0.001 | ±0.02% of rdg + 2 digits |
| 0.3 – 1 Inductive |
Passive Power:
| Range | Resolution | Accuracy |
| 3kVAr | 0.001kVAr | ±3% of rdg + 5 digits |
| 12kVAr | 0.01kVAr | |
| 30kVAr | ||
| 120kVAr | 0.1kVAr | |
| 150kVAr | ||
| 600kVAr |
Frequency:
| Range | Resolution | Accuracy |
| 30Hz – 1kHz | 0.1Hz | ±0.5% of rdg + 1 digits |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Open | 50 mm |
|---|---|
| Power | AA 1.5V X 4 |
| Dimension | 300 (H) x 103 (W) x 51 (D) mm |
