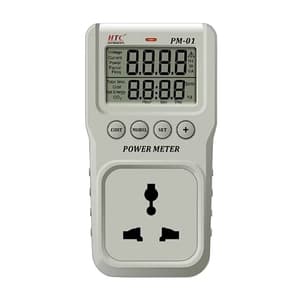

HTC 10A Power Monitor With Backlight, PM-01
Roll over the image to zoom in
Key Features
- Product Type: Power Meter
- Weight: 155 g
- Power Supply: 3V, Button Cell (CR2032) x 1
- Input: 220V, 50Hz, 6A
- Working Temperature: 0°C~45°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,553 (Incl. of all taxes)
₹1,316 + ₹237 GST (18%)
MRP was MRP ₹1,645
Save 20%
Out of Stock
7 Business Days
1
90303100
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Smart Three-pin Socket
- Dual Large LCD Display with Backlight
- Memory Retention (KWh, min)
- CO2 Display ON 9999kg
Power:
| Range | Resolution | Accuracy |
| 0.5 – 1 W | – | ±1% |
| 1 – 5 W | ±1% | |
| 5 – 2380 W | ±1% |
Power Factor:
| Range | Resolution | Accuracy |
| 0.00 ~ 1.00 | – | ±2% |
Current:
| Range | Resolution | Accuracy |
| 0.000~10.00 | – | ±1% |
Voltage:
| Range | Resolution | Accuracy |
| 100.0 ~ 260.0V | – | ±1% |
Frequency:
| Range | Resolution | Accuracy |
| 50Hz | – | ±1% |
Total Usage Time:
| Range | Resolution | Accuracy |
| 0 Min. ~ 9999 Day | – | ±1% |
Total Used Energy:
| Range | Resolution | Accuracy |
| 0.010 ~ 9999kWh | – | ±1% |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Power Supply | 3V, Button Cell (CR2032) x 1 |
|---|---|
| Input | 220V, 50Hz, 6A |
| Accumulative Charges | 0~9999*$ |
| Working Temperature | 0°C~45°C |

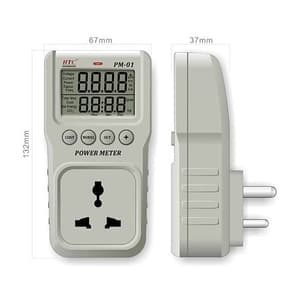

| Dimension | 132 (H) x 67 (W) x 37 (D) mm |
