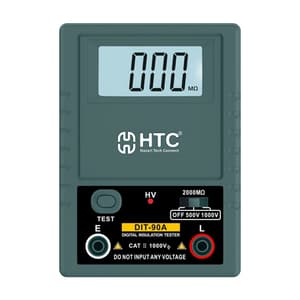

HTC 1000V / 2000 MOhms Range Digital Insulation Tester, DIT-90A
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 395 g
- Rated Voltage: 500/1000V
- Range Max: 2000M Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,581 (Incl. of all taxes)
₹1,340 + ₹241 GST (18%)
MRP was MRP ₹1,675
Save 20%
5 Business Days
1
90303350
Download Product LeafletNot available
Download HTC CatalogueNot available
Download HTC CatalogueNot available
Highlights
- Optional Power Adaptor
- Large LCD (20mm Height)
- Backlight
- Insulation Resistance: More Than 50MΩ at 500V Between Circuit & Case
- High Voltage Warning Indicator.
- Over Range Display.
- Single-Person Push Button Operation
Package Content:
- Digital Insulation Tester
- Test Lead,
- User Manual,
- 6x AA 1.5V Batteries.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digit | 3-1/2 Digits |
|---|---|
| Display Counts | 1999 Counts |
| Rated Voltage | 500/1000V |
| Range Max | 2000M Ohms |
| Resolution | 1M Ohms |
| Max No. Load Voltage | ±25% of rated voltage |
| Short Circuit Current Accuracy | <2mA ±(3%rdg +2 dgt) |
| Power Supply | 6x AA 1.5V Batteries |
| Dimensions (HxWxD) | 139 x 99 x 54 mm |
