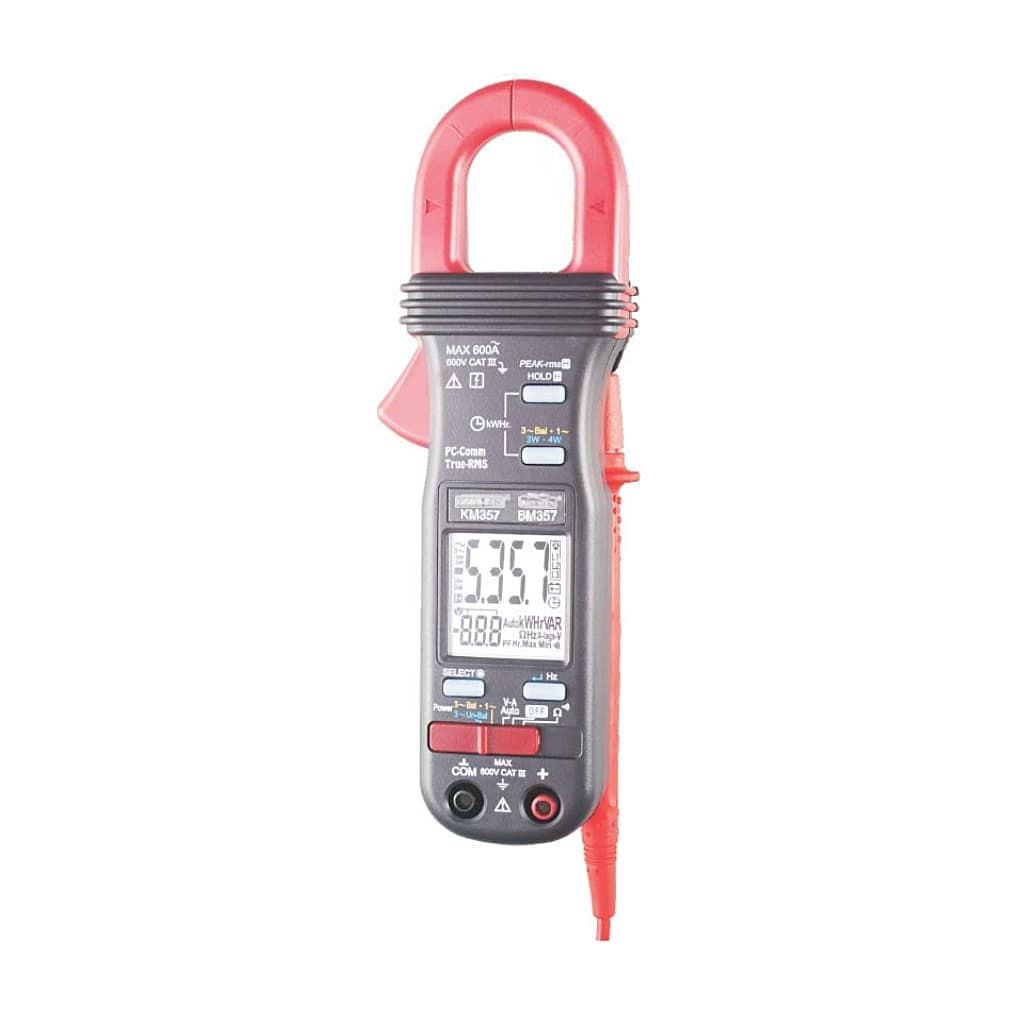

Kusam-Meco 1 Phase 9999 Counts TRMS Power Clamp-On Meter (17 Functions 25 Ranges), 2736

• Selectable Power parameters of KW, KVAR & KVA with Total Power Factor in dual-display
• AutoVA (Auto Selection on ACV, DCV or ACA functions)
• THD%-F Function
• Backlight Display
• Display Hold; Peak-rms Hold
• PC Interface Capabilities (Optional)
• Display: 6000 Counts LCD Display Power (Voltage Function) / 9999 Counts LCD Display (Ohm & Hz Functions) / 4000 Counts LCD Display (ACA clamp-on function)
• Update Rate: Power function (2 per second nominal Voltage) / ACA Clamp-On & Ohm Functions (2 per second nominal) / Hz function (1 per second nominal)
• Relative Humidity: Maximum relative humidity is 80% o for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Temperature Coefficient: nominal 0.15x (specified accuracy) / °C @ (0 C -18°C or 28°C - 40°C), or otherwise specified

Safety:

• Meets IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed., IEC61010-2-032, EN61010-2-032, UL61010B-2-032
• E. M. C.: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-7, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Total Accuracy = Specified Accuracy + 50 digits / Performance above 3V/m is not specified
• Measurement Category: CAT III 600Volts AC & DC
• Pollution degree: 2
• Overload Protections: ACA Clamp-on jaws : AC 600A rms continuous + & COM terminals(all functions): 600VDC/VAC rms / Ohm Function : 5.5mA Typical
• Transient Protection: 6.5kV (1.2/50µS Surge)

Package Content:

• Clamp-On Meter
• Test leads (pair)
• Batteries installed
• User’s Manual
• Carrying Case
