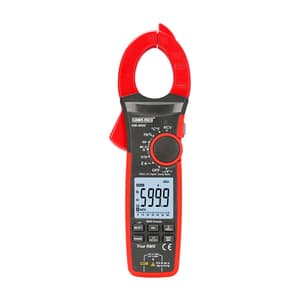

Kusam-Meco 1000A AC TRMS Digital Clampmeter, KM 4000
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 465 g
- Jaws Opening Size: 42 mm
- Power Supply: 3 x 1.5V batteries
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,266 (Incl. of all taxes)
₹8,700 + ₹1,566 GST (18%)
MRP was MRP ₹10,875
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
KM-4000 is a 6000-count digital clamp meter with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/ CAT IV 600V safety rating and are certified by CE/ETL. KM-4000 has LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and Inrush current mode for capturing transient current.
The KM-4000 also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
Features & Benefits:
- True RMS
- Flashlight
- NCV (audible/visual alarm)
- Data hold/backlight
- Max/Min/ Relative mode
- Diode/ Continuity test
- Inrush current
- Optional Flex Clamp (3000A) (KM-CCT3K)
- 6000 Counts display
- LPF ACV
- LoZ ACV
- 31 Analog Bar Graph
- CAT lll 1000; CAT IV 600V
Technical Data:
| Functions | Range | Accuracy |
| AC current (A)( 50Hz~60Hz) | 1000A | ±(2%+5) |
| Inrush current (A) | 1000A | ±(10%+10) |
| AC Voltage (V) (40Hz~400Hz) | 1000V | ±(1.2%+3) |
| DC Voltage (V) | 1000V | ±(0.5%+5) |
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) |
| LoZ ACV | 1000V | ±(2%+5) |
| Resistance (Ω) | 60MΩ | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature | - 40°C ~ 1000°C | ±(1%+2) |
| - 40°C~1832°F | ±(1%+4) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle(%) | 10%~90% | ±(2.6%+7) |
Package Content:
- Test leads
- batteries
- point contact temperature probe
- Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaws Opening Size | 42 mm |
|---|---|
| Power Supply | 3 x 1.5V batteries |
| Display Size | 43 mm x 45 mm |
| Dimension (W x H x D) | 272 mm x 81 mm x 43.5 mm |
