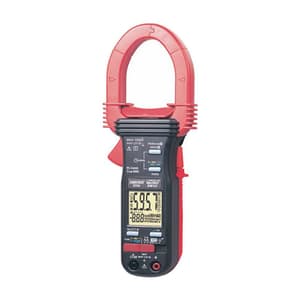

Kusam-Meco 3 Phase 9999 Counts TRMS Power Clamp-On Meter, 2709

• Selectable Power parameters of KW, KVAr & KVA with Total Power Factor in dual-display
• kWHr Recording
• AutoVA (Auto Selection on ACV, DCV or ACA functions)
• Total harmonic distortion THD% -F in dual-display
• Backlight display
• Display Hold
• PEAK-rms HOLD
• PC-Comm computer interface capabilities (optional)
• Display: 6000 Counts LCD Display (Voltage Function) / 9999 Counts LCD Display (Power, Ohm & Hz Functions) / 4000 Counts LCD Display (ACA Clamp-On Function)
• Update Rate: Power Function (2 Per Second Nominal) / Voltage, ACA clamp-on & Ohm Functions (2 Per Second Nominal) / Hz Function (1 Per Second Nominal)
• Relative Humidity: Maximum relative humidity is 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Temperature Coefficient: Nominal 0.15x (Specified Accuracy) / C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified

Safety:

• Meets IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003)
• Measurement Category: CAT III 600 Volts AC & DC
• Transient Protection: 6.5 kV (1.2/50µS surge)
• Pollution degree: 2
• E. M. C.: Meets EN61326(1997, 1998/A1), EN61000-4-2 (1995,2000/A2) and EN61000-4-3(2002) In an RF field of 3V/m: Total Accuracy = specified Accuracy + 50 digits / Performance above 3V/m is not specified
• Overload Protection: ACA Clamp-on jaws - AC 1000A rms continuous / + & COM terminals: 600 V DC / V AC rms

Package Content:

• Clamp-On Meter
• Test leads (pair)
• Batteries installed
• User’s Manual
• Soft Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
