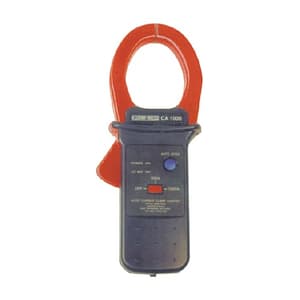

Kusam-Meco 1000A AC / DC Current Clamp Adaptor, CA1000
Roll over the image to zoom in
Key Features
- Product Type: Clamp Meters
- Weight: 490 g
- Jaw Opening Size: 57mm Conductor, 70 X 18 Mm Bus Bars
- Measuring Range: 0 to 1000A AC or DC max.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹6,160 (Incl. of all taxes)
₹5,220 + ₹940 GST (18%)
MRP was MRP ₹6,525
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
CA1000 Current Clamp is a transducer that will allow your multimeter to measure electrical Current up to 500/1000/2000 amperes AC or DC, with a Frequency response of up to 400Hz. The clamp is built with a design finger guard which ensures the user operating the clamp in a safety situation, with a rugged case that is shock-resistant and fire-retardant.
DC Current
AC Current (Average Sensing)
Accuracy
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Basic Accuracy - 1.5%rdg + 2A
- When measuring current with this clamp, there is no need to break a circuit or to affect the isolation
- It can be used for waveform analysis by connecting it to an oscilloscope.
- Auto Zero function
- Output - 0 to 1V rms or DC with > 1 Meg Ohms input impedance / Coil cable with straight banana plug
- Temperature Coefficient - 0.1 x (specified accuracy) / 1 °C (0 °C to 18 °C, 28 °C to 50 °C)
Safety:
- The instrument complies with class II, CAT II 1000V of the EN61010-1, and EN61010-2-032 standards. Pollution degree 2 in accordance with IEC 664 indoor use.
- The product complies with the requirements of the following European Community Directives: 89 /336 / EEC (Electromagnetic Compatibility) and 73 / 23 / EEC (Low Voltage) as ammended by 93 / 68 / EEC (CE marking).
Technical Data:
| Range | Accuracy |
| 0 ~ 400A | ± (1.5% rdg + 2 A) |
| 400A ~ 800A | ± (2.5% rdg + 2 A) |
| 800A ~ 1000A | ± (3.5% rdg + 3 A) |
| 1000A ~ 2000A | ± (3.5% rdg + 3 A) |
| Range | Accuracy |
| 0 - 400A / 50Hz - 60Hz | ± (1.5% rdg + 2 A) |
| 0 - 400A / 61Hz - 400Hz | ± (3.5% rdg + 2 A) |
| 400A - 1000A / 50Hz - 60Hz | ± (2.0% rdg + 3 A) |
| 400A - 1000A / 61Hz - 400Hz | ± (3.5% rdg + 3 A) |
| 1000A - 1500A | ± (3.5% rdg + 3 A) |
| Total Accuracy | Current Clamp Accuracy + DMM Accuracy |
Package Content:
- Carrying Case
- Battery installed & User’s manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Jaw Opening Size | 57mm Conductor, 70 X 18 Mm Bus Bars |
|---|---|
| Measuring Range | 0 to 1000A AC or DC max. |
| Transfer Rate | 1mV / 1A |
| System Accuracy | Current Clamp Accuracy + DMM Accuracy |
| Operating Temperature | 0°C ~ 50°C; at < 70% R.H |
| Storage Temperature | -20°C to 60°C; < 80% R.H |
| Altitude | 6561.7 Feet (2000 M) |
| Max. Wire Length | 3.5 Meter When Fully Stretched |
| Low Battery Indicator | Red LED lighting |
| Power Supply | 9V DC Battery |
| Dimension (WxLxH) | 100 x 224 x 40 mm |
