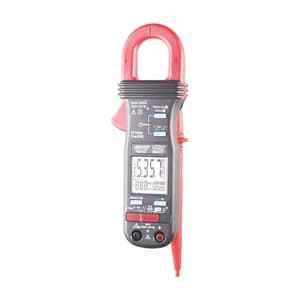

Kusam-Meco 3 Phase 9999 Counts TRMS Power Clamp On Meter With kWHr Recording Function & PC Interface, KM 357

• Selectable Power parameters of W, VAR &
• VA with Total Power Factor in dual-display.
• AutoVA™ (Auto Selection on ACV, DCV or ACA functions)
• Backlight display
• kWHr Recording
• Display Hold & PEAK-rms HOLD
• PC-Comm computer interface capabilities
• Display: 6000 Counts LCD Display (Voltage Function) / 9999 Counts LCD Display (Power, Ohm & Hz functions) / 4000 Counts LCD Display (ACA Clamp-On Function)
• Update Rate: Power function: 2 per second nominal Voltage, ACA clamp-on & Ohm functions: 2 per second nominal Hz function: 1 per second nominal
• Relative Humidity: Maximum relative humidity is 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
• Temperature Coefficient: Nominal 0.15 x (Specified Accuracy) / °C @ (0°C - 18°C or 28°C-40°C), or otherwise specified

Safety:

• Meets IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed., IEC61010-2-032, EN61010-2-032, UL61010B-2-032
• E. M. C.: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-7, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Total Accuracy = Specified Accuracy + 50 digits / Performance above 3V/m is not specified
• Measurement Category: CAT III 600Volts AC & DC
• Pollution degree: 2
• Overload Protections: ACA Clamp-on jaws : AC 600A rms continuous + & COM terminals(all functions): 600VDC/VAC rms / Ohm Function : 5.5mA Typical

Package Content:

• Clamp-On Meter
• Test leads (pair)
• Batteries installed
• User’s Manual
• Carrying Case
