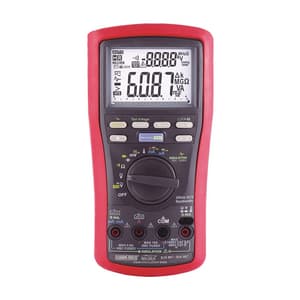

Kusam-Meco 3-5/6 Digits 6000 Counts TRMS Digital Insulation Multimeter (25 Functions 51 Ranges), KM 887
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 635 g
- DC Basic Accuracy: 0.2%
- Update Rate: 5 Per Second Nominal
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹32,686 (Incl. of all taxes)
₹27,700 + ₹4,986 GST (18%)
MRP was MRP ₹34,625
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- VFD V & Hz readings
- LCD Backlight Display
- Record MAX/MIN regular readings
- Display Hold Function
- Dual Display +Hz readings
- Relative zero mode
- Auto Power Off
- LOCK-Test mode for Insulation Resistance
- BeepJack™ audible & visible input warning
- High-resolution 60.00mV & 60.00 ranges
- Relative Humidity - Maximum relative humidity is 90% for temperatures up to 28ºC decreasing linearly to 50% relative humidity at 50ºC
- Temperature Coefficient - Nominal 0.1 x (specified accuracy) / °C @(-10ºC~18ºC or 28ºC~50ºC), or otherwise specified
Insulation Resistance @ 1mA Test Current:
- 50V output Voltage: 25mA
- 100V output Voltage: 45mA
- 250V output Voltage: 85mA
- 500V output Voltage: 170mA
- 1000V output Voltage: 440mA
- Tester can perform at least 950 Insulation Tests with new alkaline batteries at room temperature.
- These are standard tests of 1000V into 1M ω with a duty cycle of 5 seconds on and 25 seconds off.
Safety:
- Double insulation per IEC / UL / EN61010-1 Ed. 3.0, IEC / UL / EN61010-2-030 Ed. 1.0, IEC / UL / EN61010-2-033 Ed. 1.0, IEC / UL / EN61010-031 Ed. 1.1 & the corresponding CAN / CSA-C22.2 regulations to Measurement CAT III 1000V AC & DC & CAT IV 600V AC & DC
- Compliance to IEC / EN61557:2007: (per CE requirements, not certified by UL or ETL): IEC / EN61557-1 & IEC / EN61557-2.
- Overload Protection: Insulation Resistance, mA & mA : 0.4A/1KV, IR 30kA, F Fuse, or better / A : 11A/1KV, IR 20kA, F Fuse or better / V: 1100Vrms / mV, W & Others: 1000 Vrms
- Transient Protection: 8KV(1.2/50mS Surge)
- E.M.C: Meets EN61326-1:2013 In an RF field of 3V/m: Total Accuracy = Specified Accuracy + 25 digits. Performance above 3V/m is not specified
Package Content:
- Multimeter
- Test probe pair
- BRP21S2-C Remote probe
- Alligator clip pair
- Holster
- User manual
- Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| DC Basic Accuracy | 0.2% |
|---|---|
| Sensing | AC, True RMS |
| Display | 3-5/6 Digits 6000 Counts Backlight LCD Display |
| Polarity | Automatic |
| Update Rate | 5 Per Second Nominal |
| 61 Segments Bar Graph | 40 Per Second Max |
| Operating Temperature | -10oC ~ 50oC |
| Pollution Degree | 2 |
| IP Rating | IP40 |
| Storage Temperature | -20oC ~ 60oC, < 80% R.H. (With Battery Removed) |
| Altitude | Operating Below 2000m |
| Low Battery | 4.6V |
| APO Timing | Idle For 20 Minutes |
| APO Consumption | 20μA Typical |
| Power Supply | 4 x AA Alkaline Batteries |
| Power Consumption | 6.5mA Typical Except The Followings: VFD ACV +Hz: 8mA |
| Dimension (LxWxH) | 208 x 103 x 64.5 mm |
