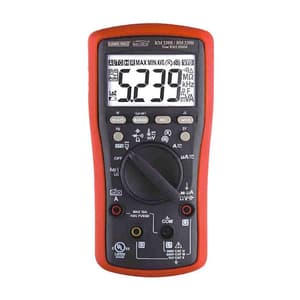

Kusam-Meco 3-5/6 Digits / 6000 Counts TRMS Digital Multimeter With VFD, EF-Detection, 3 Phase Rotation-R & M, KM 239R
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 334 g
- Update Rate: 5 Per Second Nominal
- Operating Temperature: -10°C to 45°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,989 (Incl. of all taxes)
₹10,160 + ₹1,829 GST (18%)
MRP was MRP ₹12,700
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Double insulation per IEC/UL/EN61010-1 Ed. 3.0, IEC/UL/EN61010-2-030 Ed. 1.0, IEC/UL/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 & the corresponding CAN/CSA-C22.2 regulations to measurement CAT II 1000V, CAT III 600V and CAT IV 300V AC & DC.
Features & Benefits:
- Display : 3-5/6 digits 6000 counts
- LCD display
- DC mA function for HVAC / R flame sensor application.
- Auto V(LoZ), VFD V & Hz Function
- EF-Detection (NCV)
- Paper White Backlight Display
- Auto Power Off
- Auto-ranging MAX/MIN/AVG record
- Diode & Continuity Test
- Display Hold; Relative zero mode.
- Low Battery Indication
- Temperature Function
- BeepLit Continuity, Features Audible Beep & Visible Backlight Effects
- Beep-Jack Input warning against improper A-terminal plug-in
- Auto-ranging Relative Zero Mode
- 3-phase rotation-R(Regular-sensitivity mode) for supply systems(probe-contact)
- 3-phase rotation-M (Hi-sensitivity mode) for Motors(probe-contact)
- Rugged Fire retarded casing
Safety:
- E. M. C: Meets EN61326-1:2013
- In an RF field of 3V/m: Ohm function - Total Accuracy = Specified Accuracy + 15 digits
- Other function ranges: Total Accuracy = Specified Accuracy
- Performance above 3V/m is not specified.
- Transient Protection: 6.0kV lightning surge (1.2/50µs)
- Terminals (to COM) Measurement Category V/ mAµA / A /L3: CAT II 1000 Volts, CAT III 600V and CAT IV 300 Volts AC & DC
- Overload Protection (A): 11A / 1000V DC/AC rms, IR 20kA, F fuse or better
- Overload Protection (V, Auto V & L3): 1100V DC/AC rms
- Overload Protection (mV, Ω & Others): 1000V DC/AC rms
Package Content:
- Test leads pair
- Alligator clip set
- Batteries included
- User's Manual
- BKP60 banana plug type-K Thermocouple & Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| IP Rating | IP40 |
|---|---|
| Update Rate | 5 Per Second Nominal |
| Operating Temperature | -10°C to 45°C |
| Altitude | Operating Below 2000 m |
| Pollution Degree | 2 |
| Drop | 1 Meter |
| Low Battery | Below approx. 2.5 V |
| Power Consumption | Typical 3.2 mA |
| APO Consumption | Typical 10 mA |
| APO Timing | Idle for 30 minutes |
| Power Supply | 1.5V AAA Battery x 2 |
| Sensing | TRUE RMS AC Conversion |
| Storage Temperature | -20 °c To 60 °c, < 80% R.h. (With Battery Removed From Meter) |
| Temperature Coefficient | Nominal 0.15 X (Specified Accuracy) /°c @ (-10°c~18°c Or 28°c~45°c), Or Otherwise Specified |
| Relative Humidity | Maximum Relative Humidity 80% For Temperature Upto 31°c Decreasing Linearly To 50% Relative Humidity At 45°c |
| Dimension (LxWxH) | 161 X 80 X 50 mm |
