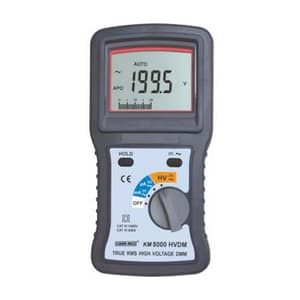

Kusam-Meco 4000 Counts True RMS High Voltage Digital Multimeter, KM 8000 HVDM
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 507 g
- Overload Protection: 3100V DC Voltage / 2100V AC Voltage
- Voltage Measurement: 3000V DC / 2000V AC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹32,002 (Incl. of all taxes)
₹27,120 + ₹4,882 GST (18%)
MRP was MRP ₹33,900
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- True RMS measurement
- For measuring solar, PV systems
- 4000 count LCD
- Auto-ranging
- Bar-graph indication
- Data hold function.
- AC / DC mA/IIA measurement
- Low battery indication
- Auto power off
- Low power consumption
- Rugged and compact
Safety:
- IEC/EN61010-1, CAT III 1000V IEC/EN61010-1, CAT IV 600V EN61326-1
Technical Data:
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(0.5%rdg + 5dgts) |
| 4 V | 1 mV | |
| 40 V | 10 mV | |
| 400 V | 100 mV | |
| 1000V for CE | 1 V | |
| 3000V for general | 1 V | ±(1.0%rdg + 3dgts) |
| Range | Resolution | Accuracy |
| 400 mV | 0.1 mV | ±(5%rdg + 5dgts) |
| 4 V | 1 mV | |
| 40 V | 10 mV | |
| 400 V | 100 mV | |
| 1000V for CE | 1 V | |
| 2000V for general | 1 V |
Package Content:
- User Manual
- Test Leads
- Alligator Clips
- Hand Strap
- Batteries
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Overload Protection | 3100V DC Voltage / 2100V AC Voltage |
|---|---|
| Voltage Measurement | 3000V DC / 2000V AC |
| Display Count | 4000 |
| Display Type | LCD |
| Power Supply | 1.5V (AA) X 2 Alkaline Battery |
| Dimension (LxWxD) | 221 X 110 X 57 mm |
