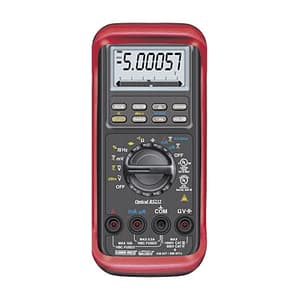

Kusam-Meco 5-4/5 Digit / 500000 Counts Hand Held TRMS Digital Multimeter With PC Interface, KM 857
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 500 g
- Operating Temperature: 0°C to 45°C
- Pollution degree: 2
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹18,078 (Incl. of all taxes)
₹15,320 + ₹2,758 GST (18%)
MRP was MRP ₹19,150
Save 20%
3 Business Days
1
90303100
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- 500,000 counts high-resolution stable reading mode.
- 20kHz Bandwidth voltage function
- Record MAX, MIN and MAX-MIN readings.
- Crest (Instantaneous Peak Hold) MAX, MIN, MAX- MIN readings.
- Relative zero mode.
- dBm readings.
- % 4 -20mA loop current readings.
- High noise rejection filtered Line Level Frequency mode.
- Line Level Frequency with 4 Trigger Levels.
- HBC Fuse Protection
Features & Benefits:
- DC Voltage Basic Accuracy 0.03%
- Fully Autoranging
- Backlighted display.
- Fast Data Measurement 5/sec
- Data Hold function
- Diode Test & Duty Cycle
- Audible & Visible input warning
- Auto Power Off
Safety:
- Double insulation per IEC/UL/EN61010-1Ed.3.0, IEC / EN61010-2-030 Ed. 1.0, IEC / EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 and CAN/ CSA-C22.2 No. 61010-1-12 Ed. 3.0 to CAT III 1000V AC & DC & CAT IV 600V AC & DC.
- Transient Protection: 8 kV (1.2/50µs surge)
- Terminals (to Com) Measurement Category: V/A/mAµA - Category III 1000V AC & V DC & CAT IV 600V AC & V DC
- Overload Protection: µA & mA: 0.44A/1000V DC/AC rms, IR10kA, F Fuse A: 11A/1000V DC/AC rms, IR 20kA, F Fuse V: 1100V DC/AC rms mV, W & Others :1000V DC/AC rms
- EMC: Meets EN61326-1:2006(EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Capacitance function is not specified Other function ranges: Total Accuracy = Specified Accuracy +100 digits Performance above 3V/m is not specified
Package Content:
- Test Leads pair
- Holster
- Battery installed
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Operating Temperature | 0°C to 45°C |
|---|---|
| Pollution degree | 2 |
| Low Battery | Below approx. 7V |
| Sensing | AC, AC+DC True RMS; Frequency Bandwidth 20kHz (V) & 1kHz (A) |
| Altitude | Operating below 2000 m |
| Power Consumption | 6mA typical |
| APO Timing | Idle for 17 minutes |
| Power Supply | 1 Alkaline 9V battery |
| IP Rating | IP40 |
| Polarity | Automatic |
| APO Consumption | 55 μA |
| Display | 4-4/5 digits 50,000 counts. Selectable stable mode 5-4/5 digits 500,000 counts for DC voltage, 6 digits 999,999 counts for Hz |
| Update Rate | 4-4/5 digits fast mode: 5 per second nominal; 5-4/5 digits stable mode: 1.25 per second nominal; 42 Segments Bar graph: 60 per second max |
| Relative Humidity | Maximum relative humidity 80% for temperature upto 30°C decreasing linearly to 50% relative humidity at 45°C |
| Storage Temperature | -20°C to 60°C, 80% R.H. (With battery removed) |
| Temperature Coefficient | Nominal 0.1 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified |
| Dimension (LxWxH) | 186 x 87 x 35.5 mm / 198 x 97 x 55 mm with holster |
| Weight | 390 gm or 500 gm with Holster |
