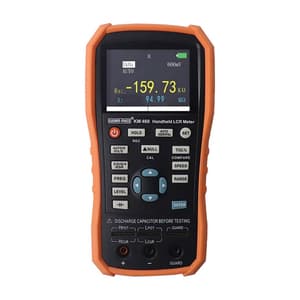

kusam-Meco 5 Digit Handheld Digital LCR Meter, KM 460
Roll over the image to zoom in
Key Features
- Product Type: LCR Meter
- Display Digits: 5 Digits (Main & Auxiliary Parameter)
- Measuring Range: 0 - 2000H (L), 0 - 20mF (C), 0 - 20MOhm (R)
- Testing Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹22,420 (Incl. of all taxes)
₹19,000 + ₹3,420 GST (18%)
MRP was MRP ₹23,750
Save 20%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
This LCR Meter handheld LCR is a portable hand-held measuring instrument for measuring the parameters of inductors, capacitors, resistors and other components. It is small with a 5V lithium battery, suitable for tabletype application. This LCR Meter provides a resolution of four and a half digits for main parameters and a resolution of 0.0001 for secondary parameter. Its highest measurement frequency is 100kHz, and can measure the level of 0.6Vrms, and 0.3Vrms. Its automatic range can display the results in the fast, medium, or slow mode. It can automatically select the appropriate measurement parameters according to the characteristics of the component.
Its measurement accuracy can reach 0.2%. It combines the convenience of a handheld instrument and good performance of a table-type one. The operation is simple, and users can see the test frequency, parameters, and speed by pressing the corresponding key; it also has the recording mode to take readings; the convenient operation of open and short circuit correction function helps improve the measurement accuracy. The buzzer, automatic power off and languages can be set on the configuration menu. The standard instrument is equipped with remote communication function. The remote control and data acquisition are achieved by connecting it to the PC through Mini-USB cable for interface with customer's software.
Its measurement accuracy can reach 0.2%. It combines the convenience of a handheld instrument and good performance of a table-type one. The operation is simple, and users can see the test frequency, parameters, and speed by pressing the corresponding key; it also has the recording mode to take readings; the convenient operation of open and short circuit correction function helps improve the measurement accuracy. The buzzer, automatic power off and languages can be set on the configuration menu. The standard instrument is equipped with remote communication function. The remote control and data acquisition are achieved by connecting it to the PC through Mini-USB cable for interface with customer's software.
Features:
- Errors measurement is use for comparing the percent errors between components and nominal value, meanwhile display.
- Backlight luminance can be adjustable
- USB device and auto power off can be set
- Electrolytic capacitor mode
Package Content:
- LCR meter
- Mini-USB cable
- Power adapter
- Short-circuit plate
- Plug made of red and black rubber
- Lithium battery with large capacity
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digits | 5 Digits (Main & Auxiliary Parameter) |
|---|---|
| Measuring Range | 0 - 2000H (L), 0 - 20mF (C), 0 - 20MOhm (R) |
| Testing Frequency | 100Hz, 120Hz, 1KHz, 10KHz, 40KHz, 100KHz |
| Measuring Speed | 1 time/s (Slow), 2 times/s (Moderate), 4 times/s (Fast) |
| Basic Accuracy | 0.3% |
| Electric Level | 0.6Vrms |
| Main Parameter | L / C / R / Z |
| Auxiliary Parameter | X / D / Q / ESR |
| Display | 2.8 inches TET LCD |
| Filtering Function | Limit scope 1%~50% can be set; 1%, 5%, 10%, 20% are the fix points |
| Calibration Function | Open Circuit Calibration, Short Circuit Calibration |
