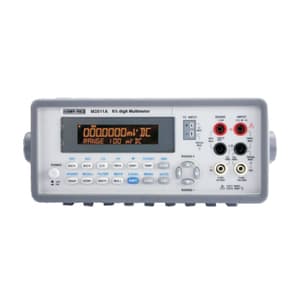

Kusam-Meco 6-1/2 Digits 200000 Counts TRMS Digital Multimeter (10 Functions 33 Ranges), M3511A

• Delivers 50 triggered RDGS/sec via remote interface
• Period & Diode measurement
• Thermocouple Temperature & RTD measurements.
• Full math functions - dB, dBm, MX+B, ratio, %, Max/Min, null & limits.
• Optional multipoint scanner card - For internal scanning,
• Through Microsoft Office Word & Excel for remotely storing and recalling the measured values.
• Calibration Certificate Available.
• Continuity measurement for resistance.
• Through M3500 AP software for simulating the real operation on PC.
• Rack-mounted capability.
• Dual displays & Dual measurements.
• Capacitance Measurements
• Wide range current measurement (max.10A)
• RTD Measurement
• Self Test & Manual Calibration
• High Accuracy - DC Voltage: < 0.012% of reading, AC Voltage: ± 0.12% of reading
• High Speed: Sampling rate 10K Readings/Sec
• High Capacity of Internal Data Memory - It can store up to 2000 readings in data memory
• Full-Featured Operations - There are 11 measurements and 8 math Functions.
• Temperature Measurements - The built-in function supports two measurement methods: Thermocouples and RTDs. For thermocouples, it supports up to 7 types of sensors E, J, K, N, R, S & T.
• Vibration: MIL-PRF-28800F, 3.84.2. Vibration, Sinusoidal Class 1.2
• Shock: Mil-prf-28800f, 4.5.5.4 Mechanical. ± (%of reading + %of range,23 °C ± 5 °C) at 6 ½ digits with 2-hour warm-up.
• The specifications are for 2-hour warm-up condition, 10 PLC & they are relative to calibration standards.
• Model - M3511A doesn’t provide the selection of the range 3A.
• Null Function Must be used when the 2WW is selected.
• Measurement over 20% at all ranges is allowable except the ranges 750 ACV, 1000DCV & 3A / 10A.
• Range 750V is limited to 100KHz.
• Measurement accuracy excluded the error of test leads.
• Bandwidth: 3Hz. Specifications are for sine wave input >5% of the range. For <50KHz & inputs within 1% to 5% of the range, the error of 0.3% of the range must be added. For inputs within 50KHz to 100KHz, 0.35% of the range must be added.

Safety:

• IEC61010-1 / EN61010-1 / UL61010-1
• E.M.C.: EN61326-2006. EN61326-2-1:2006
• Pollution Degree: 2

Package Content:

• One power line cord
• One USB cable
• Standard Test Leads
• One Software CD
• User’s manual
