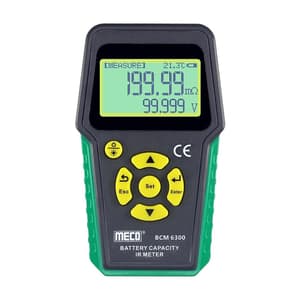

Meco 19.999m Ohms - 199.99 Ohms Battery Capacity (IR) Meter, BCM 6300
Roll over the image to zoom in
Key Features
- Product Type: Battery Meter
- Weight: 490 g
- Resistance Range: 19.999m Ohm - 199.99 Ohm
- Voltage Measurement: ±0.000V to 99.999V AC
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹12,702 (Incl. of all taxes)
₹10,764 + ₹1,938 GST (18%)
MRP was MRP ₹12,663
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
- Right Device to know the TRUE-LIFE of Battery Capacity (Internal Resistance / Voltage & Temperature) Simultaneously Measured
- 4 Wire Kelvin Measurement
- On-line Testing without shutting down battery
- Auto Ranging
- Large LCD with backlight
- Built-in Comparator Function
- Rates Condition as PASS, WARNING or FAIL
- Compact and Lightweight
- Auto Power Off
- Data Hold and Low Battery Indication
- Battery Types Tested: Lithium Batteries, Nickel-Cadmium Batteries, Lead-Acid Batteries, Alkline Batteries or other types of Batteries etc.
- Comparator Settings: Resistance High and Low Limits and Voltage Throughold Point
Technical Data:
| Resistance |
|
| Measurement Condition |
|
| Voltage |
|
| Ambient Temperature Measurment |
|
Package Content:
- Battery Capacity (IR) Meter
- 1 Pair x Kelvin Four Wire Test Lead
- 1 Pair x Kelvin Four Wire Pin Type Test Lead
- 1 Pair x Kelvin Four Wire Big Alligator Test Lead
- 1x Test Jig for Alkaline Batteries x 1 pc
- 1x Batteries (installed) and User Manual
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Resistance Range | 19.999m Ohm - 199.99 Ohm |
|---|---|
| Voltage Measurement | ±0.000V to 99.999V AC |
| Ambient Temperature Measurment | -10°C to 50°C |
| Measurment Speed | 3 Times / Second |
| Open Circuit Terminal Voltage (AC) | Less than 2.5V |
| Comparator Settings | Resistance High & Low Limits & Voltage Throughold Point |
| Number of Comparator Settings | 30 Sets |
| Operating Environment | 0°C to 40°C (32°F to 104° F1, 80% RH or Less, Non-Condensing) |
| Storage Environment | -10°C to 50°C (10°F to 122° F1, 80% RH or Less, Non-Condensing) |
| Max. Input Voltage | 100V DC |
| Power Supply | 6x 1.5V AA Batteries |
| Battery Life | 9 Hours |
| Dimensions (mm) | 175 x 40 x 105 mm |
