Meco Battery Capacity Tester (Upto 500AH & 40V), 6363

Shop all Meco

SKU: ME.EL.BA.00004

Model: 6363

Roll over the image to zoom in

Visit Meco Store

Key Features

  • Product Type: Battery Meter
  • Weight: 490 g
  • Voltage of Battery: 4V, 40V
  • Capacity: 0 to 500Ah
See all product information

ToolBuy Benefits

₹97,140 (Incl. of all taxes)

₹82,322 + ₹14,818 GST (18%)

MRP was MRP ₹96,849

Save 15%

5 Business Days

1

90303390

Download Product LeafletNot available
Download Meco CatalogueNot available

Highlights

Battery Capacity (Impedence) Tester Upto 500 Ah 40 V DC with PC Communication with software, Comparator Function, Measures Online Imepdence / Resitance and Open Cicuit Voltage for All Type of Batteries

Features & Benefits:

  • Memory & Read Function
  • Right Device to know the TRUE -LIFE of Battery Capacity (Resistive / Voltage) Simultaneously Measure
  • On - Line Testing without shutting down battery
  • Built - in Comparator Function
  • Rates Conditions as PASS, WARNING or FAIL
  • Datalogging Memory Function
  • Compact and lightweight
  • RS-232 Interface & Software
  • Auto Power Off
  • Power Supply Six 1.5V AA Size Batteries
  • Battery Life 7 Hours
  • Dimensions / Weight 250 x 100 x 45 mm (approx.) / 490gms Including Batteries (approx.)

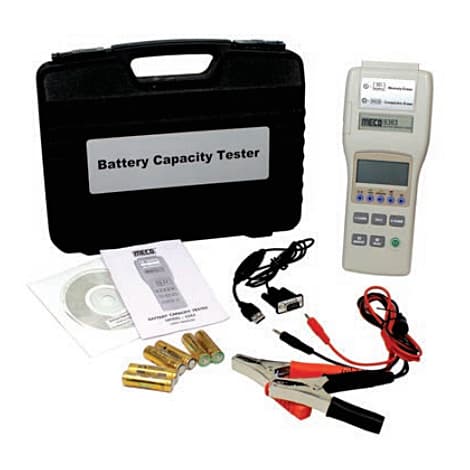

Accessories:

  • Instruction Manual x 1
  • Batteries (installed)
  • Test Probe (Alligator Clips) x 1
  • USB Cable x 1
  • Software Disk x 1
  • Carrying Bag x 1


Specifications:


Battey Types Tested

  • UPS Batteries
  • Compact storage batteries
  • Backup battery
  • Battery pack
  • Biobattery
  • Car battery
  • CMOS battery
  • Electric vehicle battery
  • Flow battery
  • Inverter battery
  • Lantern battery
  • Nanobatteries
  • Photoflash battery
  • Thin film rechargeable lithium battery
  • Traction battery
  • Watch battery
  • Water-activated battery
  • Wet cell
  • Alkali and lead-acid batteries
  • Motor Cycle (6V/12V : 2 ~ 20Ah), Car (12V : 21 ~ 80Ah),
  • Truck (12V : 83 ~ 160Ah)
  • Household Appliances [(9V : upto 625 mAh), (AA : upto 2850 mAh), (AAA : upto 1250 mAh),
    (C : upto 8350 mAh), (D : upto 20500 mAh)],
  • Lithium Notebook Battery : [(14.8V : 3600 ~ 4800 mAh),(11.1V : 3600 ~ 7200 mAh)],
  • Lithium Digital Camera Battery : (3.7V : 650 ~ 1350 mAh),
  • Lithium Cordless Phone Battery : (3.7V : 800 ~ 1250 mAh)
  • All types of Lead Acid batteries


Resistance

  • Range : 40mΩ, 400mΩ, 4Ω, 40Ω
  • Resolution : 10μΩ, 100μΩ, 1mΩ, 10mΩ
  • Accuracy : ±(1% Reading + 8 Digits) on all Ranges


Voltage

  • Measurement : 4V, 40V
  • Resolution : 1mV, 10mV
  • Accuracy : ±(0.1% Reading + 6 Digits)


Battery Capacity

  • 0 to 500Ah

Measurement Condition

  • Current : 25mA, 2.5mA, 250mA, 25mA
  • Frequency : 1KHz± 10%


Open Circuit Terminal Voltage

  • <3.5VPP


Data Logging

  • Manual Data Logging 500 Sets
  • Continuous Data Logging 9600 Sets


Comparator Settings

  • Resistance High and Low Limits and Voltage Throughold Point


Number of Comparator Settings

  • 99 Sets


Operating Environment

  • 0°C to 40°C (32°F to 104°F), 80% RH or Less, Non-Condensing


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Meco Battery Capacity Tester (Upto 500AH & 40V), 6363
Voltage of Battery4V, 40V
Capacity0 to 500Ah
Battery Life7 Hours
Resistance40mV, 400mV, 4V, 40V
Operating Environment0°C to 40°C (32°F to 104°F), 80% RH or Less
Measurement25mA, 2.5mA, 250mA, 25mA
Dimension250 x 100 x 45 mm (approx.)
