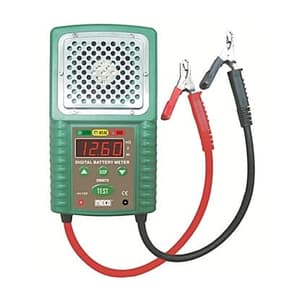

Meco Digital Battery Meter (Upto 200 AH & 12V), DBM72
Roll over the image to zoom in
Key Features
- Product Type: Battery Meter
- Weight: 900 g
- Voltage of Battery: 6 / 12V DC
- Capacity: 40 - 200Ah
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹7,158 (Incl. of all taxes)
₹6,066 + ₹1,092 GST (18%)
MRP was MRP ₹7,137
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Digital Battery Meter 40 - 200 Ah 6/ 12V DC with internal DC Voltmeter upto 0 - 19.99 V DC and Internal Resistive Load with Built-in Timer and charging test, Indicates Battery Condition as Good / Weak / Bad and auto Data Hold Functions
Features & Benefits:
- 80A Discharge Current Load Test for 6V/12V (40Ah - 200Ah) Lead Acid and Li-ion Battery
- Built-In 10 Seconds Timer to Auto Cut-Off Load After Test
- Temperature Rise is Controlled (for Circuit Protection)
- Two Way Internal Resistance Measurement (Load Test Method & 4-Wires Method)
- LED Indication of Battery Condition : GOOD (Green), WEAK (Yellow) & BAD (Red)
- Auto Data Hold
Specifications:
| Specifications | Range |
| Battery Type | Lead Acid & Li-ion Battery |
| Battery Voltage | 6V / 12V DC |
| Battery Capacity | 40 Ah ~ 200Ah |
| Battery Load Test Current | 80A |
| Load Test Time Control Timer | <10 Seconds |
| Battery Drop Voltage in Load Test | Yes |
| Temperature Control in Load Test | Yes |
| Battery Internal Resistance by Load Test | 0 ~ 99mV |
| Battery Internal Resistance by 4 - Wires Test | 0 ~ 99mV |
| Battery Conclusion by Load Test or by 4 - Wires Test | GOOD / WEAK / BAD |
| Reverse Polarity Protection | Yes |
| Detects and Display Bad Cell | Yes |
| Missing Lead Detection | Yes |
| Overload Protection of Input Voltage | Yes |
| Safety Standard | CAT III 600V |
| Cable Length | 300mm (approx.) |
| Dimension | 205 x 115 x 70mm (approx.) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Voltage of Battery | 6 / 12V DC |
|---|---|
| Capacity | 40 - 200Ah |
| Voltmeter | Upto 0 - 19.99 VDC |
| Resistance | 0 ~ 99mV |
| Cable Length | 300mm (approx.) |
| Standard | CAT III 600V |
| Dimension | 205 x 115 x 70mm (approx.) |
