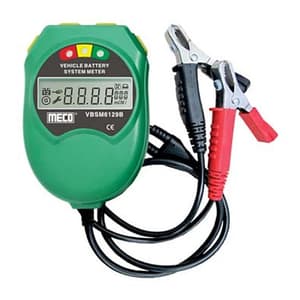

Meco Vehicle Battery System Meter, VBSM6129B
Roll over the image to zoom in
Key Features
- Product Type: Battery Meter
- Weight: 300 g
- Battery Voltage: 12V
- CCA / EN Range: 100 ~ 1700
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,935 (Incl. of all taxes)
₹3,335 + ₹600 GST (18%)
MRP was MRP ₹3,924
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Vehicle Battery System Meter Suitable For 12V DC Batteries, Measures Battery State (CCA / IR / DC V) CCA Range: 100 - 1700, Engine Activation Load Test and Charging Test
Features & Benefits:
- Key Parameters Measured for Diagnosis of Vehicle Battery & Electrical System
- LED Indication of Battery Condition : GOOD (Green), WEAK (Yellow) & BAD (Red)
- Overload Protection to ensure Operator Safety
- Loose Lead Detection
- Reverse Polarity Protection
- Internal Unit Conversion CCA / IEC / EN / DIN
Specifications:
| Specifications | Range |
| Battery Test | Yes |
| Engine Activation Load Test | 6V / 12V DC |
| Charging System Test | 40 Ah ~ 200Ah |
| CCA Range | 100 ~ 1700 |
| IEC Range | 100 ~ 1000 |
| EN Range | 100 ~ 1700 |
| DIN Range | 100 ~ 1000 |
| Displays Battery Internal Resistance | Ohms |
| Displays Battery Voltage | Volts |
| Battery Recharge Indication | Display Symbol |
| Reverse Polarity Protection | Yes |
| Detects and Display Bad Cell | Yes |
| Missing Lead Detection | Yes |
| Overload Protection of Input Voltage | Yes |
| Safety Standard | CAT III 600V |
| Cable Length | 850 mm (approx.) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Battery Voltage | 12V |
|---|---|
| CCA / EN Range | 100 ~ 1700 |
| IEC Range | 100 ~ 1000 |
| DIN Range | 100 ~ 1000 |
| Cable Length | 850mm (approx.) |
| Standard | CAT III 600V |
| Unit Conversion | CCA / IEC / EN / DIN |
