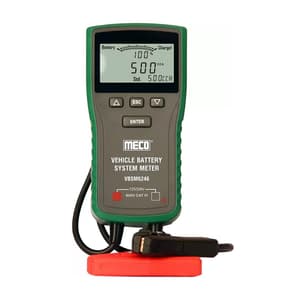

Meco Vehicle Battery System Meter, VBSM6246
Roll over the image to zoom in
Key Features
- Product Type: Battery Meter
- Weight: 400 g
- Cable Length: 700 mm
- Unit Conversion: CCA / IEC / EN / DIN
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,775 (Incl. of all taxes)
₹4,047 + ₹728 GST (18%)
MRP was MRP ₹4,761
Save 15%
5 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Vehicle Battery System Meter Suitable For 12V and 24 V DC Batteries, Measures Battery State (CCA / IR / DC V) CCA Range: 100 - 1700, Engine Activation Load Test and Charging Test
Features & Benefits:
- Key Parameters Measured for Diagnosis of Vehicle Battery & Electrical System
- Display of Battery Condition [Good / Ok / Pay Attention / Replace]
- Overload Protection to ensure Operator Safety
- Loose Lead Detection
- Reverse Polarity Protection
- Internal Unit Conversion CCA / IEC / EN / DIN
- Battery Recharge Indicator, Detects and Display Bad Cell
Specifications:
| Specifications | Range |
| JIS Range | Refer Table in Instruction Manual |
| CCA Range | 100 ~ 1700 |
| IEC Range | 100 ~ 1000 |
| EN Range | 100 ~ 1700 |
| DIN Range | 100 ~ 1000 |
| Displays Battery Internal Resistance | Ohms |
| Displays Battery Voltage | Volts |
| Displays Battery Condition | Good / OK / Pay Attention / Replace |
| Test 12V/24V Batteries | Yes |
| Safety Standard | CAT III 600V |
| Cable Length | 700mm (approx.) |
| Dimension | 180 x 90 x 32mm (approx.) |
| Safety Standard | CAT III 600V |
| Cable Length | 700 mm (approx.) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Cable Length | 700 mm |
|---|---|
| CCA Range | 100 ~1700 |
| Unit Conversion | CCA / IEC / EN / DIN |
| IEC Range | 100 ~1000 |
| DIN Range | 100 ~1000 |
| Standard | CAT III 600V |
| Dimensions | 180 x 90 x 32mm (approx.) |
