Meco 220V / 50Hz TRMS Powerguard, PG08T
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Weight: 150 g
- Accuracy: Class 1.0
- Power Consumption: Less than 1W
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,580 (Incl. of all taxes)
₹1,339 + ₹241 GST (18%)
MRP was MRP ₹1,575
Save 15%
Out of Stock
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights
Power Guard is a simple-to-use and easy-to-handle product that has many applications because of its portability and lightweight. Teaching, Demonstration & Testing of Electrical Energy Consumption of Household / Office Appliances like Refrigerator, Washing Machine, Microwave Oven, LED Lights, etc. It can be used in Houses, Offices, Shops, Schools, Laboratories etc.
Features:
- Three Pin Socket & Plug Suitable for Indian Socket
- Large LCD Display with Backlight
- Memory Retention (KWh, MIN, CU, CU/KWh, CO2)
- Counts CO2 generated by Electrical Equipment (0.555kg CO2 is generated by using 1 KWh Energy)
- Timer & Relay Function for Power ON / OFF the Load

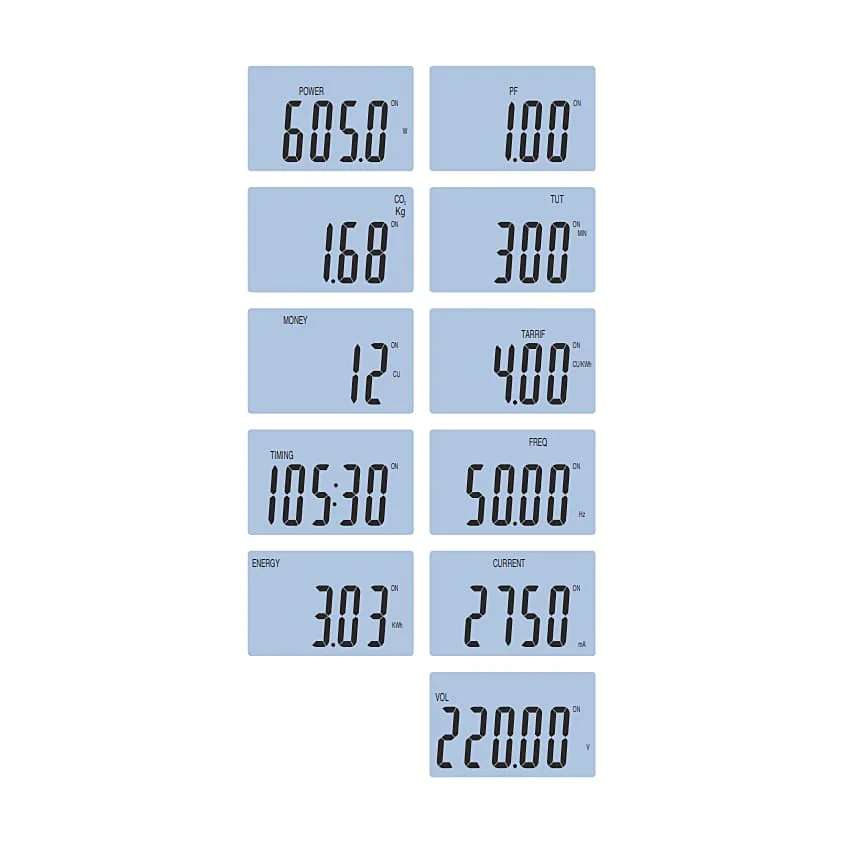

Measures:
- Power (W)
- Power Factor (PF)
- Carbon Emission (CO2 in Kg)
- Total Used Time (MIN)
- Money (CU)
- Tariff (CU/KWh)
- Timer (DHH:MM)
- Frequency (Hz)
- Energy (KWh)
- TRMS Current (mA)
- TRMS Voltage (V)
Technical Data:
| Functions (Annunciator) | Input Range | Display Format | Accuracy (% of FS) (FS = 2200W) |
| Power (W) | 0.2 ~ 1W | XXXX.X | < 10 |
| 1 ~ 10W | 5 | ||
| 10 ~ 2200W | 1 | ||
| Power Factor (PF) | For 0.2 ~ 5W | X.XX | NA |
| For 5 ~ 10W | NA | ||
| For 10 ~ 2000W | < 0.05 PF | ||
| CO2 (Kg) | CO2 (Kg) | XXX.XX | NA |
| Total Usage Time (MIN) | Minutes | XXXXX | |
| Money (CU) | CU | XXXXX | |
| Tariff (CU/KWh) | CU/KWh | XX.XX | |
| Timer | 000:01 ~ 923:59 (DHH:MM) | XXX:XX | |
| Frequency (Hz) | 45 - 55Hz | XX.XX | ±0.05Hz |
| Energy (KWh) | For 5 ~ 2200W | XXX.XX | 1 |
| TRMS Current (mA) | 0.02 ~ 100mA | XXXXX | NA |
| 100mA ~ 10A | 3 | ||
| TRMS Voltage (V) | 195 ~ 265V | XXX.XX | 0.5 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Accuracy | Class 1.0 |
|---|---|
| Power Consumption | Less than 1W |
| Input | 220V, 50Hz, 10A (Max.) |
| Working Temperature | -25°C to +55°C |
| Dimension | 128 x 67 x 57 mm |
