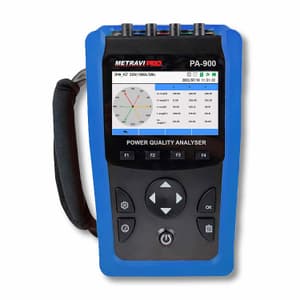

Metravi 3-Phase Power Quality & Harmonics Analyser, PRO PA-900
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Weight: 850 g
- Frequency Range: 45Hz - 65Hz
- Memory and Storage: 32GB TF card
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,62,486 (Incl. of all taxes)
₹1,37,700 + ₹24,786 GST (18%)
MRP was MRP ₹2,02,500
Save 32%
5 Business Days
1
90308990
Download Metravi CatalogueNot available
Highlights

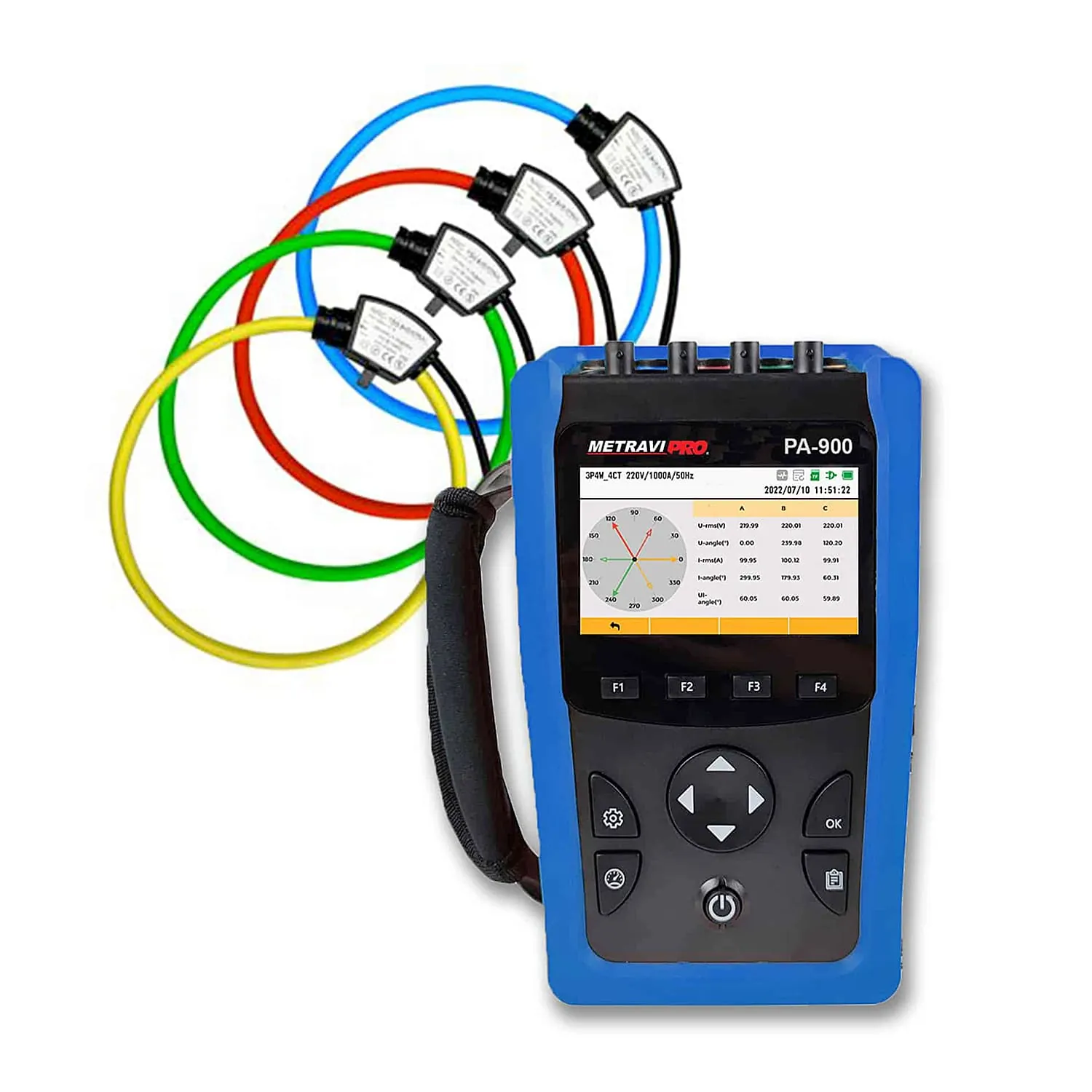

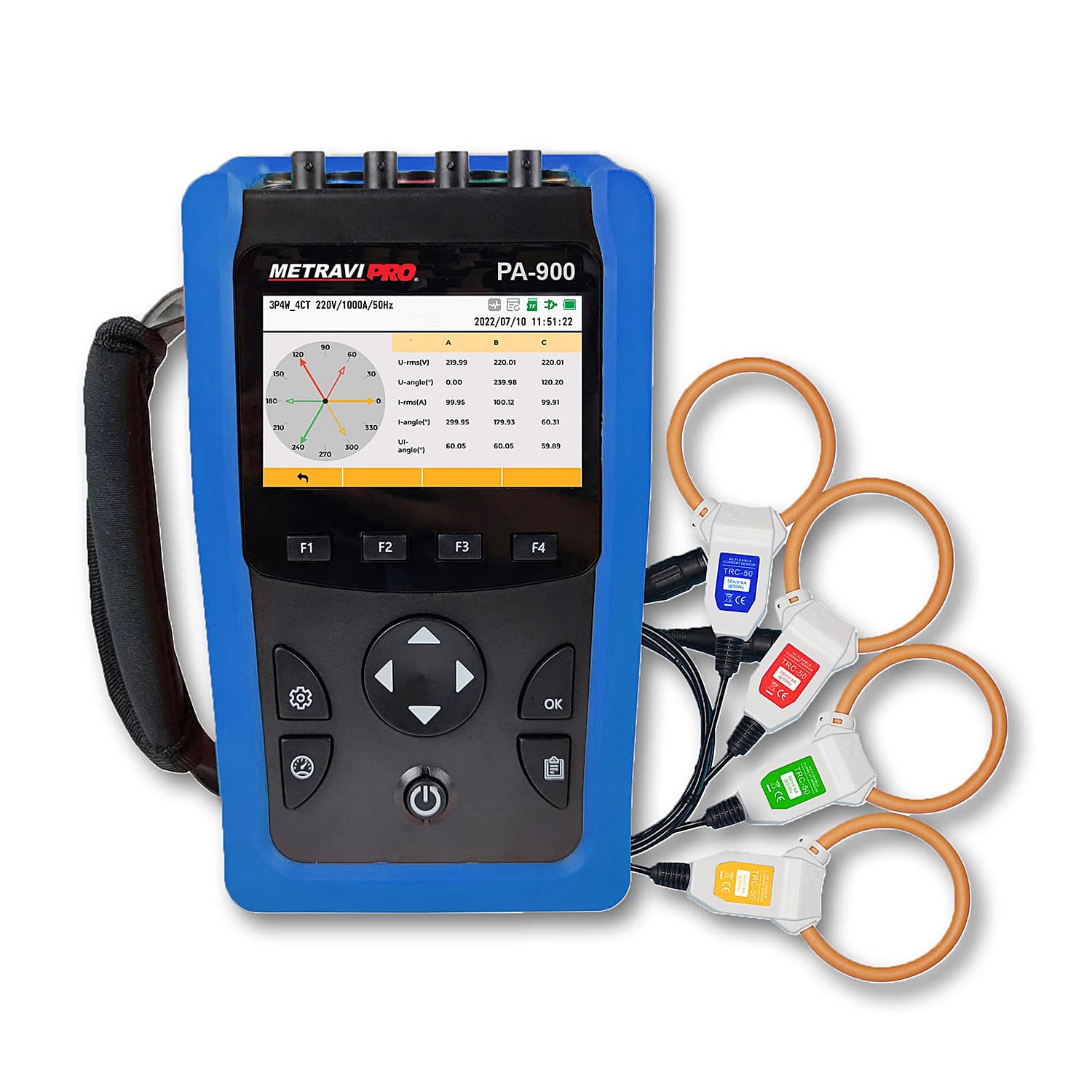

The Metravi PRO PA-900 3-Phase Power Quality & Harmonics Analyser, when externally connected with open type Rogowski coils or voltage type CTs, is capable of non-destructive wire testing with simplified test steps. It helps save construction costs, and is more convenient for engineering tests as well as aids in the inspection and maintenance of distribution systems.
Features:
- Supports single-phase and three-phase systems.
- It can measure multiple electrical parameters such as Current, Voltage, Power Factor, Power, Energy and Power Quality parameters including Harmonic, Unbalance degree, Voltage Swell and Voltage Dip, etc.
- In addition to the measurement function, the PA-900 is equipped with various records, such as waveform records and programmable interval measurement value records. To store and record data, it is internally embedded 32 GB memory card.
- With standard configuration of RJ45 Ethernet communication interface, through standard Modbus TCP protocol, it is compatible with various configuration systems and can transmit the electrical parameters collected by the front end to the system data center in real time.
Technical Data:
| Frequency Accuracy |
±0.001 |
|---|---|
| Phase Voltage |
0V to 600V (TRMS) |
| Phase Voltage Accuracy |
±0.2% |
| Line Voltage |
0V to 600V (TRMS) |
| Line Voltage Accuracy |
±0.2% |
| Current |
0A to 6000A (TRMS) |
| Current Accuracy |
±0.2% |
| Reactive Power |
Phase ABC and Total (Accuracy ±1.0%) |
| Power Factor |
-1 to +1 (Accuracy ±0.005%) |
| Active Energy |
999.9GWh, 9999.9MWh, Phase ABC and Total (Accuracy ±0.5%) |
| Reactive Energy |
999.9GWhr, 9999.9MWhr, Phase ABC and Total (Accuracy ±1.0%) |
| Phase Angle |
Phase ABC |
| Displacement Power Factor |
Each Phase, Total |
| Other Functions |
Phasor Diagram, Sag, Swell |
| DC Voltage Accuracy |
±0.20% |

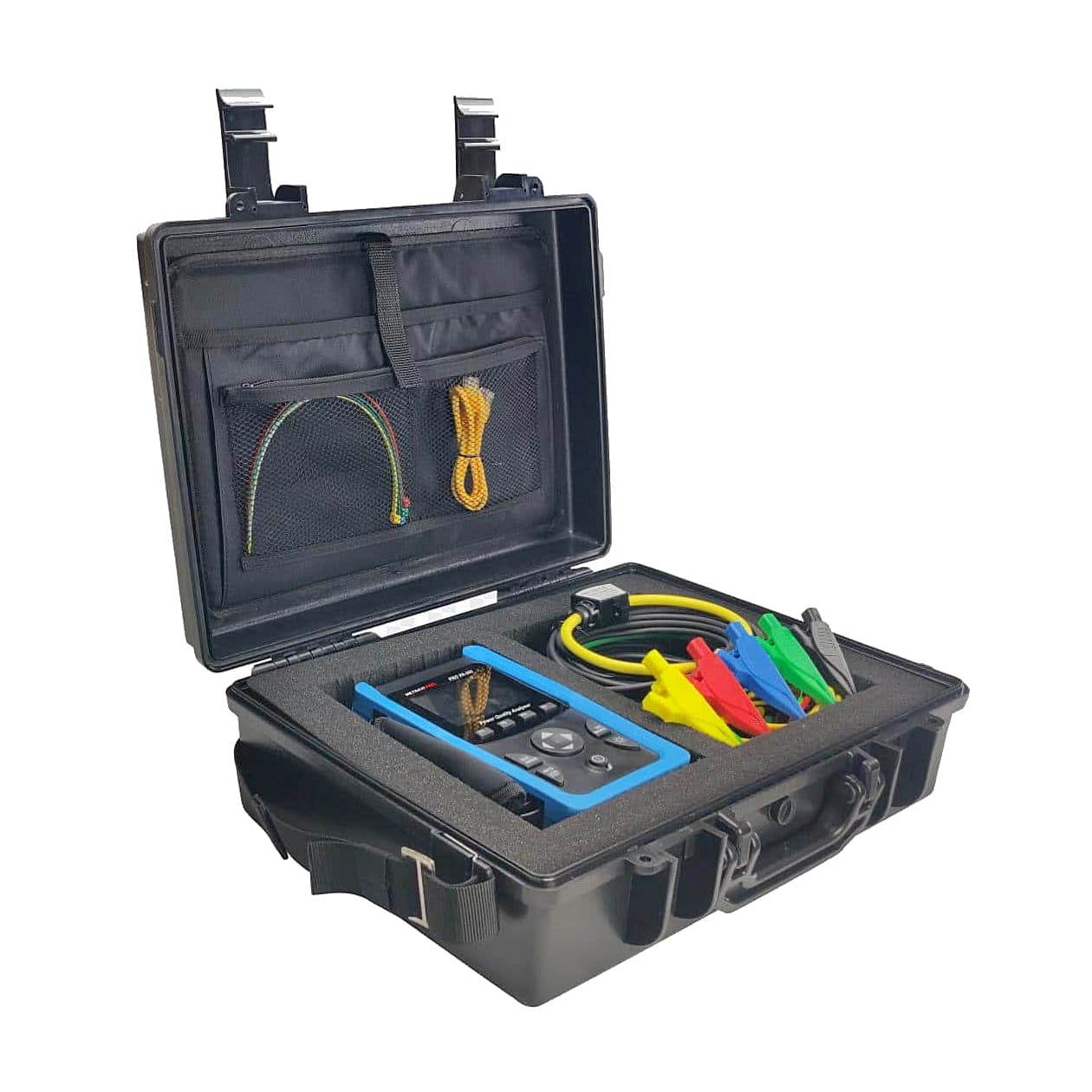

Package Content:
- Analyser
- 1m USB cable,
- 4 x Magnetic voltage sensing probes,
- 4 x Voltage sensing leads with crocodile clamps,
- Power Adaptor,
- USB Pendrive

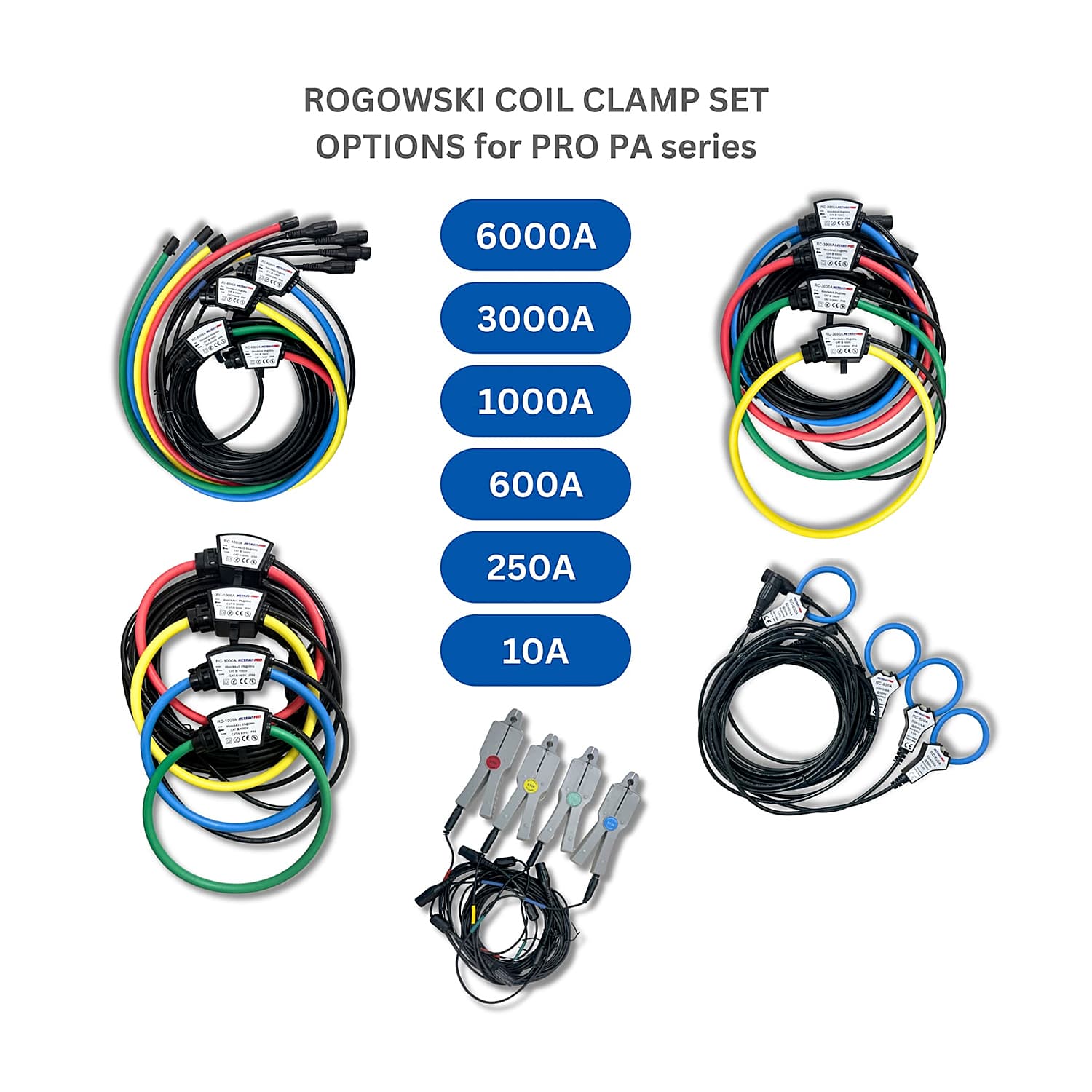

- Set of 4 Current Clamps (Optional Accessories)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency Range | 45Hz - 65Hz |
|---|---|
| Battery Type | Li-Ion Rechargeable |
| Memory and Storage | 32GB TF card |
| Power Source | Battery Operated, 5V Adaptor |
| Max/Min/Avg/Dif | Max/Min |
| Energy Parameters | cosØ, DPF, PF, VA, VaH, Var, VarH, W, Wh |
| Number of Channels | 4 x Current / 4 x Voltage |
| Three-phase Unbalance | Available |
| Peak Value | Available |
| Harmonic Wave | 0 to 51 Times |
| Total Harmonic Distortion | 0-51 Times |

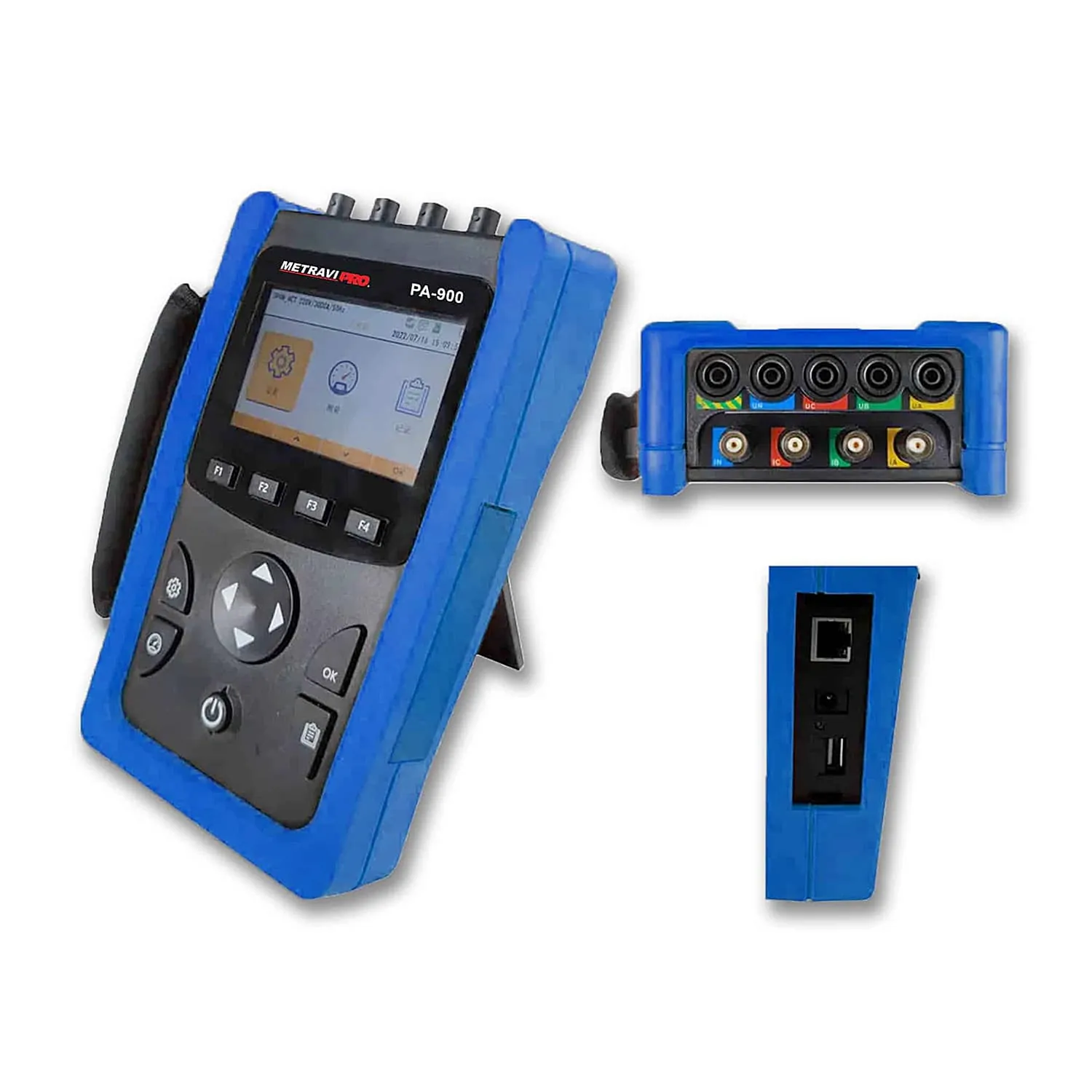

| Communication Interface | Ethernet Port, RJ45-Modbus-TCP |
| Data Logging | Record 27 Parameters Simultaneously |
| Colour | Blue-Black |
| Certifications | CAT III 600V, IP30 |
| Display Size | 3.97 Inches (480x800px IPS Display) |
| Dimensions (mm) | 215x120x60 mm |
