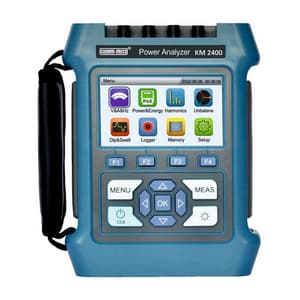

Kusam-Meco 3-Phase Power Analyzer With Touch Screen, KM 2400
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Weight: 1 kg
- Display Size: 480 x 272 Pixel
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,19,416 (Incl. of all taxes)
₹1,01,200 + ₹18,216 GST (18%)
MRP was MRP ₹1,26,500
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
- Economical, compact and simple to use
- Provide all necessary measurement function
- 4.3 inch color LCD touch screen
- 32GB Micro SD card for storage
- Lan and USB host communication
Technical Data:
| Voltage / ACV (Vrms, vpk) | Range | 5 - 600Vrms |
| Accuracy (L1 / A, L2 / B, L3 / C) | ±0.2% ±2 Counts | |
| PT Ratio | 1 to 10000, Variable | |
| Current / ACA (Irms, Ipk) | Range | 1500A, with SY-1500A current probe |
| Accuracy | ±0.2% ±5 Counts | |
| Optional Current Probe | ST08-5A, CTC0080-50A, CTC0130-100A, PY-3000A, SY-6000A | |
| CT Ratio | 1 to 10000, Variable | |
| Harmonic | Number | 1 - 51th |
| Accuracy (%f) | ±0.1% ± n x 0.1% | |
| THD | ±2.5% | |
| Logger | Interval | 1s to 60 Minutes |
| Memory | 32GB Micro SD Card |
Power:
- Active power (P)
- Reactive power(Q)
- Apparent power(S)
- Power Factor (PF)
- cosØ (DPF)
Energy:
- Active energy (EP)
- Reactive entergy (EQ)
- Apparent energy (ES)
3 Phase Multi-Power System:
- 1P / 2W(1P + Neutral 1P it No Neutral)
- 1P / 3W(1P Split Phase)
- 3P / 3W(3P delta)
- 3P / 4W (3P Wye).
Package Content:
- Power Analyzer
- 5 Voltage Test leads and Alligator Clips
- DC 5V/3A Power Adapter & Power Cord
- Soft Carry Bag
- User Manual & Software CD
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Size | 480 x 272 Pixel |
|---|---|
| Input | 4 Current Input Channels + 4 Voltage Input Channels |
| Data Refresh Rate | 1s |
| Language | English |
| Communication Port | USB Host, LAN |
| Safety Standard | IEC61010-1, CAT III 600V |
| Frequency | 42.5 - 57.5Hz (50Hz Nominal) / 51 - 69Hz (60Hz Nominal) |
| Power Supply | 2x 3.6V 186560 Li-ion Battery, 5100mAh / 6h or DC 5V/3A Adater |
| Transient Event | Dips / Swell |
| Dimensions (mm) | 158 x 200 x 47 mm |
