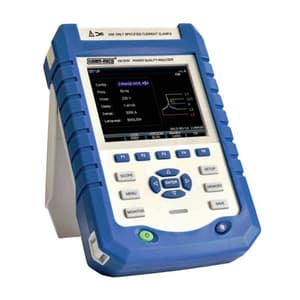

Kusam-Meco 50 - 60Hz Multifunction Power & Harmonics Analyzer, KM 2200

• Volts / Amps. / Hertz, Dips & Swell, Power / Energy, Unbalance, Monitor, Scope, Harmonic, Logger & Interruption functions.
• Inter Harmonics, Transient Voltage, Inrush Current, and Flicker functions not available in KM 2200
• Single-phase 2W / Single-phase 3W / 3-phase 3W / 3-phase 4W.
• Flash memory 128MB
• TF Card 8G Memory Card for long-term measuring data storage.
• Support USB port to connect to PC and analyze the data / Screenshots copied by U-disk.
• Support LAN port to make the remote control available and transfer the measuring data.
• IP: IP51, according IEC60529
• Safety: CAT III 1000V / CAT IV 600V.
• Standards: IEC61000-4-30 (2008) S class, EN50160 (2007)
• Electrical Safety complies with IEC61010-1
• Display: Run Chart, Bar Chart, Vector Graphic, Waveform, Event List, Readings.
• Interface (USB Host): Download file to PC by U disk for analyze with PC software
• Lan: For remote control of the Analyzer & measurement data transmission

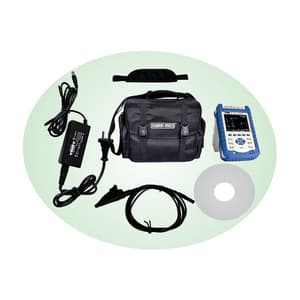

Package Content:

• Voltage Test Lead 2 meters long x 5
• Alligator Clips x 5
• External DC Adaptor
• Hang Strap
• Software CD
• User Manual


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
