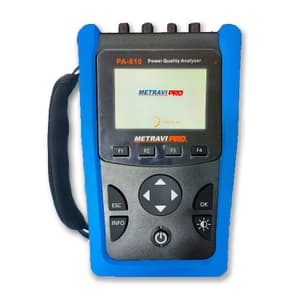

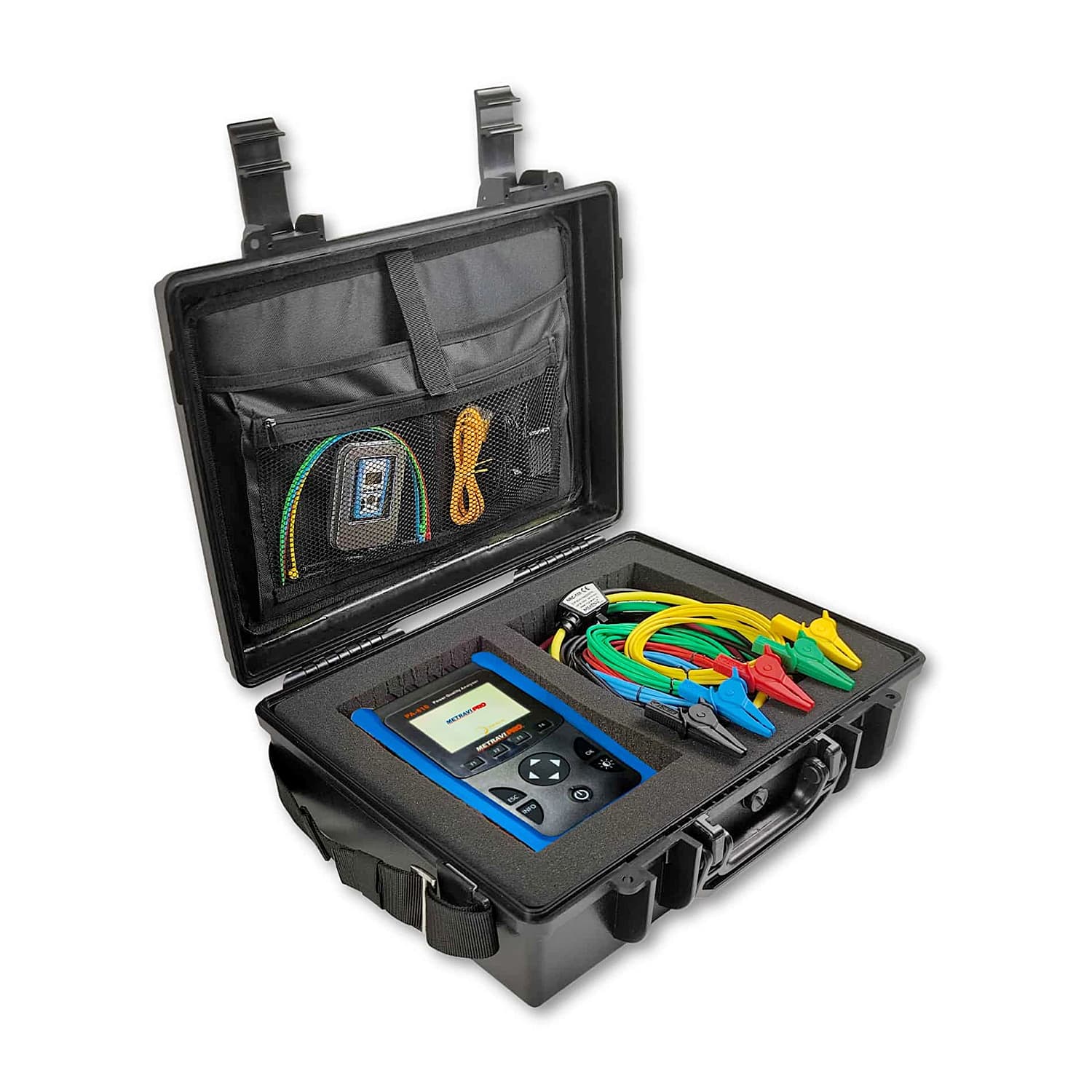

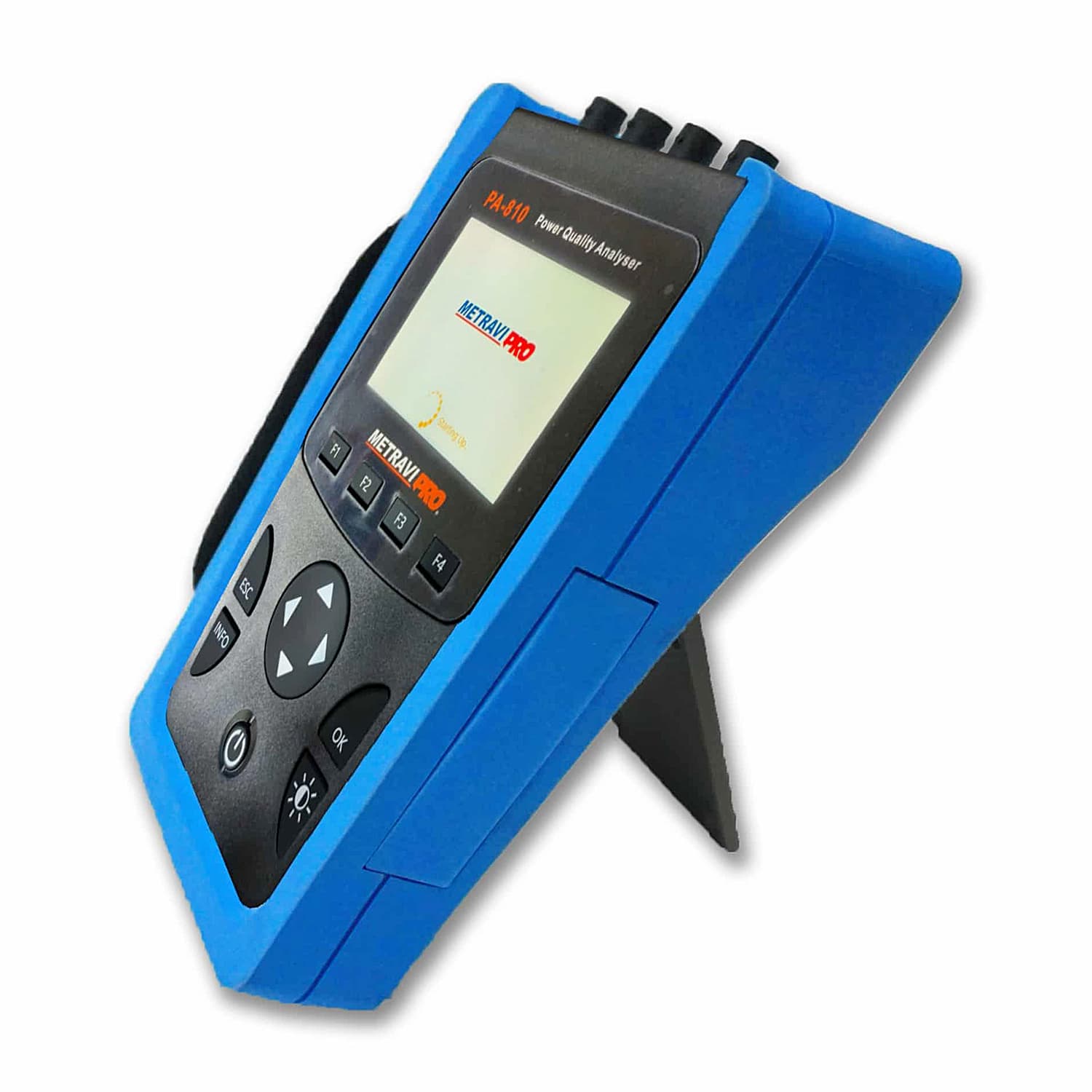

Metravi 45 - 65 Hz (Frequency) Portable Power Quality Analyser, PRO PA-810
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Frequency Range: 45 - 65 Hz
- Memory & Storage: 16GB Memory, Store About 2.5k Bytes Data Each Time
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹95,325 (Incl. of all taxes)
₹80,784 + ₹14,541 GST (18%)
MRP was MRP ₹1,18,800
Save 32%
5 Business Days
1
90308990
Download Metravi CatalogueNot available
Highlights

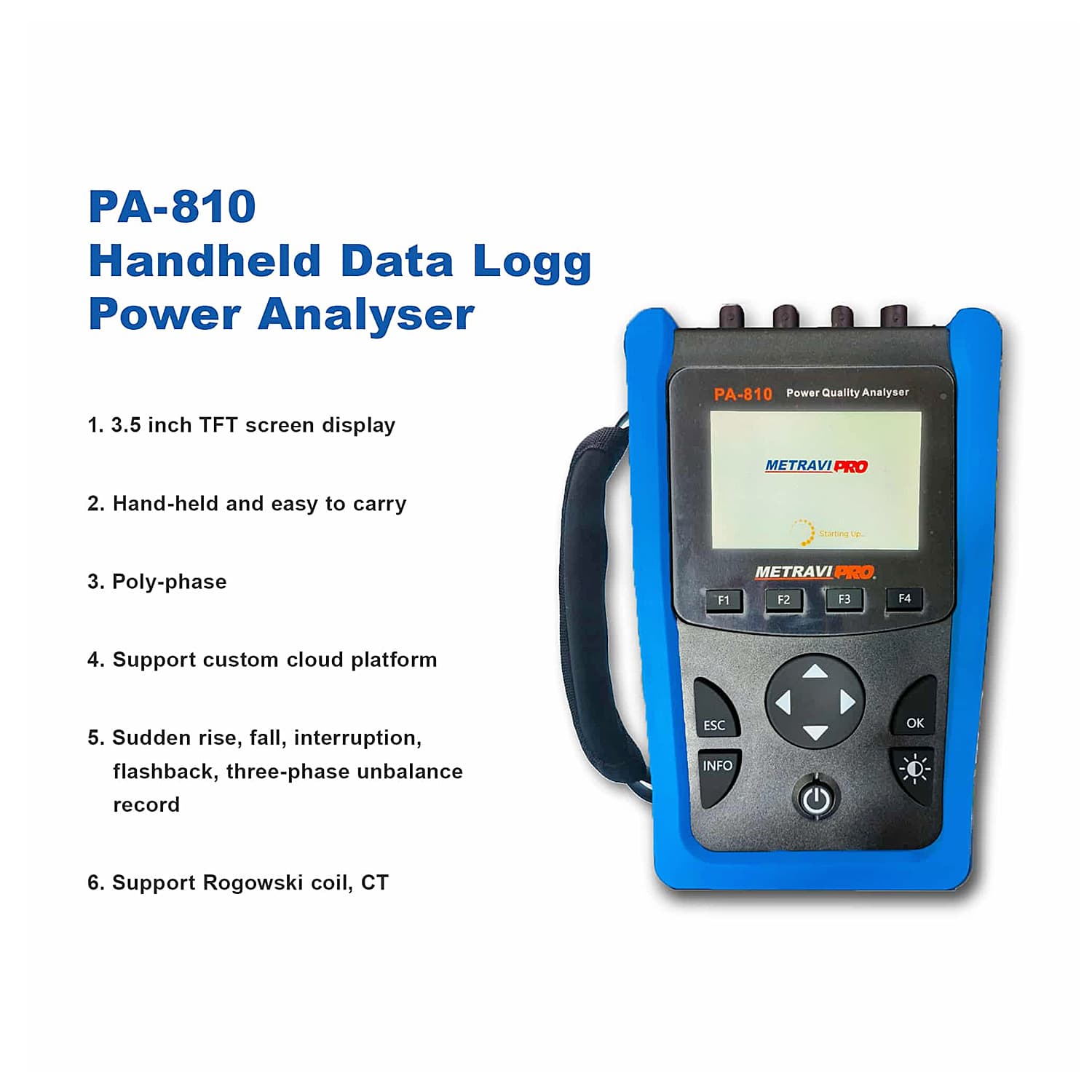

The Metravi PRO PA-810 Portable Power Quality Analyser measures currents and voltages and reports real-time RMS values for all 3-phases and neutral. In addition, it calculates power factor, real power, reactive power, and more. The Metravi PRO PA-810 Portable Power Quality Analyser is a high-precision energy measurement device designed for accurate power analysis and monitoring. With IEC62053-22 Class 0.5 accuracy, it ensures precise readings across diverse applications. Built to withstand extreme environments, it operates efficiently between -25°C to +55°C.

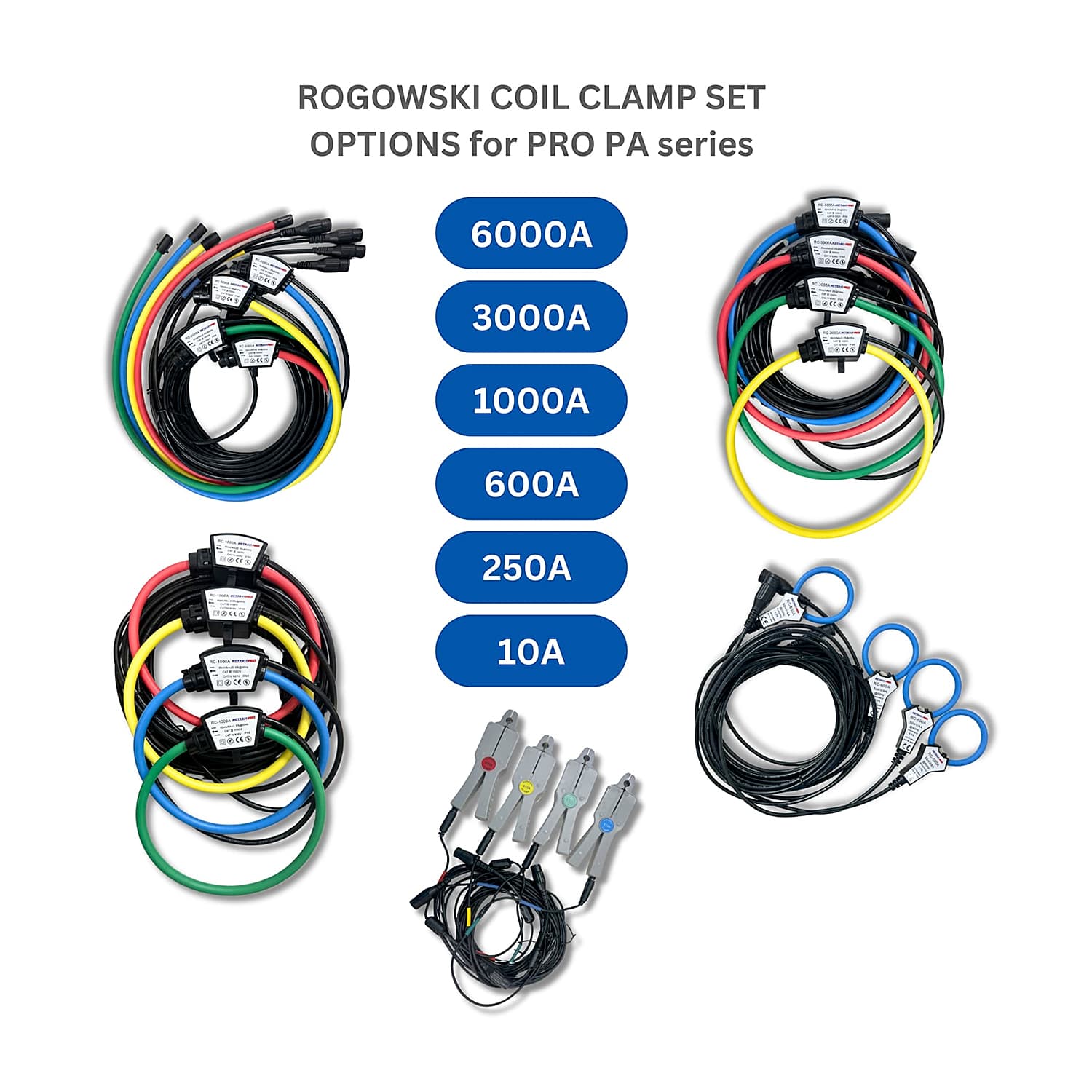

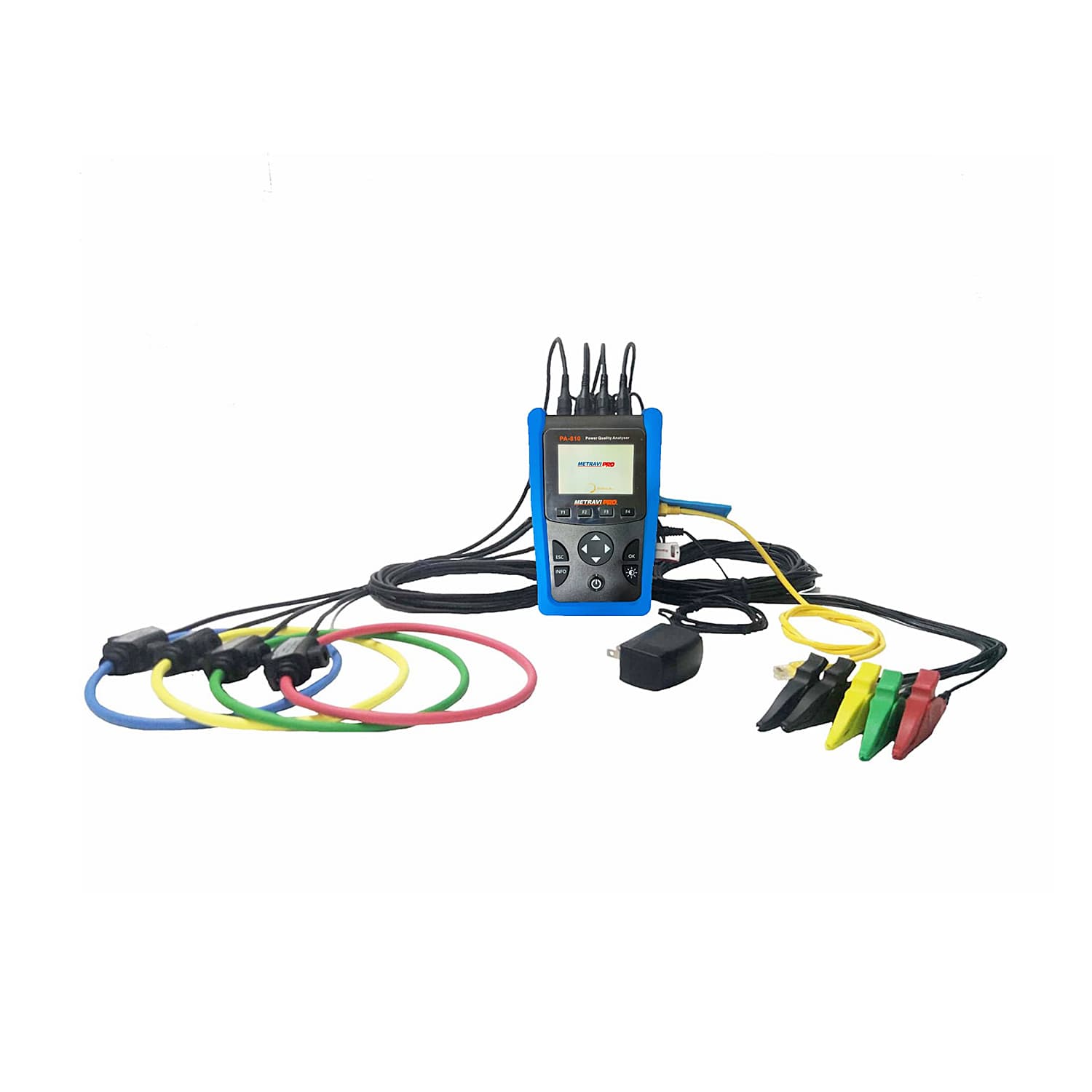

Featuring a 3.5-inch TFT display for clear data visualization and 16GB memory with USB-disk download, the Pro PA-810 simplifies data storage and transfer. Its multi-functional capabilities include selectable current ratings (600A/3KA/6KA), Rogowski coil support, 333mV CTs, and harmonic analysis up to the 51st order. For enhanced connectivity, the Pro PA-810 supports Modbus-TCP communication, optional 4G gateway, and cloud server access. Powered by a 2900mAh lithium battery or 5V DC, it is the perfect solution for efficient energy monitoring and management.
Features:
- Current: Per phase, neutral, and average of 3 phases
- Voltage: L-L, L-N, and average of 3 phases, N-PE
- Active Power: Total and per phase (signed)
- Reactive Power: Total and per phase (signed)
- Apparent Power: Total and per phase (signed)
- Power Factor (true): Total and per phase; 0.000 to 1 (signed)
- Angle: Voltage angle, Current angle
- Current Unbalance: Per phase, most unbalanced of 3 phases
- Voltage Unbalance: most unbalanced of 3 phases
- Data Logging: To MicroSD Card with user settable record interval of 1s to 9999s (default min)
- Data Capacity: 16GB memory, store about 2.5K Bytes data each time
Technical Data:
| Sampling Rate |
8k samples per second |
|---|---|
| LED Indication |
External Rogowski Coil. |
| IP Protection |
IP20 conforming to IEC 60629 |
| Input Type |
External CT(333mV only), External Rogowski coil |
| Poles |
1PH2W (L-N), 1PH2W(L-L), 1PH3W(L-L-N), 3PH4W 3PH3W |
| Supports Extra Sensors |
4pcs BNC terminal 320mV current clamp, 4pcs BNC terminal 333mV CT, 4pcs BNC terminal Rogowski coil |
| Current Clamp |
10A : 0.5% (100mA~10A) 1%(10mA~100mA), 5A : 0.5% (100mA~5A) 1%(10mA~100mA) |
| Frequency |
0.01% from 45 to 65Hz |
| Measurement Input Range |
1/225mV-707mV |
| Permissable Overload |
2V for 10s/hours |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency Range | 45 - 65 Hz |
|---|---|
| Memory & Storage | 16GB Memory, Store About 2.5k Bytes Data Each Time |
| Max/Min/Avg/Dif | Max/Min |
| Active Energy | IEC62053-22 (Class 0.5s) |
| Reactive Energy & Power | IEC62053-21 (Class 2) |
| Power Factor | ±0.005 |
| Harmonic Wave | 0 to 51 Times |
| Display | 3.5 inch Colour TFT |

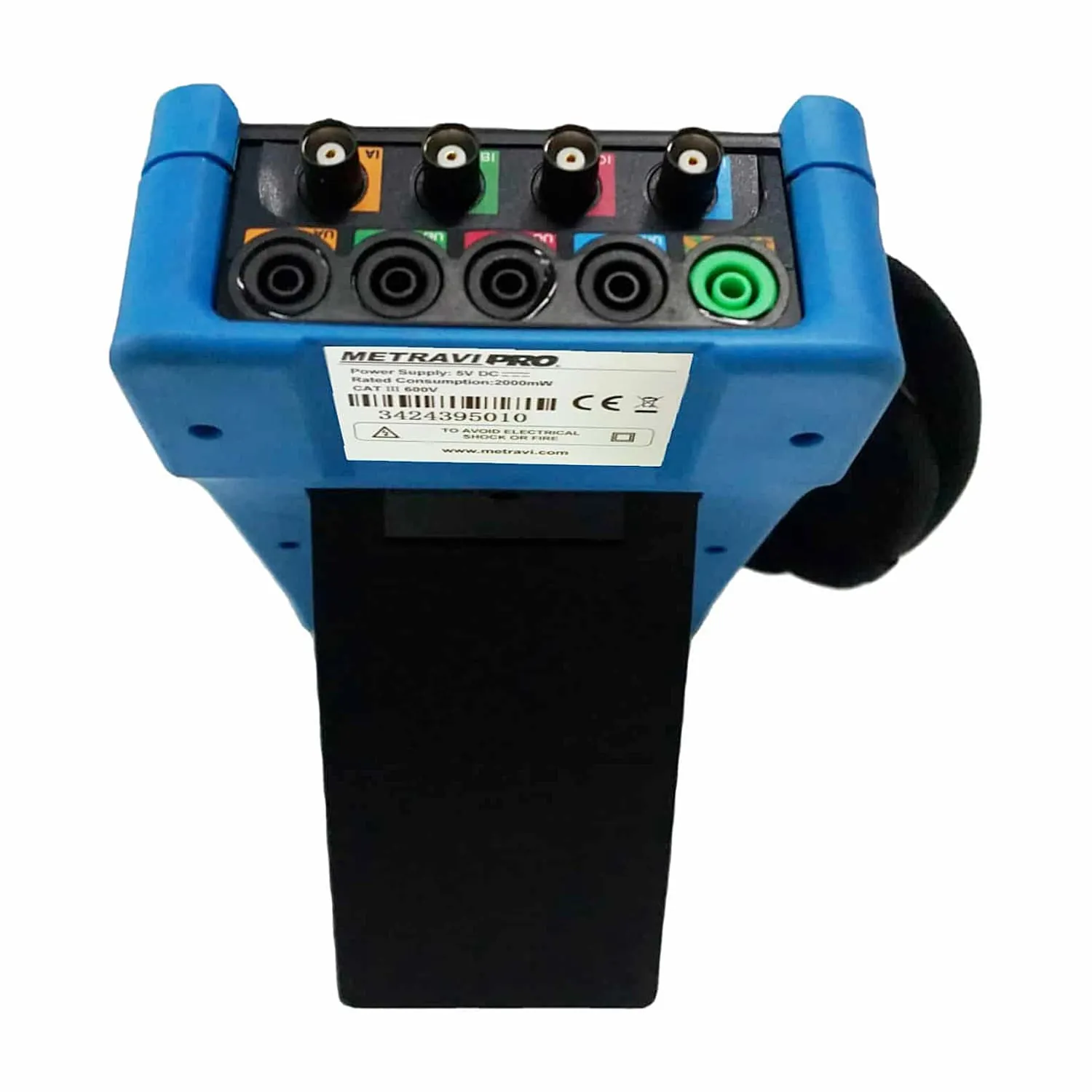

| Current Input | BNC connector |
| Voltage Input | Banana plug |
| Transmission Mode | RJ45 Port |
| Communication Protocol | MODBUS TCP |
| IP Address | Configurable (Default 192.168.1.5) |
| Port No. | 502 |
| Power Supply | Lithium Battery (5VDC) |
