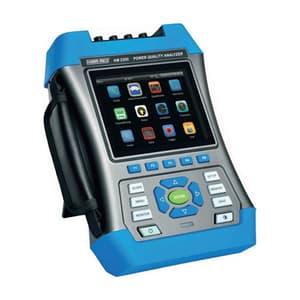

Kusam-Meco 400Hz Multifunction Power & Harmonics Analyzer, KM 2300
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Weight: 2 kg
- Frequency: 400Hz
- Working Temperature: 0°C ~ 45°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,13,472 (Incl. of all taxes)
₹3,50,400 + ₹63,072 GST (18%)
MRP was MRP ₹4,38,000
Save 20%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Kusam-Meco CatalogueNot available
Download Kusam-Meco CatalogueNot available
Highlights
Through the LAN interface, the PC can keep real-time remote communication with the Analyzer, operate the Analyzer and download measurement data. USB Host interface - Copy saved file to PC from a U disk, then analyze it with upper computer software. LAN interface: For remote control of the Analyzer and measurement data transmission. Drip and dustproof - IP53 degree.
The IP rating refers to the non-operation of the Product and Does not voltages in wet environments. Standard: IEC61000-4-30 A class (Measurement method, Measurement performance) / EN50160 (Power quality monitoring) / IEC61000-4-15 (Flicker) / IEC61000-4-7 (Harmonic) / IEEE1459 (Power measurement method)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
The IP rating refers to the non-operation of the Product and Does not voltages in wet environments. Standard: IEC61000-4-30 A class (Measurement method, Measurement performance) / EN50160 (Power quality monitoring) / IEC61000-4-15 (Flicker) / IEC61000-4-7 (Harmonic) / IEEE1459 (Power measurement method)
Features:
- Waveform real-time display (4 Voltages/4 Currents)
- Half-cycle RMS measurement (Voltage and Current)
- Intuitive operation / Transient capture
- Variety of optional current clamps
- Measure the DC component
- Measurement of harmonics can be up to 100 times.
- Vector, Trend, Bar Graph and events table display
- Active power, reactive power, apparent power and energy, shift power factor and true power factor.
- Three-phase unbalance (voltage and current).
- Flicker / Inrush Current
- Detect according to EN50160 or grid with user-defined limit.
- Detection and record of Dips & Swells, Voltage Rapid Change and Interruption.
- Detect according to EN50160 or grid with user-defined limit.
- Data storage and screenshots (can be replayed or output to a PC)
- Built-in 32G memory card.
- WIFI communication is supported.
Safety:
- Complied with IEC61010-1
- Safety Degree: 600V CAT IV 1000V CAT III
- Pollution Degree: 2
- Maximum voltage at voltage input: 600V CAT IV / 1000V CAT III
- Maximum voltage at current input: 10V

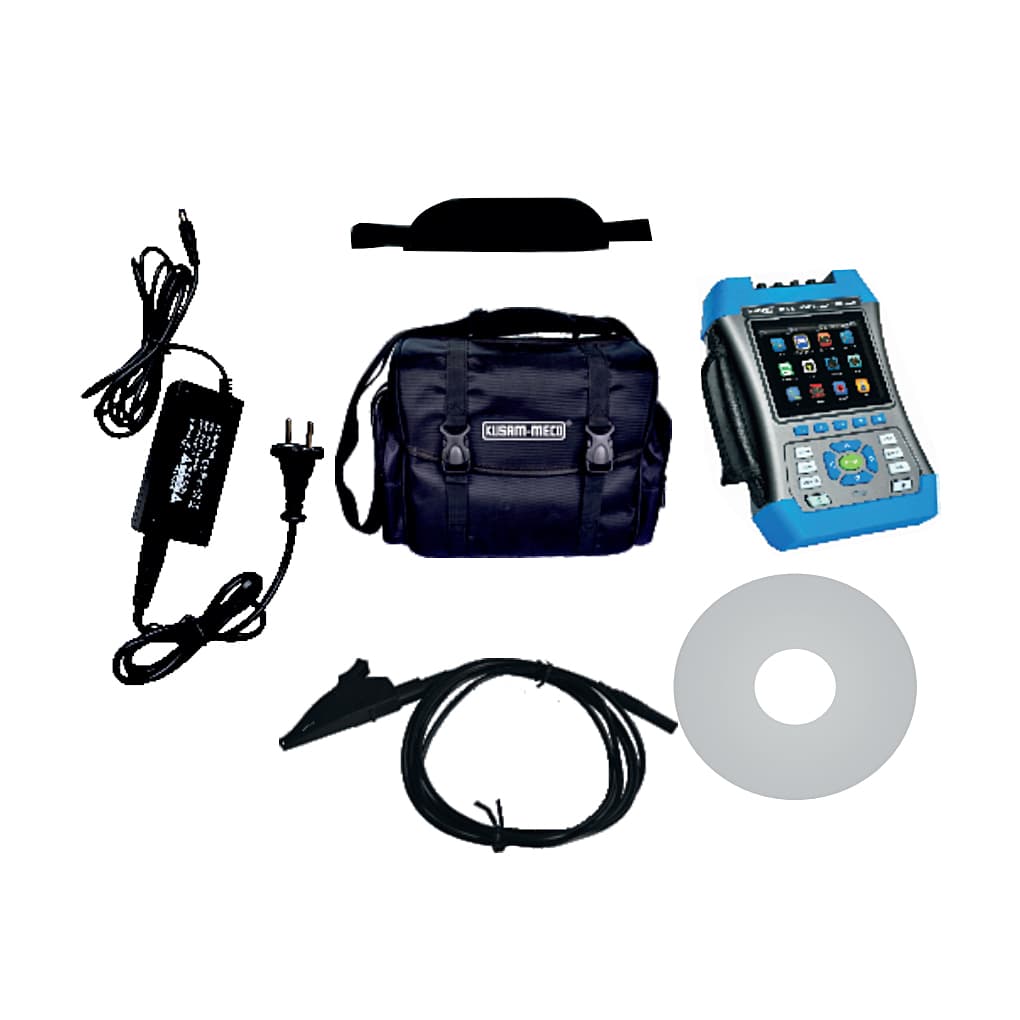

Package Content:
- Analyzer
- Voltage Test Leads x 5
- Alligator Clips x 5
- Power Adaptor
- Power cord
- Hang Strap
- Software CD
- User Manual
- Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Frequency | 400Hz |
|---|---|
| Working Temperature | 0°C ~ 45°C |
| Storage Temperature | -10°C ~ 45°C |
| Relative Humidity | 90% |
| Adapter Input | AC 100 - 240V |
| Adapter Output | DC 12V 2A |
| Battery | 7.4V 5200mAh (Lithium Battery) |
| Battery Working Time | > 8 Hours (Screen Brightness Is In Level 3) |
| Battery Charge Time | 6 Hours |
| Flash Memory | 1G (Micro SD - Standard 32G) |
| Display | 5.6 inch TFT LCD, 640 X 480 Adjustable Brightness |
| Dimension | 270 x 190 x 66 mm |
