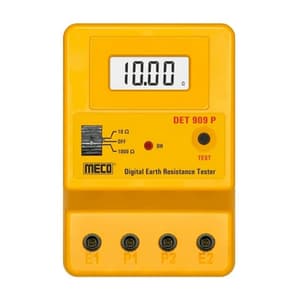

Meco 3-1/2 Digit / 1999 Counts Digital Earth Resistance Tester, DET 909 P
Roll over the image to zoom in
Key Features
- Product Type: Earth/Ground Resistance Tester
- Weight: 525 g
- Display Digit: 3-1/2 Digit
- Display Counts: 1999 Counts
- Earth Resistance Range: 0 - 10 Ohms & 0 - 1000 Ohms
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,675 (Incl. of all taxes)
₹3,114 + ₹561 GST (18%)
MRP was MRP ₹3,663
Save 15%
3 Business Days
1
90303390
Download Product LeafletNot available
Download Meco CatalogueNot available
Download Meco CatalogueNot available
Highlights

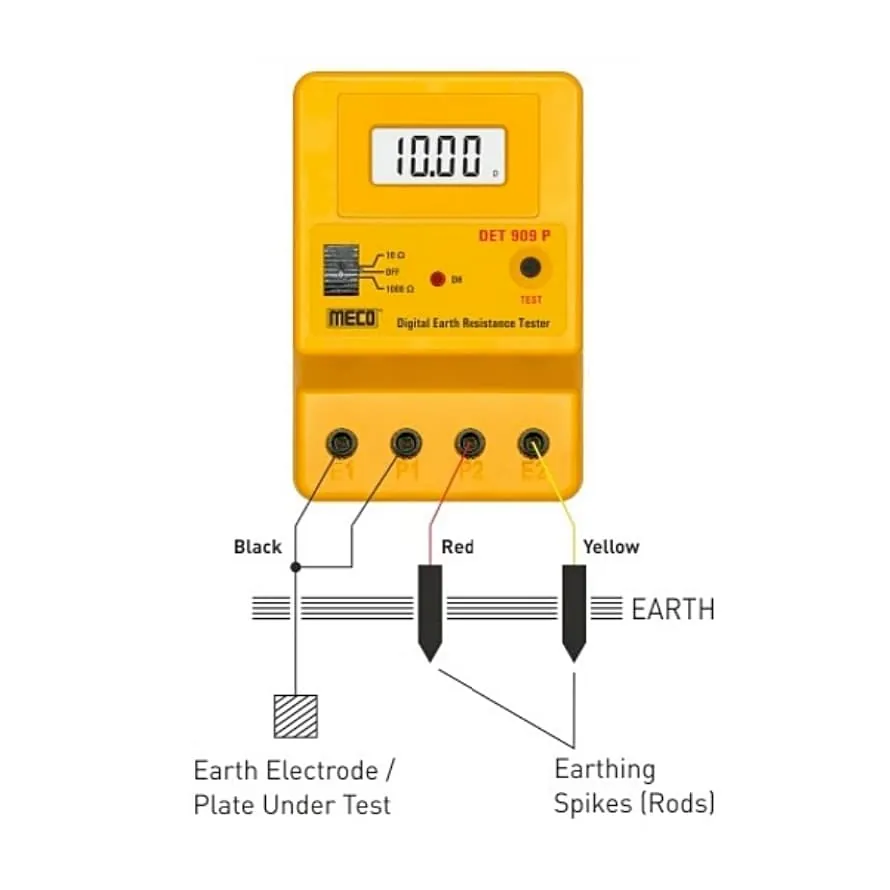

Digital earth resistance testers are instruments used to measure the resistance of the earth and detect any faults in the grounding system. They are also known as ground resistance meters or earth testers. MECO DET 909 P is designed for measurement of Earth Resistance of Earthing in Electrical System. This instrument finds wide applications for testing Earthing installations in Power Industries, Telecommunication Networks, Electrical Systems etc.
Features:
- Data Hold & Low Battery Indication
- Light Weight & Portable
- Extremely Simple to Operate Connect - Press - Read
- Designed to Reject High Levels of Noise & Interference
- Designed to Generally Confirm to EN61557
- Range Selection & Single Person Push Button Operation Switches
- Two Ranges for Earth Resistance Measurement
- Functions Icons on Display
- Rechargeable Battery Operated with Built-in SMPS Charger
- EN61010-1 CAT III 1000V
- Sturdy, Elegant & Compact Body
- Accuracy: ±(3% rdg.+5 dgt.) For Earth Resistance Valid from 5% of Reading to 95% of Range
Technical Data:
| Earth Resistance Range | Resolution |
| 10Ω (0.03 ~ 10.00) | 0.01 Ohms |
| 1000Ω (3~10001) | 1 Ohms |
Applications:
- Electrical rounding system installation and maintenance
- Grounding system troubleshooting
- Soil resistivity testing
- Cathodic protection system testing
- Lightning protection system testing
- Power distribution system testing
- Telecommunication system testing
- Lightning arresters testin
Package Content:
- Digital Earth Resistance Tester
- 8x 1.2V 'AA' Rechargeable Batteries (fitted in)
- 1x Instruction Manual x 1
- 1x Carton x 1
- 2 Pin Male-Female Wire for Battery Charging
- 1x Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digit | 3-1/2 Digit |
|---|---|
| Display Counts | 1999 Counts |
| Earth Resistance Range | 0 - 10 Ohms & 0 - 1000 Ohms |
| Display Type | 14mm LCD Display with Backlight |
| Measurement Frequency | 150Hz |
| Accuracy | At 23°C±5°C |
| Test Current | 30mA AC (MAX.) for 10 Ohm & 7mA AC (max.) for 1000 Ohm |
| Conversion Rate | 2.5 Sec |
| Over Range Indication | "1" is Displayed |
| Operating Temperature | 0° to 50°C |
| Storage Temperature | -20° to 60°C |
| Relative Humidity | 80% Max. |
| Low Battery | '+/-' Is Displayed when Battery Voltage drops below operating Voltage |
| Dielectric Strength | 2.5KV @ 50Hz for 1min, between Input Terminals & Case |
| Insulation Resistance | More than 50MOhm @ 500V between Input Terminals & Case |
| VA-Power | < 3.0VA |
| Power Supply | 8x 1.2V AA Rechargeable Batteries |
| Dimensions (mm) | 166 x 111 x 75 mm |
