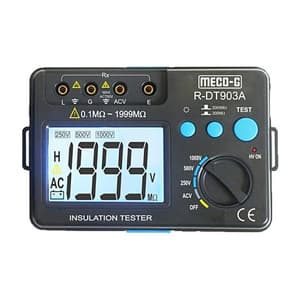

Meco-G 1KV / 1000V VAC / VDC Digital Insulation Tester, R-DT903A-1
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 550 g
- Insulation Resistance: >500MOhms / 1000V
- Voltage Withstand: 2KV for 1 min.
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹4,044 (Incl. of all taxes)
₹3,427 + ₹617 GST (18%)
MRP was MRP ₹5,040
Save 32%
5 Business Days
1
90319000
Download Product LeafletNot available
Download Meco-G CatalogueNot available
Download Meco-G CatalogueNot available
Highlights
"MECO-G" has introduced a multi-range 3½ Dgt. (1999 Counts) Digital Insulation Tester Model: R-DT903A and R-DT945K.
It has 3 Voltage Ranges, 250V/500V/1000V and 1000V/2500V/5000V respectively.
R-DT903A has two MOhms (M) ranges, 0-200M2 and 0-2000M2 and R-DT945K is auto-ranging upto 20GO AC voltage measurement upto 750VAC is available. Voltage is maintained from 10% to 100% of the insulation resistance range.
Features:
- 3-1/2 Digit (1999 Counts) Large Display with Back light
- High Accuracy ±(5% + 5dgts) for Insulation Measurement and (1%+6dgts) for VAC Measurement
- LCD Back Light Function with Indicator Switch.
- Measurement of AC voltage upto 750VAC.
- LED Indicator for HV (High Voltage)
- Inbuild Protection Circuit to prevent the harm of reverse voltages.
- Battery Operated/AC adapter (At additional cost)
- 3 Ranges of Insulation Measurement.
Electrical Specifications: R-DT903A
Accuracy ± (% reading + digits) at 23°C ± 5°C; RH≤ 75%
| Specification | Test | Range | Accuracy | Resolution |
| Insulation Resistance | 250V/500V/1000V | 0-200ΜΩ to 2000ΜΩ | ±(5% + 5dgts) | 0.01 ΜΩ |
| AC Voltage Measurement | 0-750VAC (40-400Hz) | - | ±(1% + 6dgts) | 1V |
What's Included In This Package:
- 1x R-DT903A Meco-G Digital Insulation Tester
- 1x Insulation Test leads for High Voltage
- 1x Instruction Manual
- 1x Carrying Case
- 6x 1.5V Batteries (R6AA size batteries)
Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 31⁄2 Dgt. (1999 Counts) Large LCD Display with 33mm Display Height. |
|---|---|
| Low Battery Indication | Symbol is Displayed |
| Operating Temperature | 0°C to 40°C (RH = 85%) |
| Storage Temperature | -10°C to 50°C (RH = 75%) |
| Insulation Resistance | >500MOhms / 1000V |
| Voltage Withstand | 2KV for 1 min. |
| Power | 9V (6 x 1.5V) (R6AA size batteries) or AC Adaptor 9VDC |
| Length x Width x Height (mm) | 170 mm x 110 mm x 60mm |
