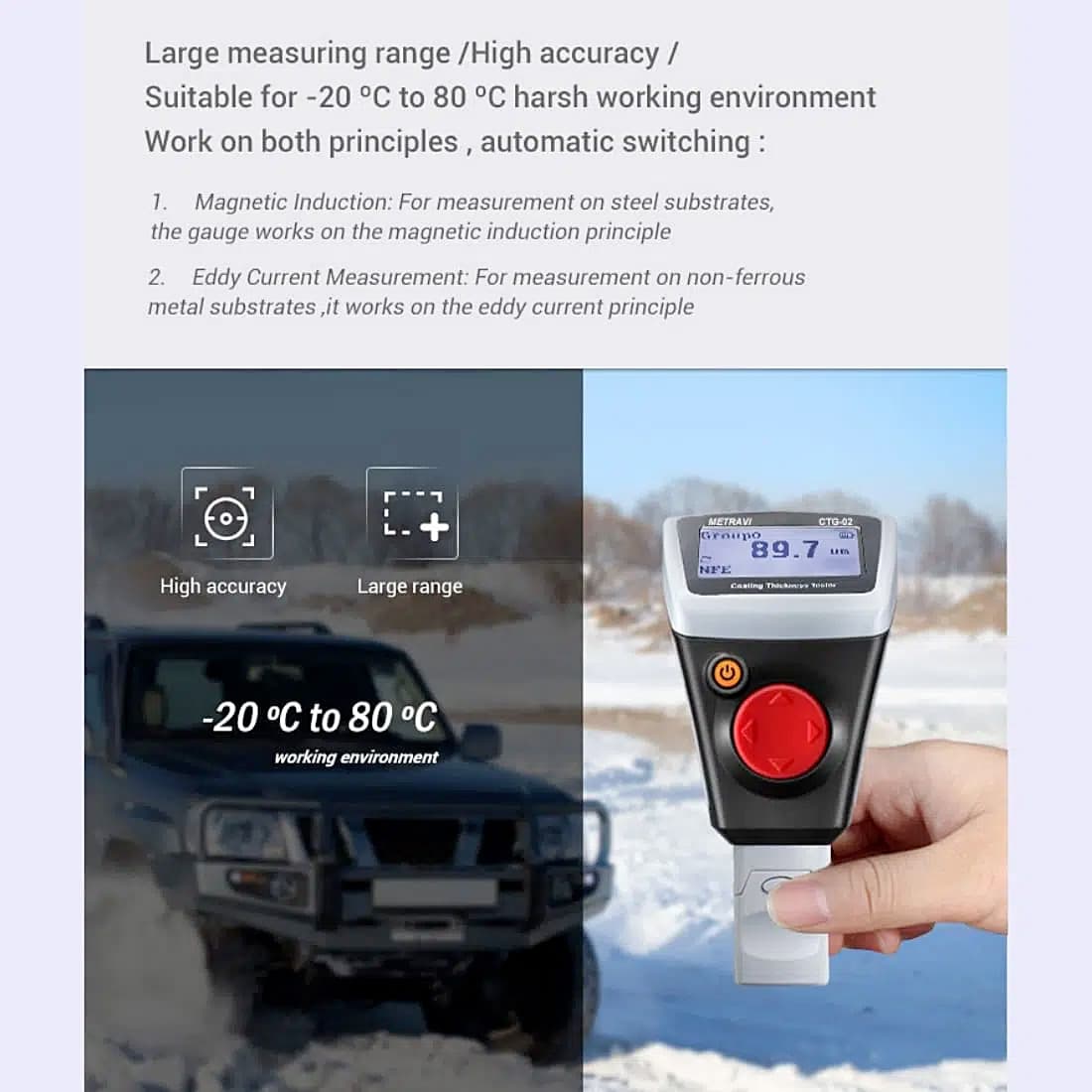

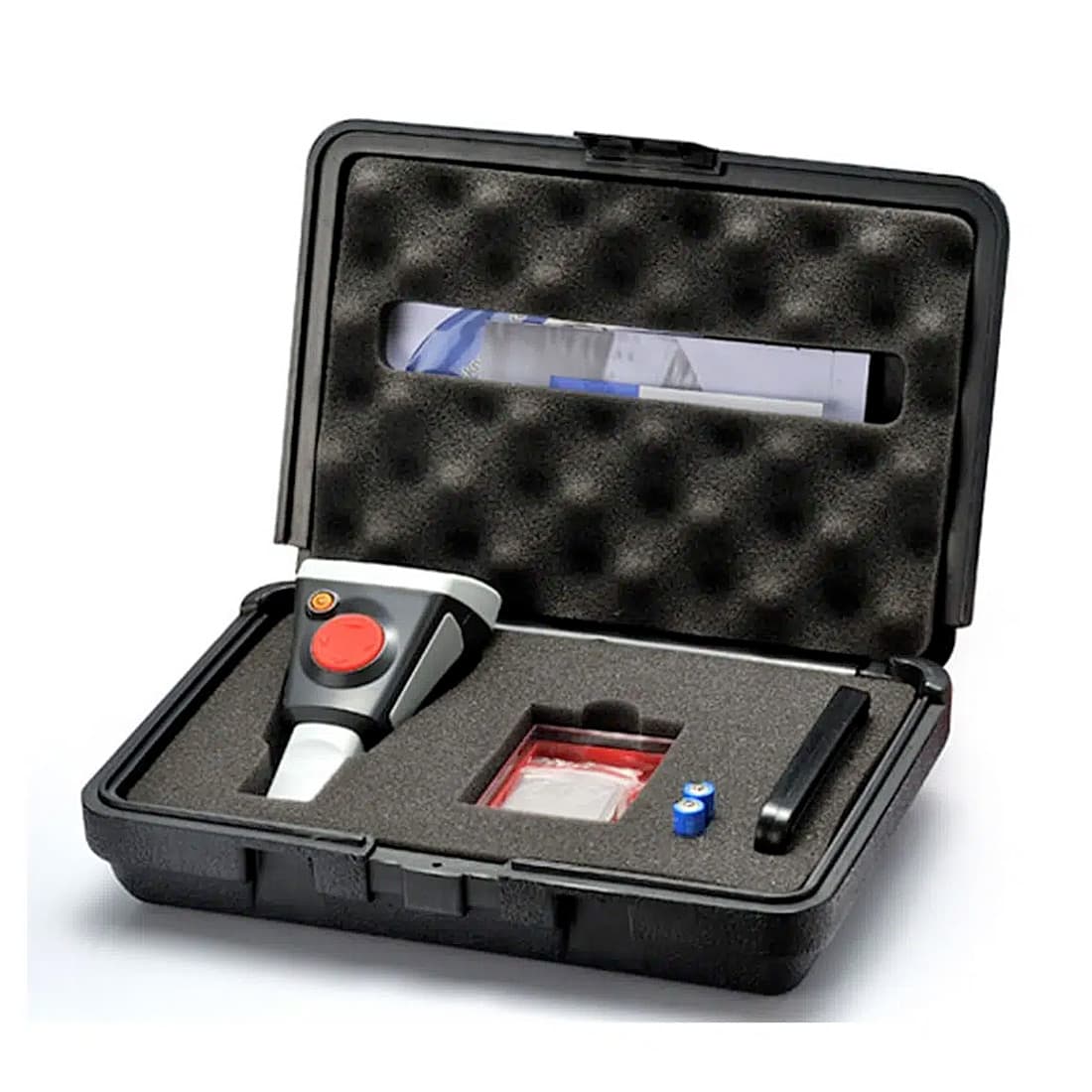

Metravi 2000um Coating Thickness Gauge With External Probe, CTG-02
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter

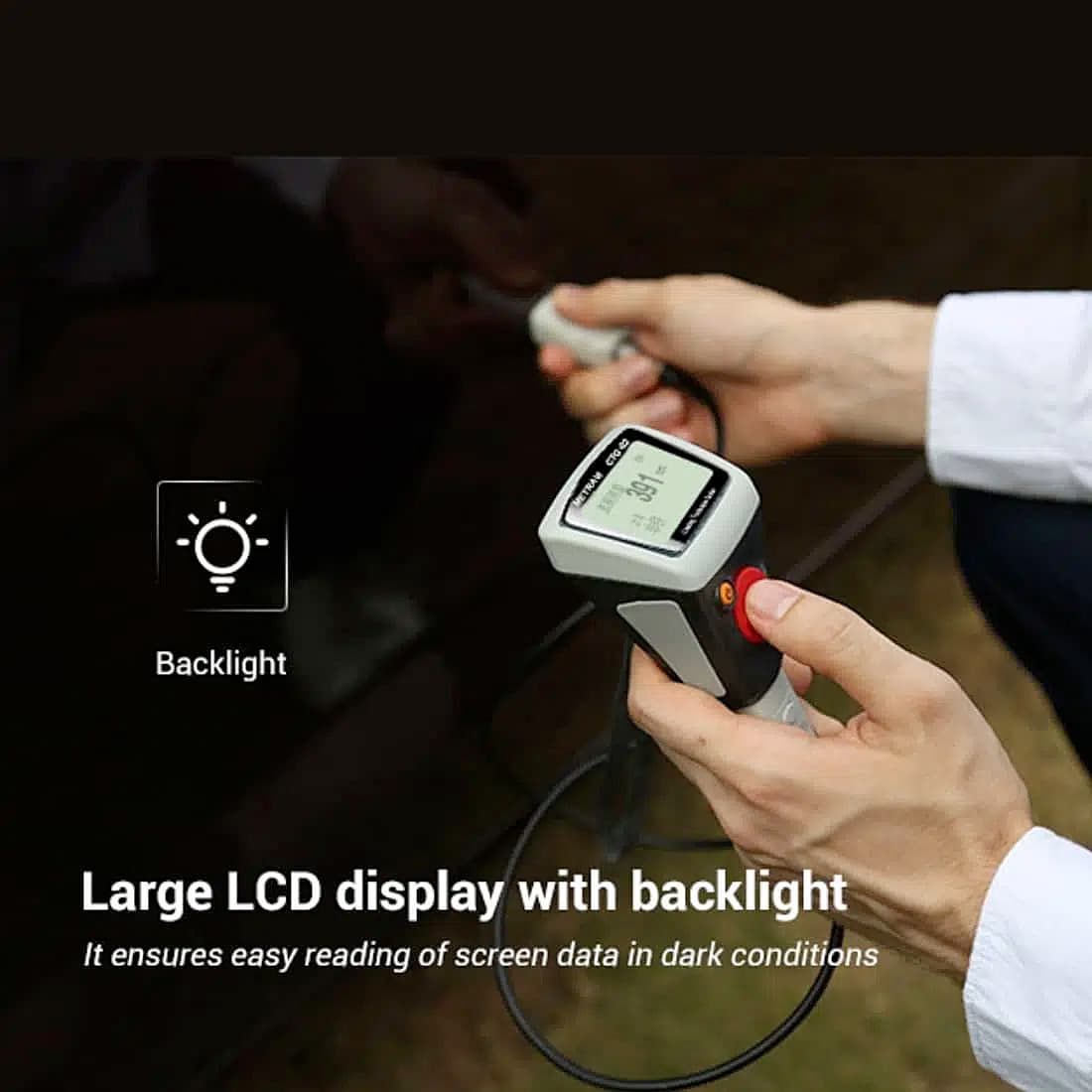

- Display: Backlit LCD
- Memory and Storage: 2500 readings

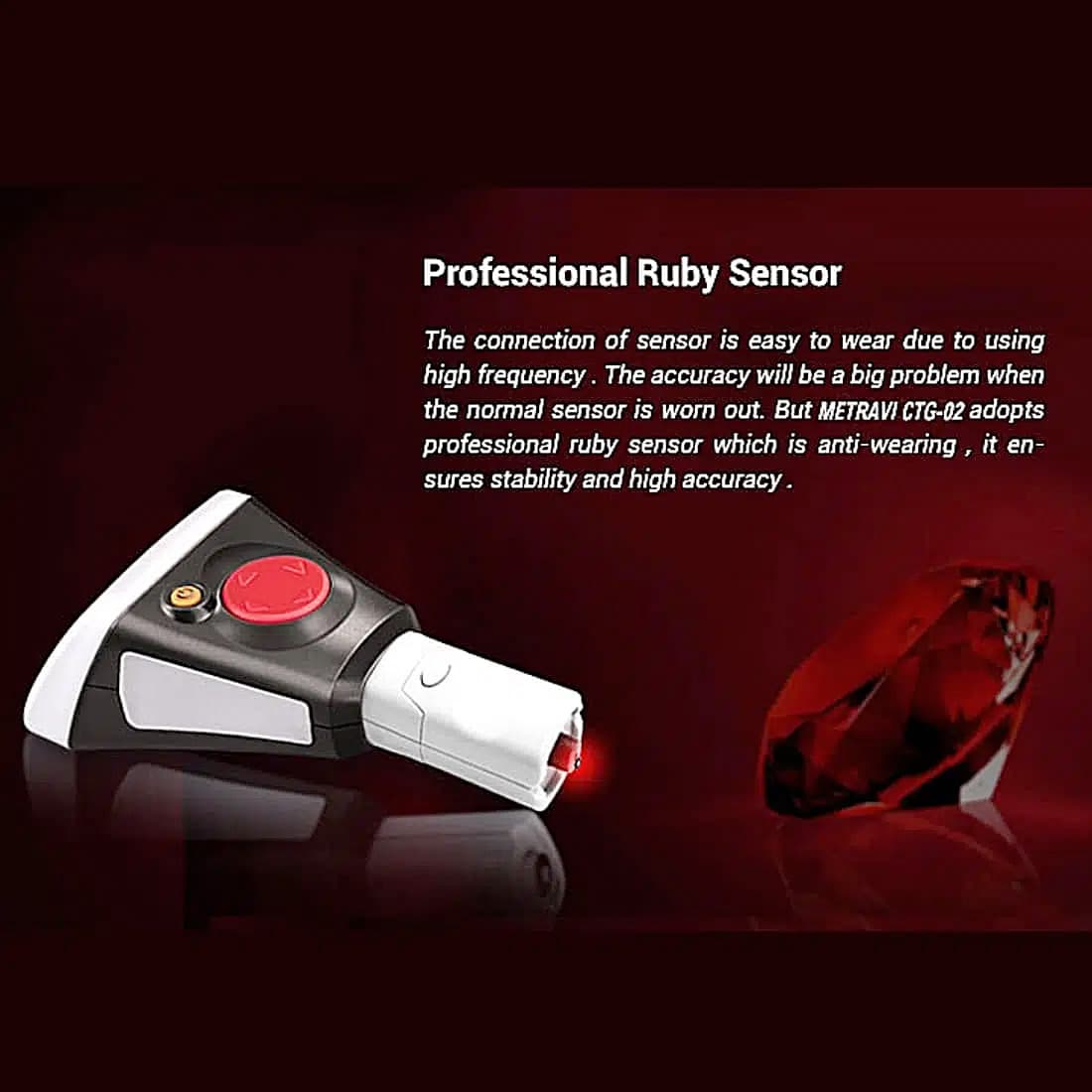

- Sensor Type: Ruby Sensor
- Power Source: Battery Operated
- Battery Type: Alkaline
- Battery Size: AAA
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹24,915 (Incl. of all taxes)
₹21,114 + ₹3,801 GST (18%)
MRP was MRP ₹31,050
Save 32%
3 Business Days
1
90173029
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
- Measures coating Thickness on both Ferrous and Non Ferrous materials with interface cable & S/W

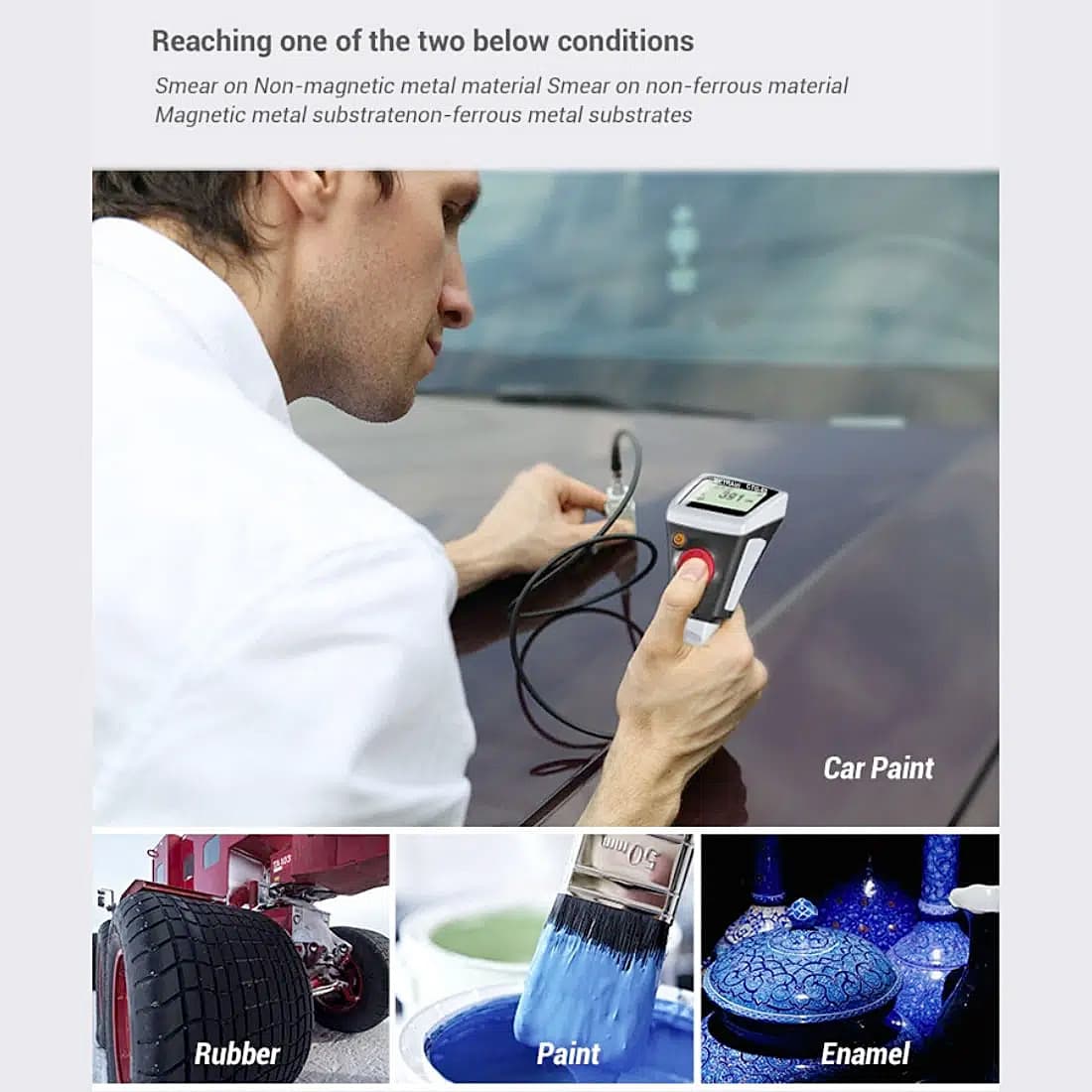

- Measured Coatings: Non-magnetic coatings (e.g. paint, zinc) on steel; Insulating coatings(e.g. paint, anodizing coatings)on no-ferrous metals
- Operating with MENU easily
- Memory for 2500 readings
- Delete single readings and all group readings easily
- Error indication
- Disable Auto-Power-off function via MENU setting
- Separate sensor with cable to be attached to the instrument.
- Disable Auto Power Off function via MENU setting.
Technical Data:
| Type | Ferrous | Non Ferrous |
| Measuring Range | 0 to 2000um / 0 to 78.7mils | 0 to 2000um / 0 to 78.7mils |
| Tolerance Range | ±2%+2um / ±2%+0.08 mils | ±2%+2um / ±3%+0.08mils |
| Precision | 0.1um / 0.01mils | 0.1um / 0.001mils |
| Minimum Curvature Radius | 1.5mm | 3mm |
| Diameter of Minimum Area | 7mm | 5mm |
| Basic Critical Thickness | 0.5mm | 0.3mm |
| Minimum measurable thickness | 0.5 mm | 0.3mm |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | Backlit LCD |
|---|---|

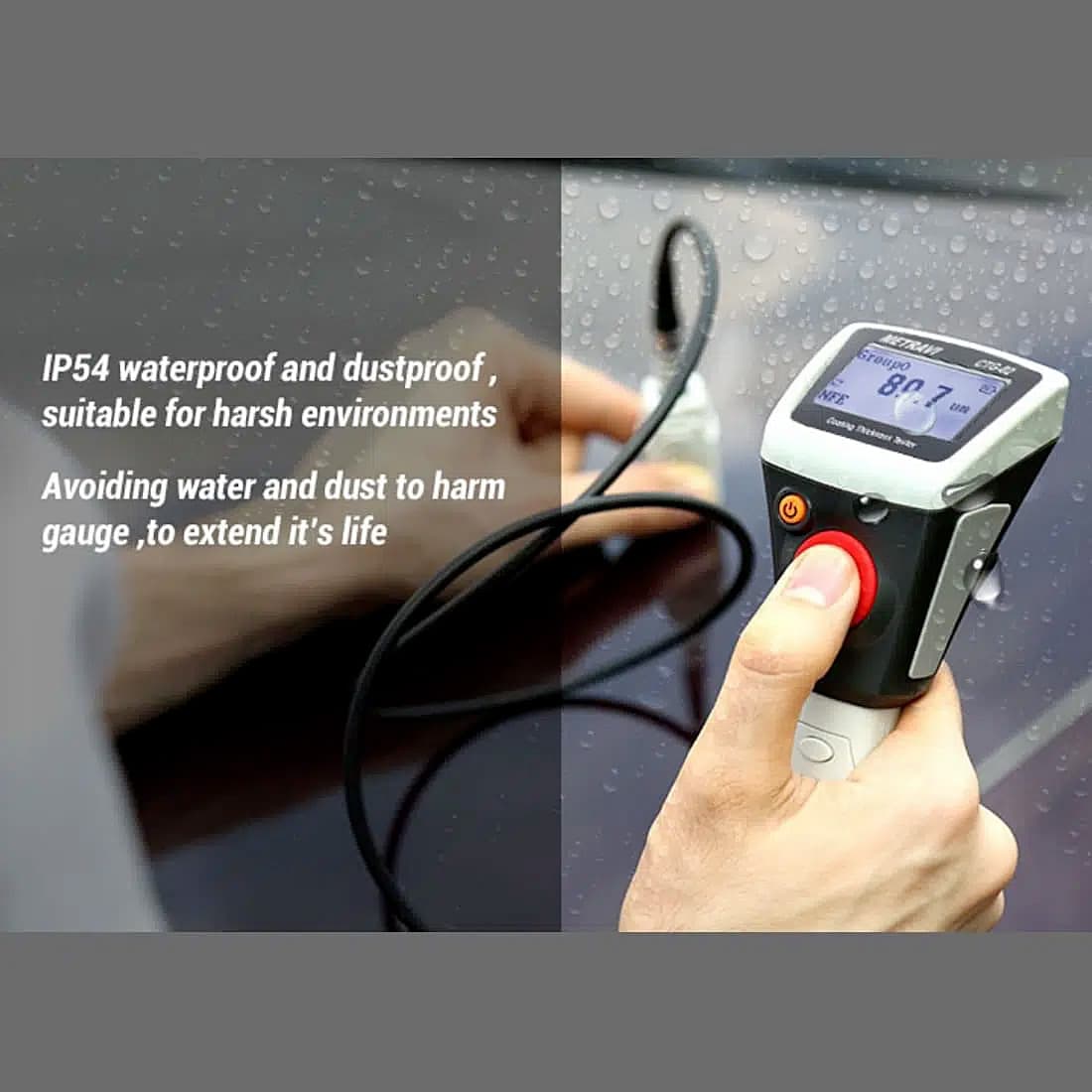

| Dust & Water Proof | IP54 |
| Memory and Storage | 2500 readings |
| Measuring Material | Ferrous Material, Non Ferrous Material |
| Sensor Type | Ruby Sensor |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AAA |
| No of Batteries | 2 |
| Working Temperature | 0°C- 40°C |
| Working Relative Humidity | 20% – 90% |
