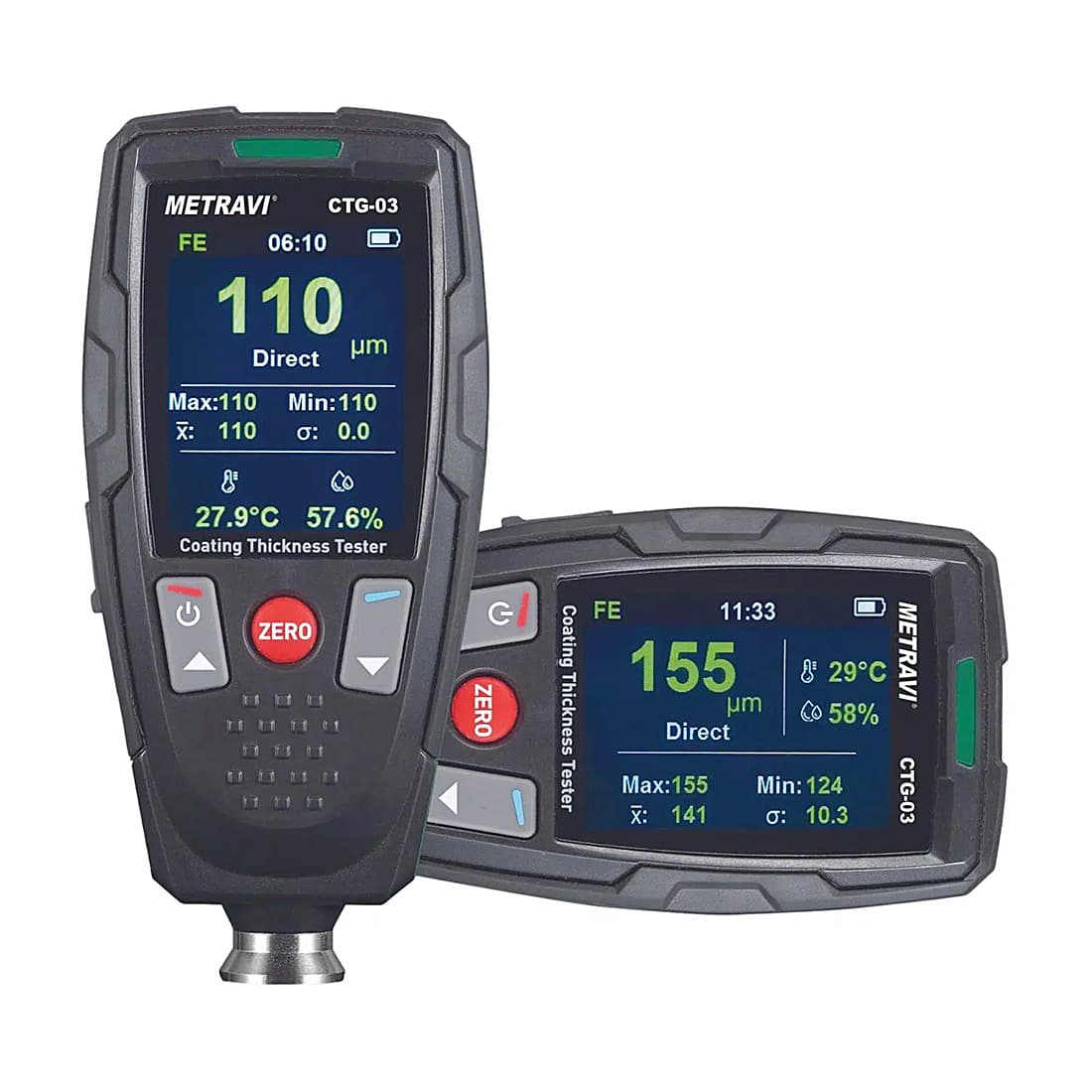

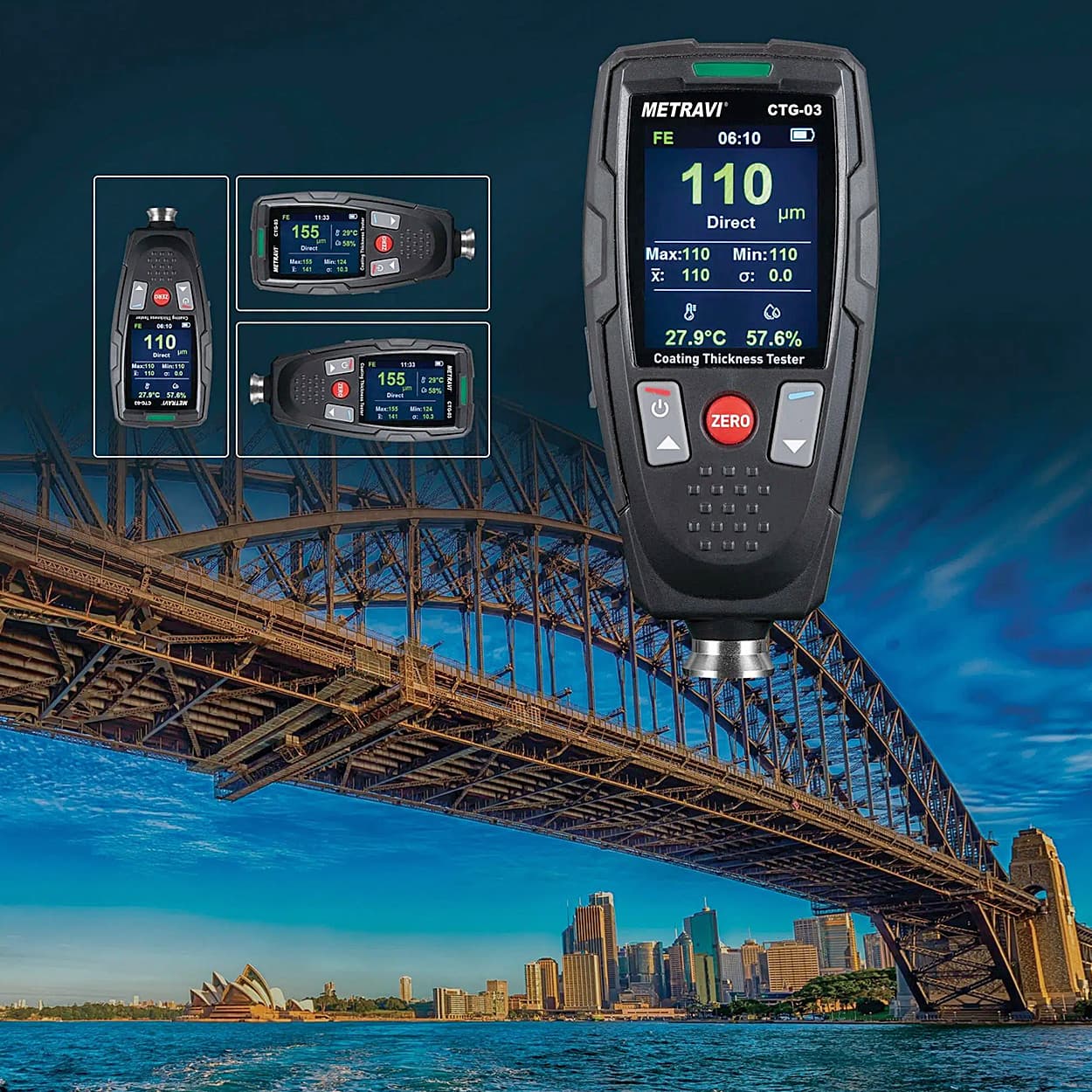

Metravi 2000um Coating Thickness Gauge With USB Interface (Single Probe For Coating Measurements), CTG-03
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Display: TFT LCD display, 2.4"
- Interface: USB
- LED Indication: 3-Colour LED Indication
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹15,707 (Incl. of all taxes)
₹13,311 + ₹2,396 GST (18%)
MRP was MRP ₹19,575
Save 32%
3 Business Days
1
90173029
Download Metravi CatalogueNot available
Highlights
This coating thickness gauge works both on magnetic as well as non-magnetic surfaces. Uses induction principle or on the eddy current principle, depending on the type of probe used. You can select the type of probe manually via MENU system, else, it works automatically.
Works on both principles, magnetic induction and eddy current. Single probe required for coating measurements, for both ferrous and non-ferrous metal substrates. Adaptable to specific tasks: i.e. can be used on special geometries or on materials with special properties. Designed for non-destructive, fast and precise coating thickness measurement, the principal applications lie in the field of corrosion protection and prevention.

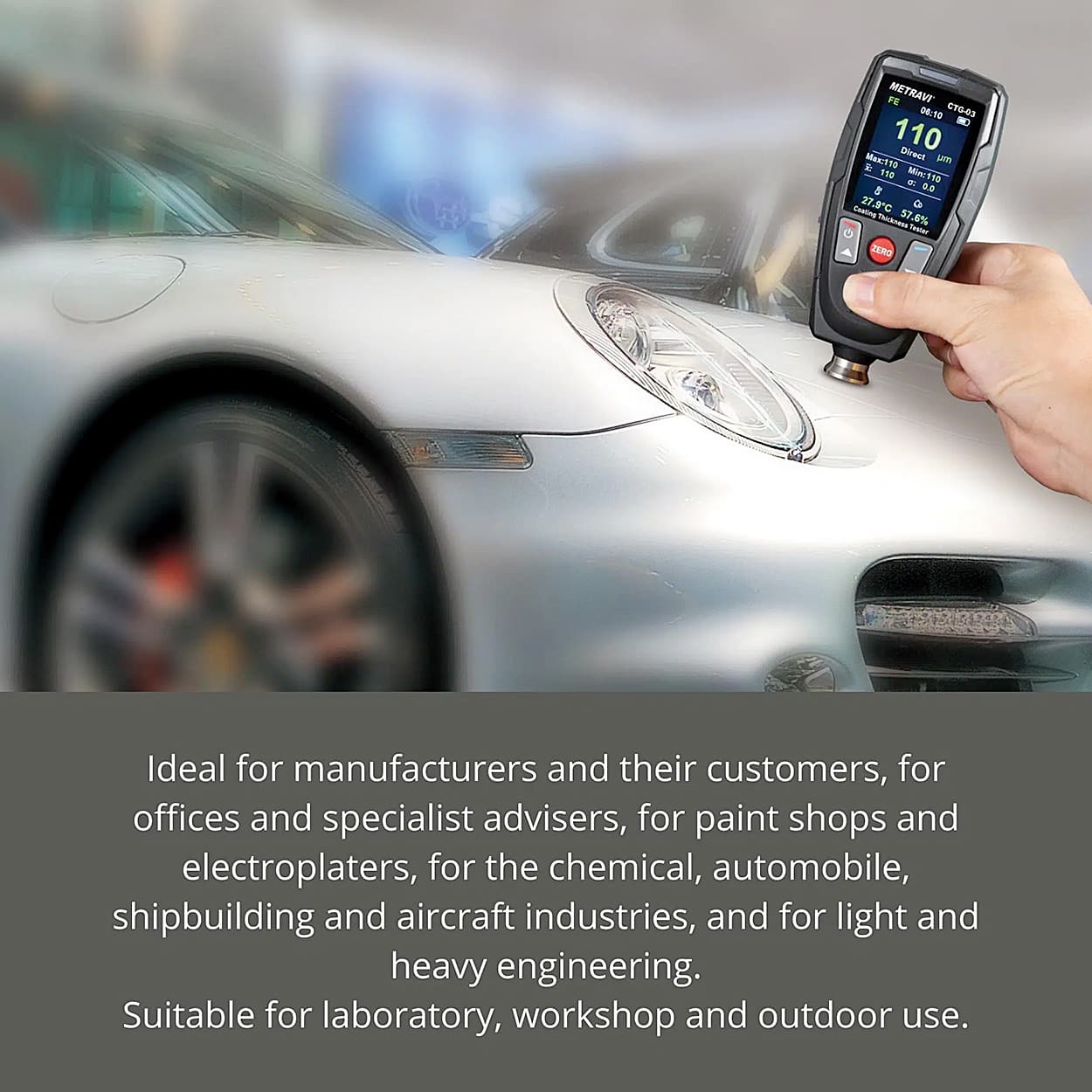

Ideal For:
- Offices
- Specialist advisers
- Paint shops and electroplaters
- Chemical industry
- Automobile industry
- Shipbuilding industry
- Aircraft industry
- Light and heavy engineering
- Laboratories
- Workshops
- Outdoor use
Features:
- Measures Coatings: Non-magnetic (e.g. paint, zinc) on steel; Insulated (e.g. paint, anodised coatings) on non-ferrous metals
- Guaranteed to Lerance (of reading): (±2%±2)µm
- Low Range Precision 0.1μm
- Temperature, Humidity and Dew Point temperature measurements
- Stability test & Continuous test
- Set auto power-off time
- SSPC mode
- Warning with beeper and backlight flash, 3-Colour LED indication
- Menu operation system
- Working modes: DIRECT, GROUP and SSPC
- AVG, MAX, MIN, Stand and Deviation (S.DEV) display
- Basic, one-point and SSPC mode calibration

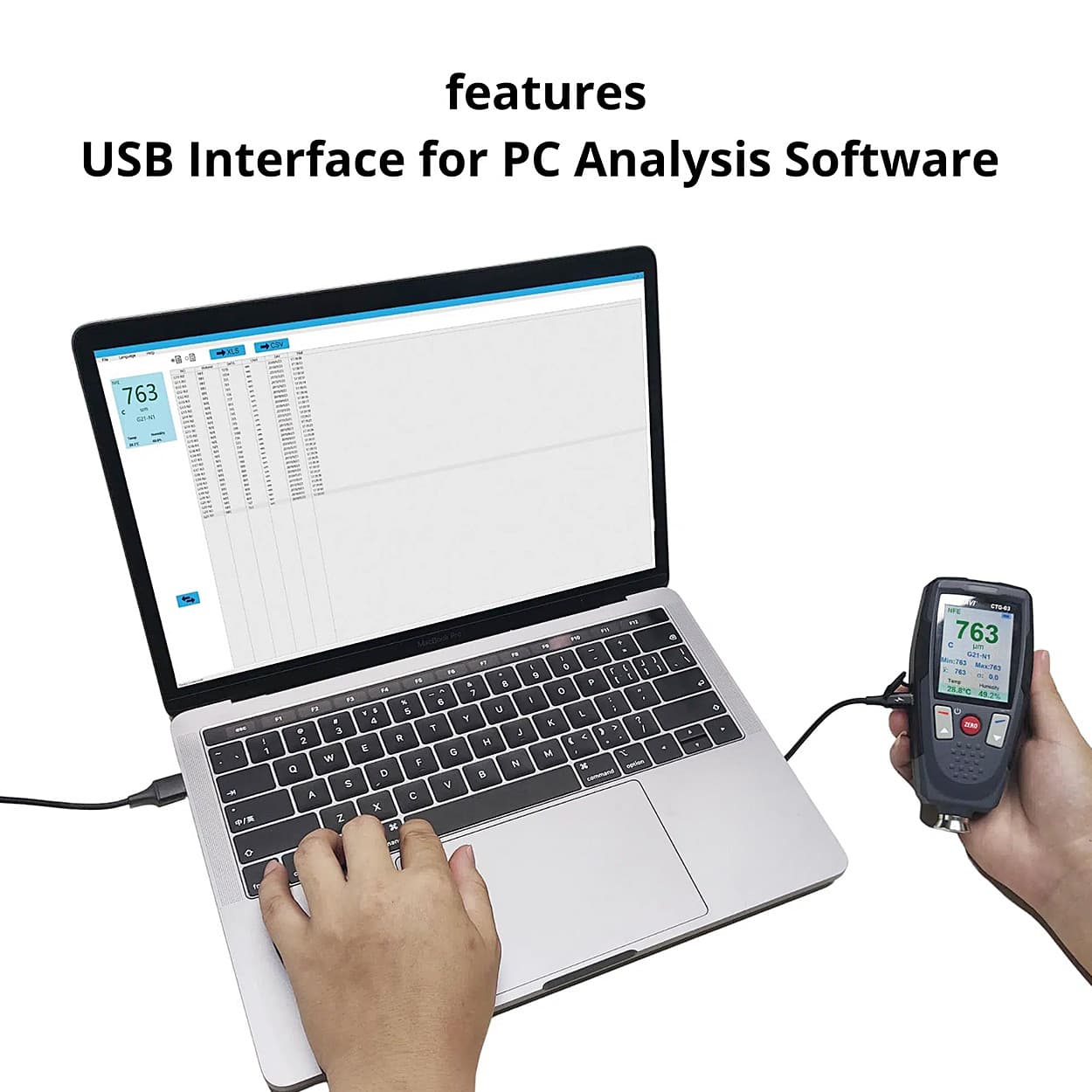

- USB interface for PC analysis software
- 10 levels of adjustable LCD backlight brightness
- Low battery, error indications
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | TFT LCD display, 2.4" |
|---|---|
| Interface | USB |
| LED Indication | 3-Colour LED Indication |
| Measuring Material | Ferrous Material, Non Ferrous Material |
| Power Source | Battery Operated |
| Battery Type | Alkaline |
| Battery Size | AA |
| No of Batteries | 2 |
| Measuring Range | Ferrous: 0 to 2000μm, Non Ferrous: 0 to 2000μm |
| Tolerance Range | Ferrous: ±2%±2μm, Non Ferrous: ±2%±2μm |
| Repeatability | Ferrous: (±1%±1)μm, Non Ferrous: (±1%±1)μm |
| Low Range Precision | Ferrous: 0.1μm, Non Ferrous: 0.1μm |
| Minimum Curvature Radius | Ferrous: 1.5mm, Non-Ferrous: 3mm |
| Diameter of Minimum Area | Ferrous: 7mm, Non Ferrous: 5mm |
| Basic Critical Thickness | Ferrous: 0.5mm, Non Ferrous: 0.3mm |
| Auto-rotation Screen | 0°, 180°, 270°, 90° |
| Certifications | GB/T 4956-1985, GB/T 4957-1985, JB/T 8393-1996, JJG 818-93, JJG 889-95 |
| Temperature Range | 0°Cto 50°C ( 32°F to 122°F) |
| Temperature Accuracy | ±1.2°C |
| Humidity Range | 0 to 100%RH |
| Humidity Accuracy | +3.2%RH at 20%-70%, +4%RH other |
| Working Modes | DIRECT, GROUP, SSPC |
| Language selection | Chinese, English, French, German, Italian, Japanese |
