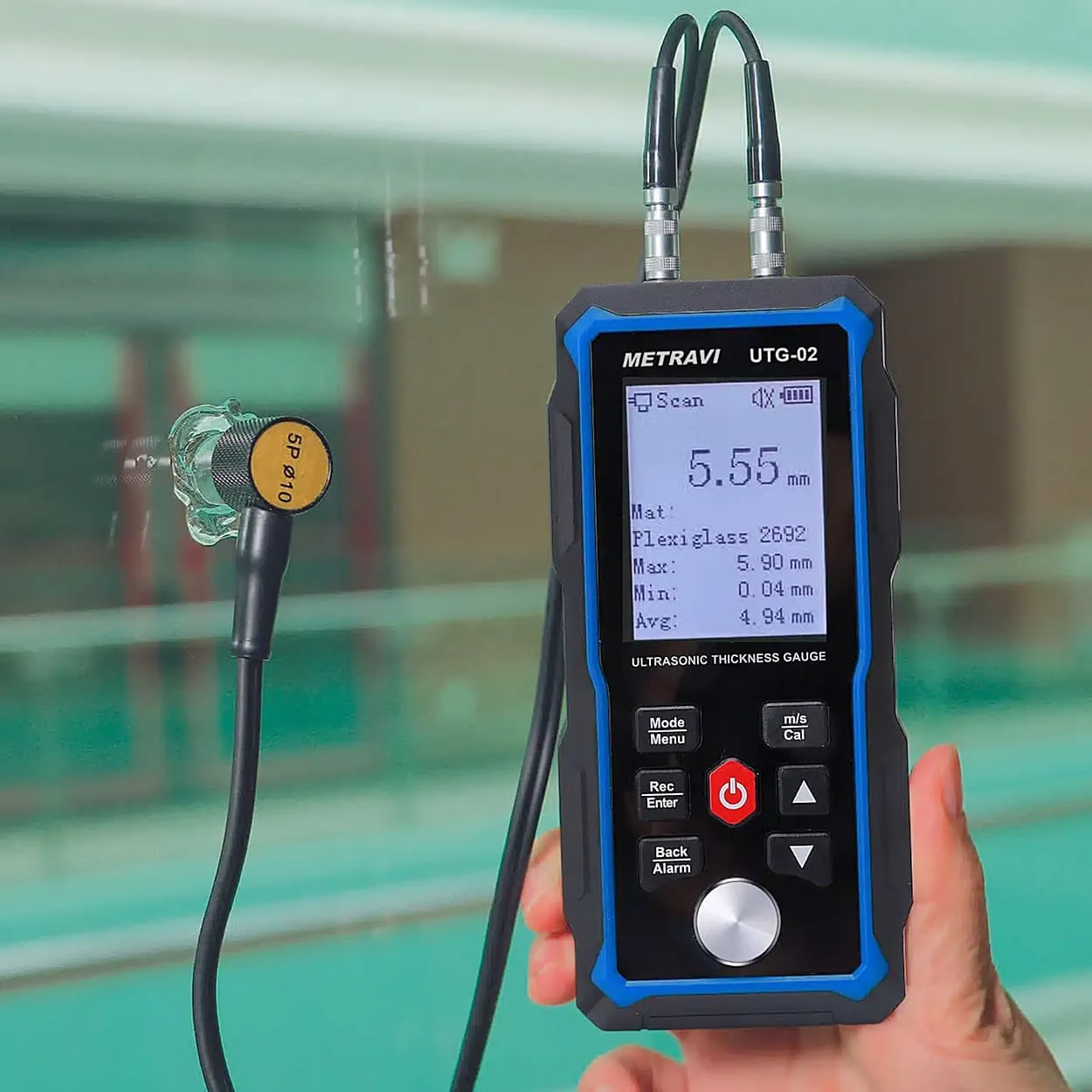

Metravi 300 mm Ultrasonic Thickness Gauge, UTG-02
Roll over the image to zoom in
Key Features
- Product Type: Coating Thickness Meter
- Measurement Range: 1.00 ~ 300.00 mm
- Sound Velocity Range: (1000~9999) m/s
- Probe: 0.1μm / 0.01mil
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,374 (Incl. of all taxes)
₹9,639 + ₹1,735 GST (18%)
MRP was MRP ₹14,175
Save 32%
5 Business Days
1
90173029
Download Product LeafletNot available
Download Metravi CatalogueNot available
Download Metravi CatalogueNot available
Highlights
The Metravi UTG-02 Ultrasonic Thickness Gauge is an intelligent device that adopts the latest high performance and low power consumption microprocessor technology.
Based on the principle of ultrasonic measurement, it can measure the thickness and sound speed of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.
Features:
- Easy to operate
- Measurement Modes: Single Point, Two Point, Multi-point, Continuous
- Selectable units: mm or in
- Single & Continuous measurements
- User-calibratable
- Rechargeable Battery
- Auto Power-off
- Max, Min, Avg values
- Data Logging
Package Content:
- Probe
- Coupling Agent
- Carrying Case
- Data Cable
- User Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 2.4" Monochrome Dot Matrix Backlit Screen |
|---|---|
| Measurement Method | Single / Continuous |
| Colour | Blue-Black |
| Measurement Range | 1.00 ~ 300.00 mm |
| Sound Velocity Range | (1000~9999) m/s |
| Sensors | 5MHz Ø10 |
| Probe | 0.1μm / 0.01mil |
| Measurement Units | 0.1mm/0.01mm/0.01in |
| Accuracy | ±(1%+0.1)mm, ±0.1mm, H<10mm, H=10mm |
| Data Logging | 300 groups |
| Auto Calibration | Yes |
| Battery Type | Lithium Battery |
| Charging System | Built-in 3.7V 2000mah, Rechargeable |

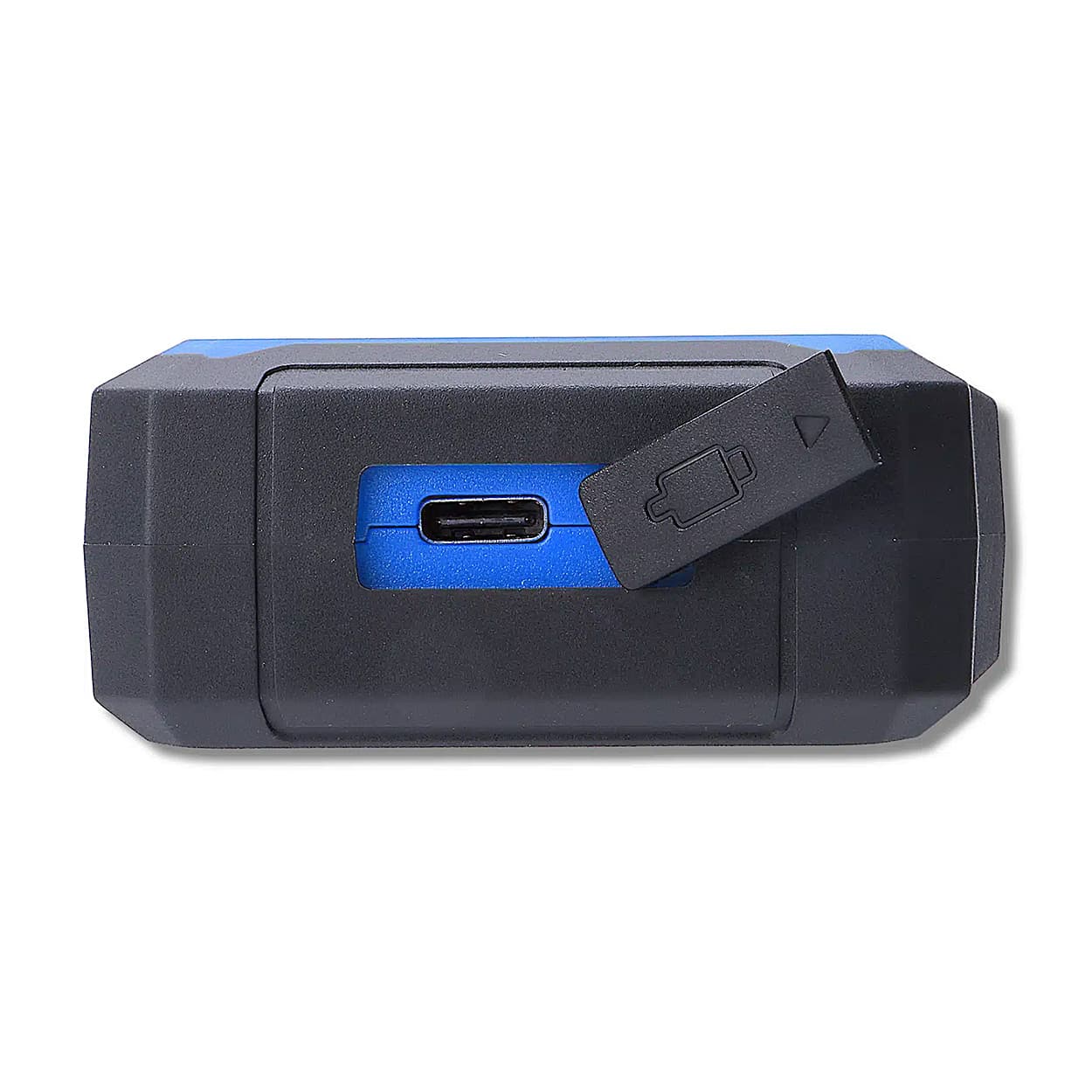

| Operating Time | About 16h with full charge, Type-C interface |
| Dimensions | 140 x 66 x 28.5 mm |
