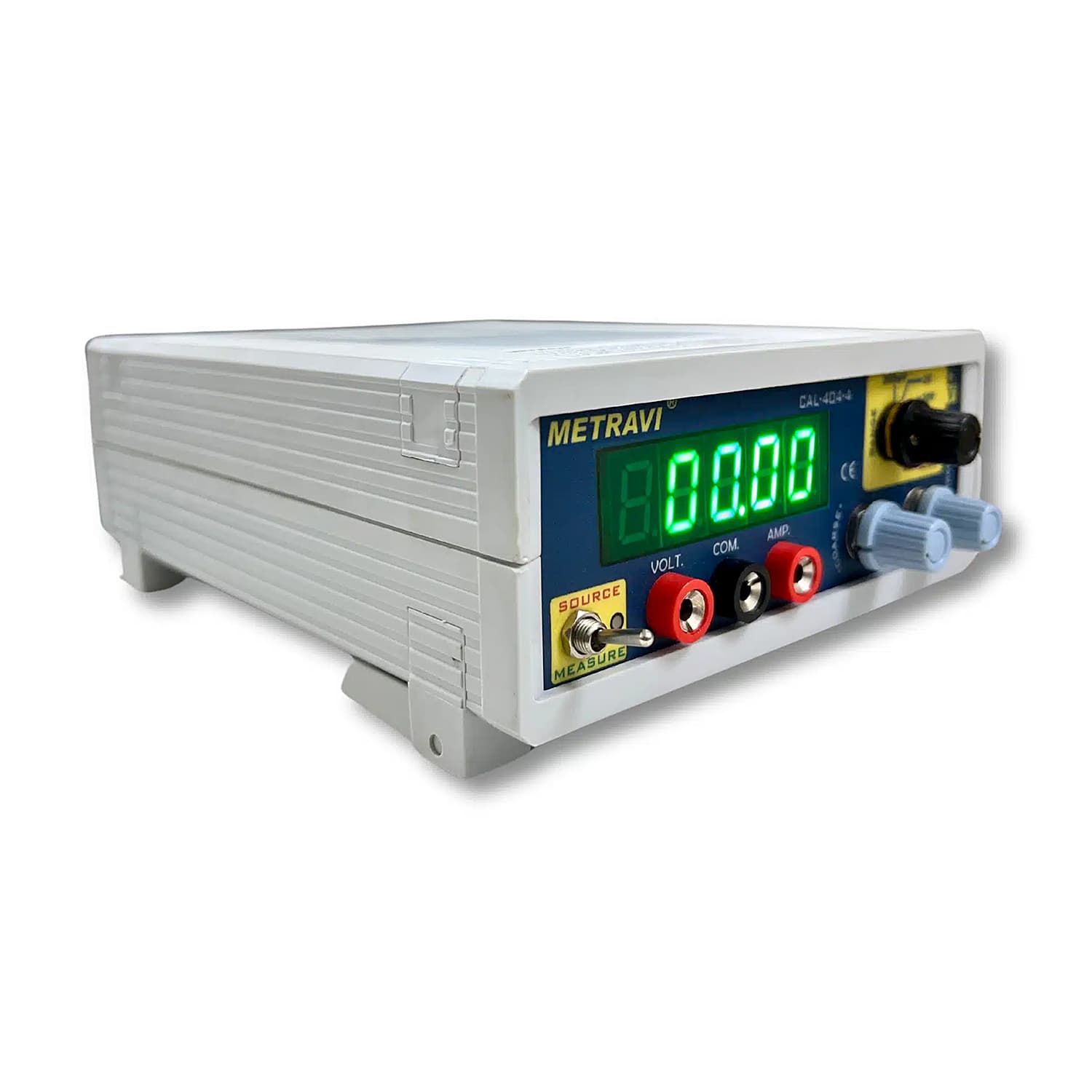

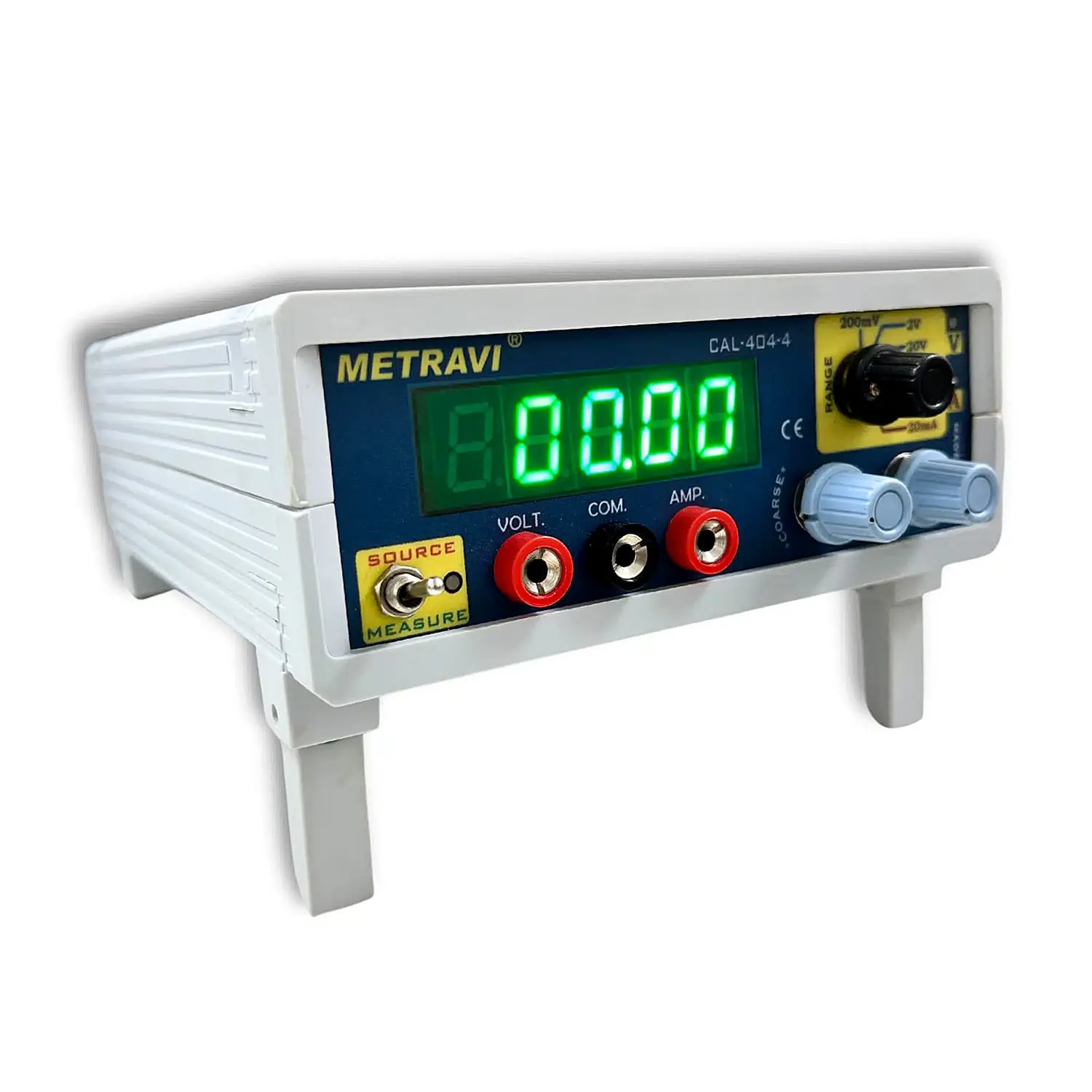

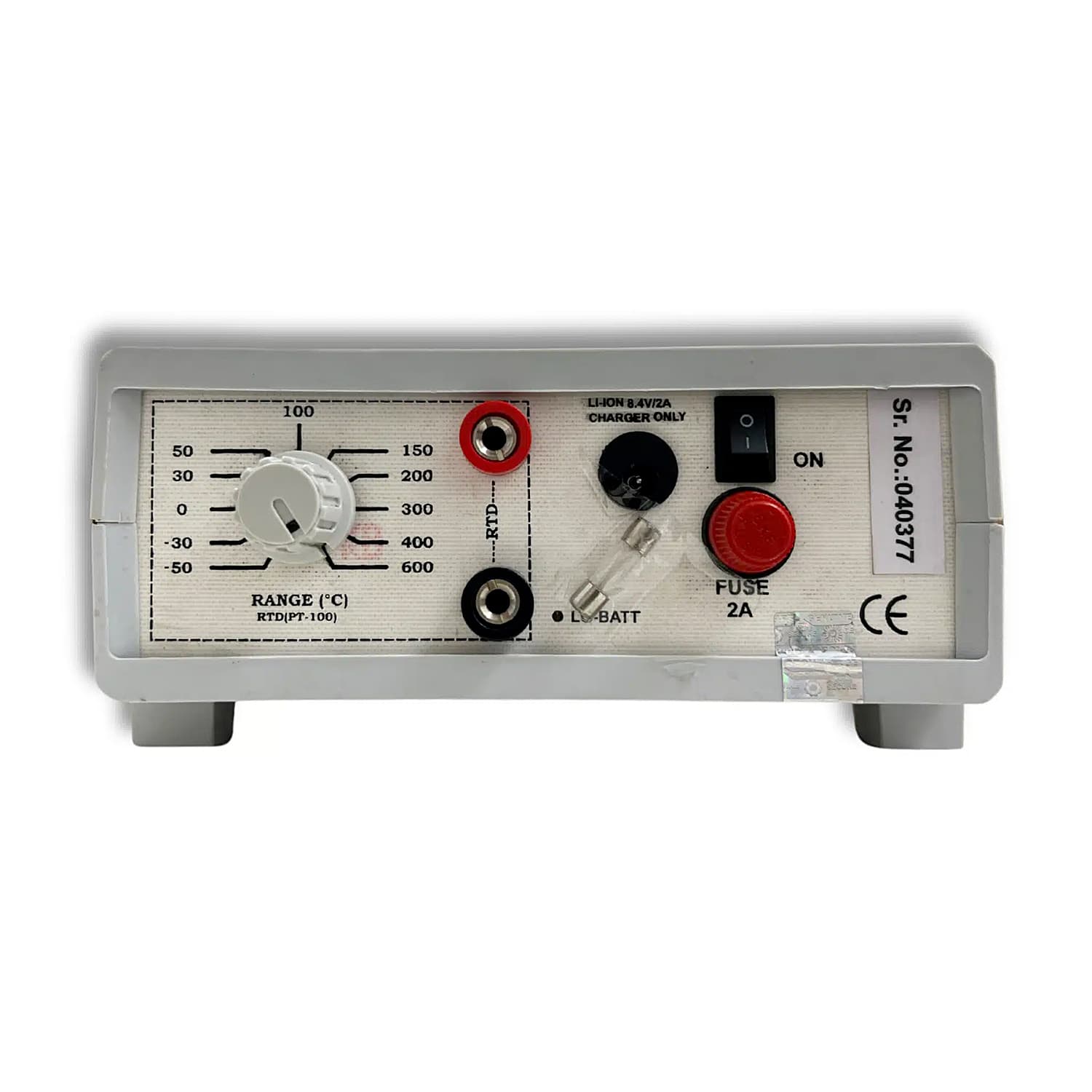

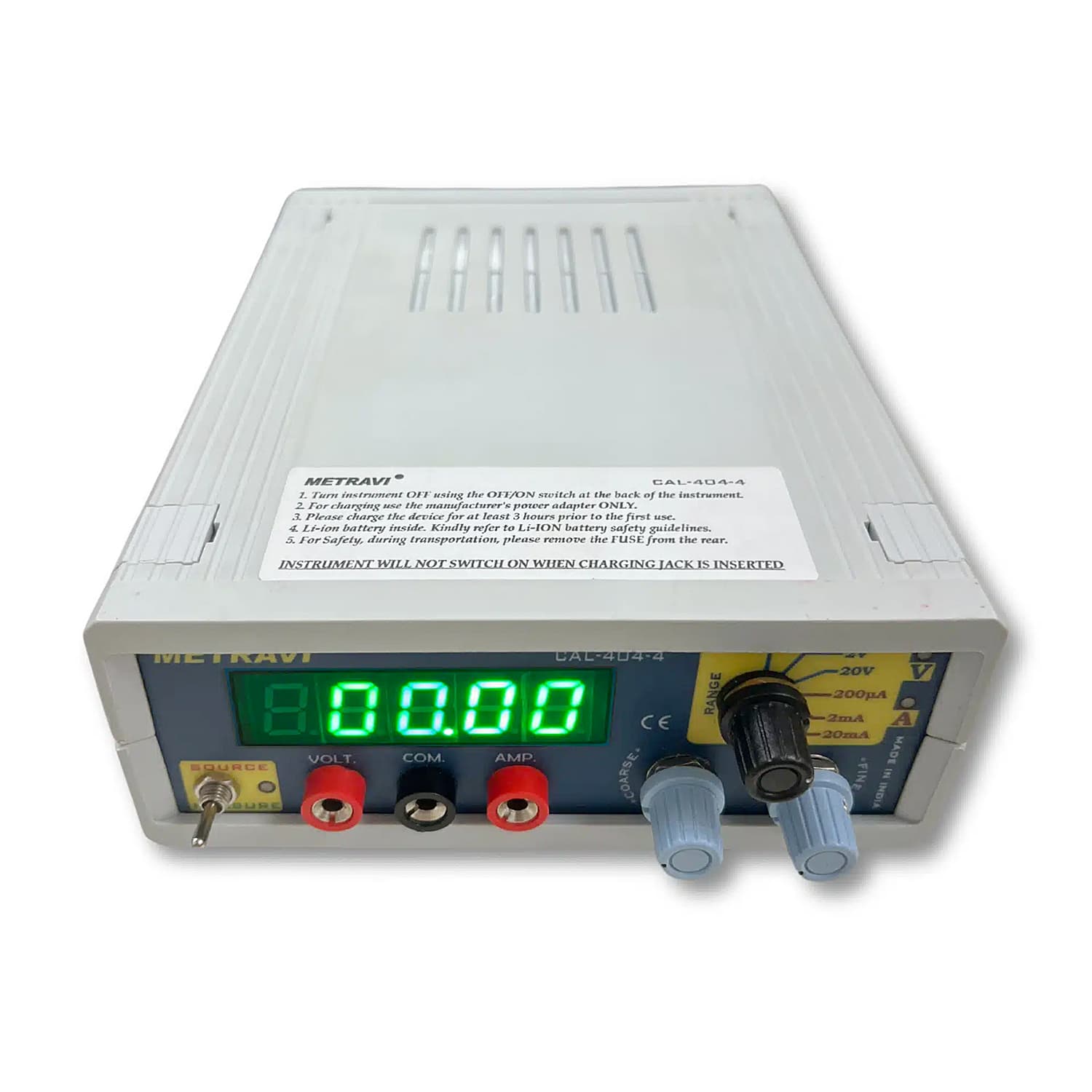

Metravi 4-1/2 Digit 20000 Counts mV mA RTD Calibrator, CAL-404-4

The Metravi CAL-404-4 mV mA RTD Calibrator is a multifunctional device used in industrial automation and process control to simulate and measure signals for testing, calibrating, and troubleshooting equipment such as transmitters, controllers, and sensors. It generates precise millivolt signals to simulate inputs for devices like temperature transmitters and measures millivolt outputs to verify device accuracy. It is useful for calibrating devices with thermocouple inputs. It simulates current signals to test and calibrate devices such as controllers and actuators and measures current signals to diagnose issues in current loops. It also simulates resistance to mimic an RTD sensor for testing RTD transmitters and control systems and supports RTD/ PT-100 type thermocouples, with different temperature ranges.

Features:

• High accuracy
• Bench-top and Portable
• Easy to use and operate
• With Rechargeable Battery
• 20000 Counts, 4 1/2 Digits
• Range Selector with LED indicator

Applications:

• Calibration: Ensures sensors, transmitters, and controllers are accurate by providing reference signals.
• Troubleshooting: Identi?es issues in control loops, such as wiring faults or device failures.
• Maintenance: Periodically checks the performance of instrumentation in industrial settings.
• Simulation: Mimics inputs during system commissioning or testing without requiring actual ?eld sensors

Source:

• DC Voltage : 0 – 199.99mV / 1.9999V /19.999V / Accuracy : 0.05% ± 5dgt
• DC Current : 0 – 199.99μA / 1.9999mA/19.999mA / Accuracy : 0.05% ± 5dgt

Measures:

• DC voltage : 0-199.99mV / 1.9999V / 19.999V / Accuracy : 0.05% ± 5dgt
• DC Current : 0 – 199.99μA / 1.9999mA/19.999mA / Accuracy : 0.05% ± 5dgt

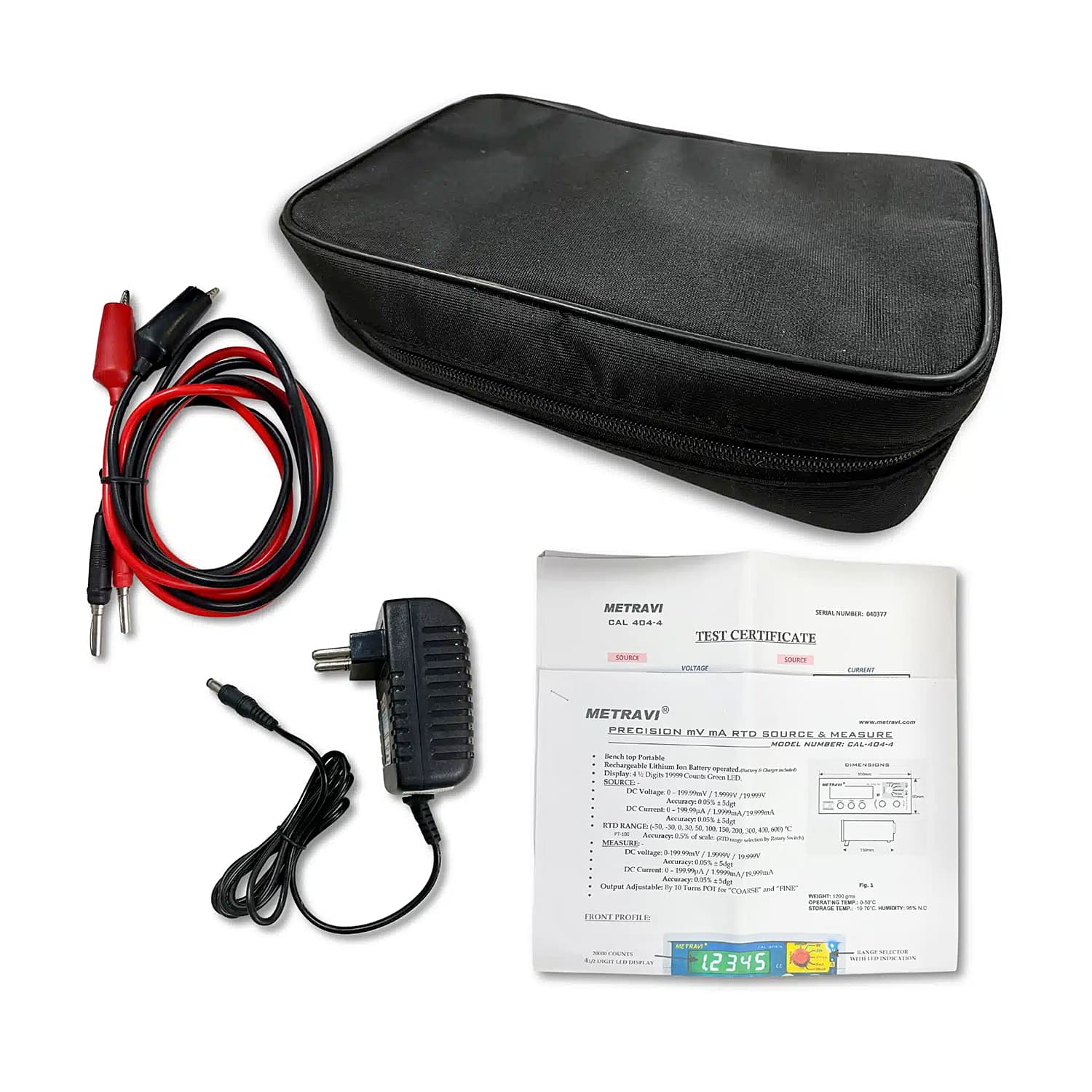

What's Included In This Package:

• Soft Carrying Case
• Charger
• Test Leads
• User Manual
• Calibration Certificate

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
