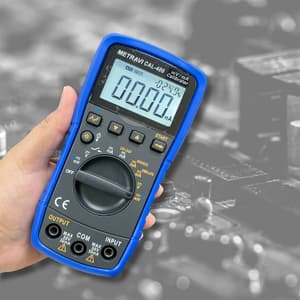

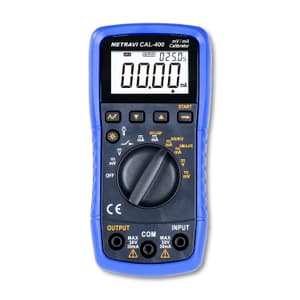

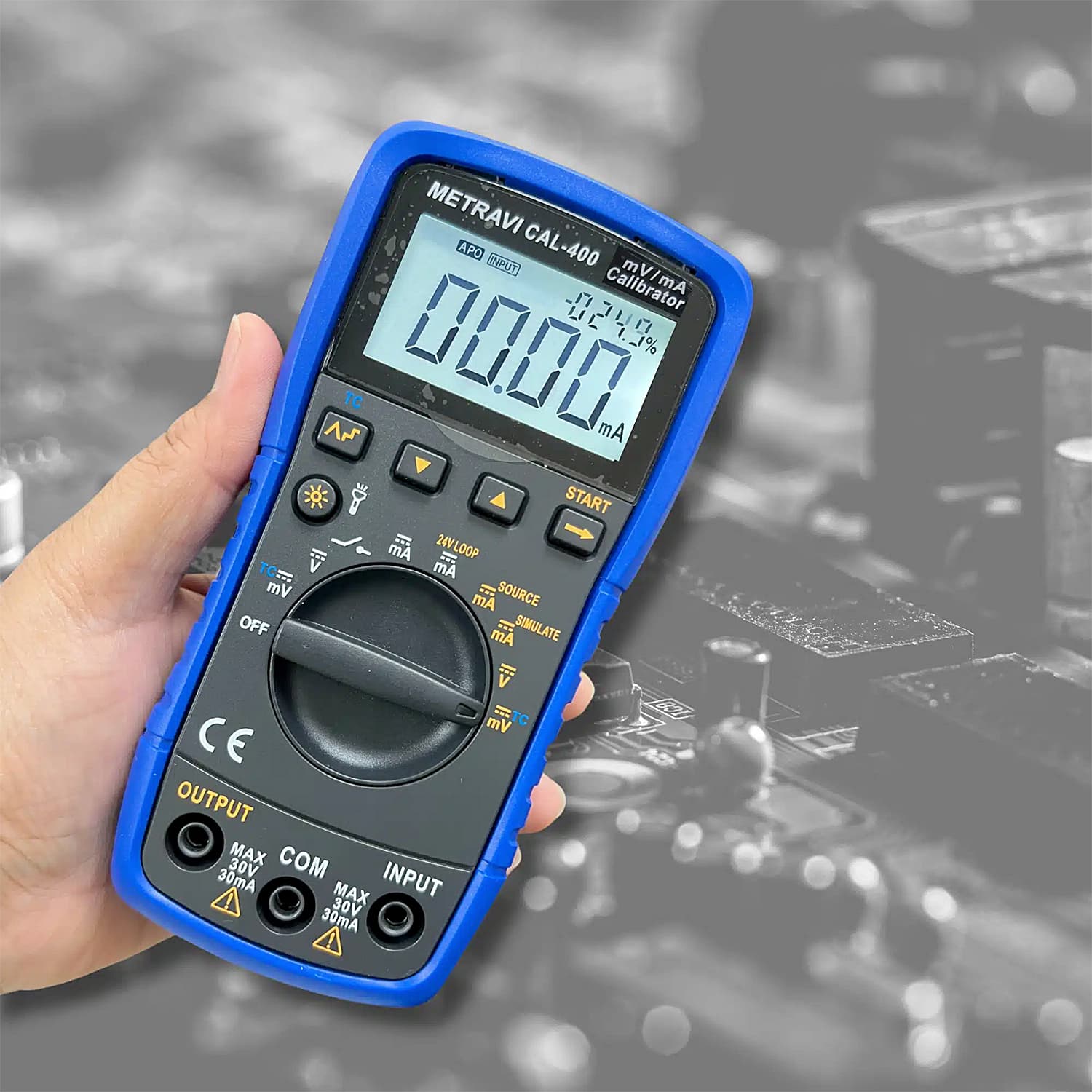

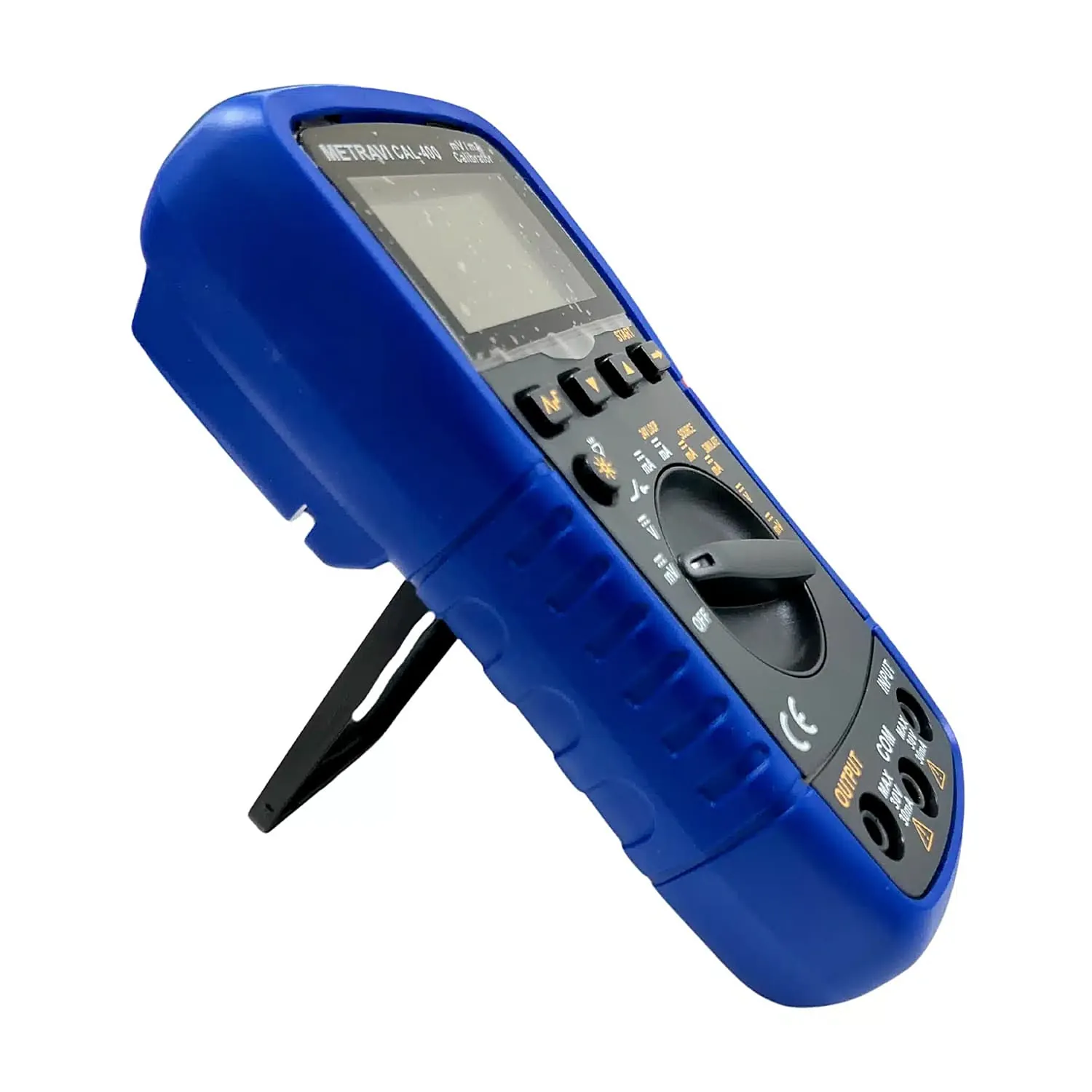

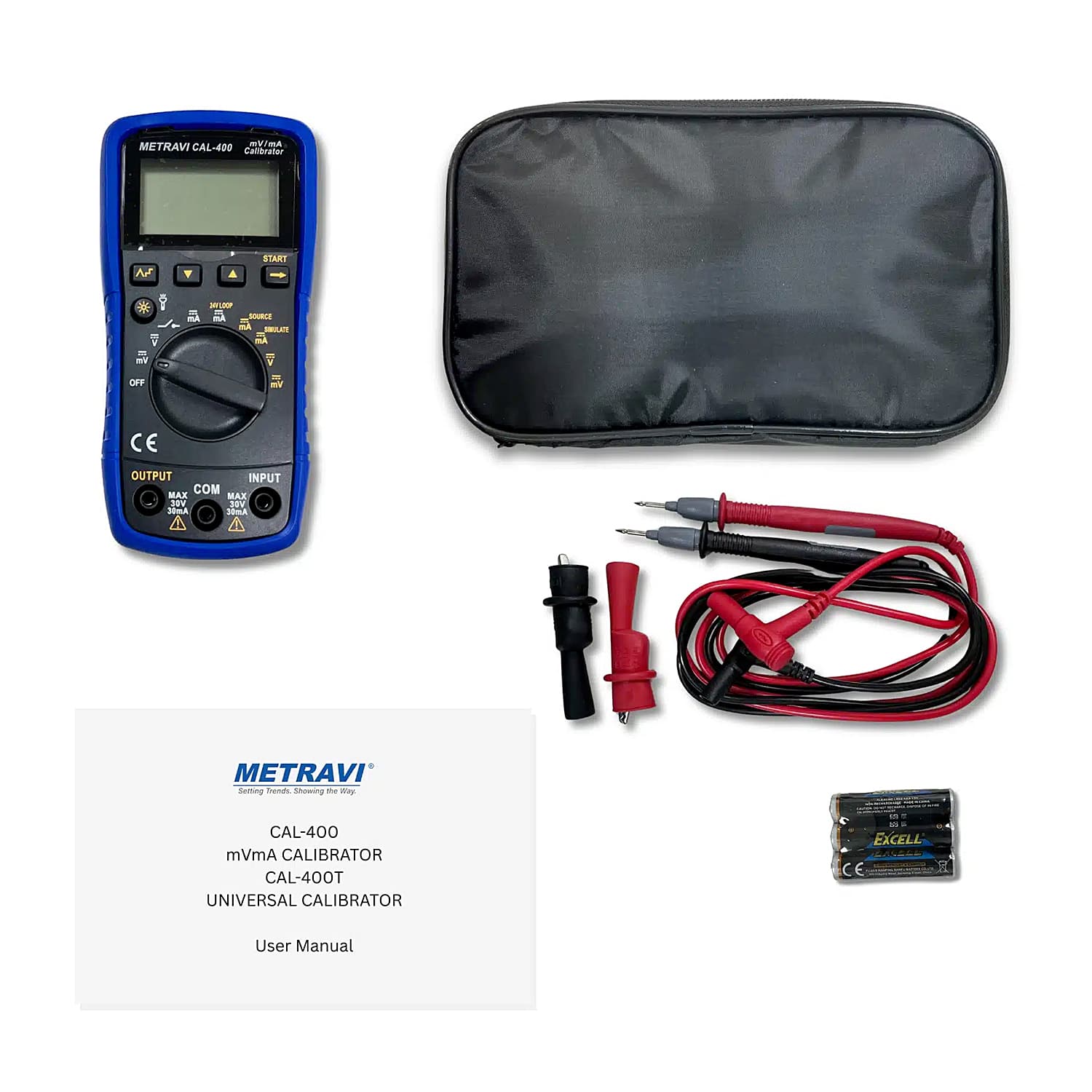

Metravi 50mA/30V Overload Protection mV mA Calibrator, CAL-400
Roll over the image to zoom in
Key Features
- Product Type: Process Calibrators
- Weight: 230 g
- Sampling Time: 2-3 times / second
- Overload Protection: 50mA/30V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,399 (Incl. of all taxes)
₹8,813 + ₹1,586 GST (18%)
MRP was MRP ₹12,960
Save 32%
5 Business Days
1
90318000
Download Metravi CatalogueNot available
Highlights
The Metravi CAL-400 mV/mA Calibrator is versatile and precise, designed to meet the needs of professionals in testing, calibration, and troubleshooting applications. With its wide range of functions, this device offers 100mV / 30V DC Voltage measurement, 20mA DC Current measurement, and switching value measurement, ensuring high accuracy and reliability. In addition to measurement capabilities, the Metravi CAL-400 provides 100mV / 30V DC Voltage Output, 20mA DC Current output, and SIMULATE output, making it a powerful tool for calibration tasks.
It supports manual Step Output, Automatic Waveform Output, and allows for simultaneous display of Voltage (V), Current (mA), and percentage, offering enhanced usability and efficiency. Equipped with a loop detection function, the calibrator can simultaneously provide a 24V Loop Power supply while measuring Current, making it ideal for loop testing in process control applications. With built-in overload protection, the Metravi CAL-400 ensures safety and durability, making it a must-have tool for professionals in industries such as instrumentation, automation, and maintenance
Technical Data For 'Measure' & 'Source':
Measure:
- DC Voltage Range: 100mV: -10.0mV~110.0mV, Resolution 100uV / 30V: -5.00V~30.00V, Resolution 10mV (Accuracy: 0.2%+4)
- DC Current Range: 20mA: 0.00mA~22.00mA, Resolution 0.01mA (Accuracy: 0.2%+4)
Source:
- DC Voltage Range: 100mV: 0.0mV~110.0mV, Resolution 100uV / 10V: 0.00V~11.00V, Resolution 10mV (Accuracy: 0.2%+4)
- DC Current Range: 20mA: 0.00mA~22.00mA, Resolution 0.01mA (Accuracy: 0.2%+4)
- Analogue Transmitter SIMULATE: -20mA: 0.00mA~22.00mA, Resolution 0.01mA (Accuracy: 0.2%+4)
- Loop Power Supply: 24V
- Accuracy: ±10%
- Capacitive Load: ≥ 0.01μF
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Sampling Time | 2-3 times / second |
|---|---|
| Overload Protection | 50mA/30V |
| Overrange Display | OL |
| Power Source | 3 x 1.5V ( LR03/AAA ) Alkaline Batteries |
| Low Battery Indication | Shows Battery Sign |
| Auto Shutdown | After 15 Min of Non-operation |
| Warm-up Time | 10 mins |
| Calibration Cycle | 1 Year |
| Working Environment | 0° ~ 40°C ; below 85% RH (no condensation) |
| Storage Environment | -20° ~ 60°C ; below 90% RH (no condensation) |
| Accuracy Defined as per Environment | 23°C±5°C; below 75% RH (no condensation) |
| Temperature Coefficient | 0.1 × basic precision / °C (temperature range <18°C or >28°C) |
| Ambient Condition for Usage | Indoor and outdoor use (not waterproof), with an elevation of 0~2000 m |
| Power Consumption | When alkaline battery is used: Loop current measurement and DC current output (SOURCE) 20mA (a load of 1000O): approx. 1000mVA Other work function: approx. 300mVA |
| Dimension (mm) | 151 x 75 x 42 mm |
