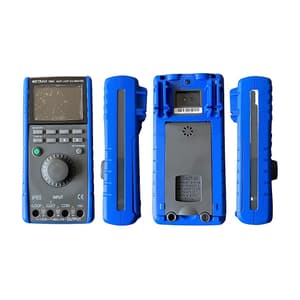

Metravi mV mA Loop Calibrator With Hart Communication, 709H

A reliable, accurate, powerful mV mA Loop Calibrator with HART COMMUNICATOR featuring high accuracy of 0.01%. Save time and get high-quality results. The 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication troubleshooting tool.

In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the mA output on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. 709H will allow virtually any technician to service and support HART devices.

Supports HART general instructions and general application instructions. Able to read the device basic information, perform diagnostic testing and calibration to fine tune most HART transmitter, can store up to 20 HART device configuration file.

Features:

• Compact Loop Calibrator with HART communication
• Able to read basic device information and execute diagnostic tests
• High precision ±0.01%
• High resolution 0.001mA
• Automatic Ramp & Step

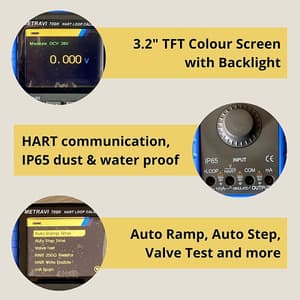

• High visibility 3.2″ TFT colour display with backlight
• Supports SCPI
• Auto Power Off and Low Battery display
• Max. permitted voltage: 30V (between any two terminals or between any terminal and earth ground)
• Operating temperature : 0°C ~ 50°C
• Operating relative humidity: ≤ 80%RH
• Optional: PC infrared communications accessories package, Linear power adapter (DC5V), Hook type tester

Source and Measure:

• Output DCA upto 20mA
• Internal Loop Power Supply 24V
• Loop Current upto 20mA
• Voltage upto 28V
• Current upto 30mA

What's Included In This Package:

• Test Pen
• Industrial-quality Test Lead
• Crocodile Clips
• Quick Guide
• Test Certificate
• User Manual
• Insurance tube

Performance Index:

Output Performance Index (applicable to temperature range from 18°C to 28°C, within one year after calibration)

Input Performance Index(applicable to temperature range from 18°C to 28°C, within one year after calibration)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
