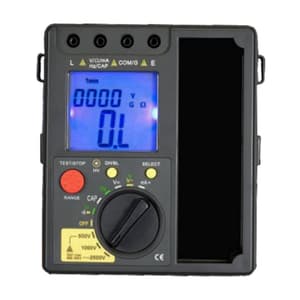

MetroQ 2500V / 40G Ohms Digital Insulation Resistance Tester With Multimeter, MTQ 9025
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 650 g
- Measurement Voltage: 500V / 1000V / 2500V
- Insulation Resistance: 0.5M Ohm ~ 40G Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,814 (Incl. of all taxes)
₹4,927 + ₹887 GST (18%)
3 Business Days
1
90303100
Download Product LeafletNot available
Download MetroQ CatalogueNot available
Download MetroQ CatalogueNot available
Highlights
Multirange Insulation Tester is a handy Product which can be used for Various Application in Electrical Industry.
Features:
- Over Load Protection
- Back light, Function characters Indication
- Exact Insulation Test Voltage Display
Technical Data for Multimeter:
| ACV | 4 / 40 / 400V ±0.8%±5, 700V±1%±5 |
| DCV | 400m / 4 / 40 / 400 ±0.5%±5, 1000V±0.8%±5 |
| DCA | 40 mA / 400mA ±0.8%±5 |
| ACA | 40 mA / 400mA ±1%±5 |
| RESISTANCE | 400 / 4k / 40k / 400kΩ ±0.8%±5, 4MΩ±1%±3, 40MΩ±3%±3 |
| CAPACITOR | 40n / 400n / 4u / 40 uF±3%±5 |
| FREQUENCY | 40 / 400 / 4k / 40k / 400k / 4MHz ±0.5%±3 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Measurement Voltage | 500V / 1000V / 2500V |
|---|---|
| Insulation Resistance | 0.5M Ohm ~ 40G Ohm |
| Accuracy | 400k Ohm ~ 200M Ohm ±3%±5, 200M~4G Ohm ±5%±5, 4G~40G Ohm ±10%±5 |
| Short Circuit Current | 1.5mA or more |
| Measurement Time | 1 / 2 /10 Minutes |
| Display Digits | 3/4 Digits |
| Display Counts (max.) | 3999 Count |
| Continuity Buzzer | Diode Test |
| Dimensions (mm) | 170 × 156 × 64 mm |
