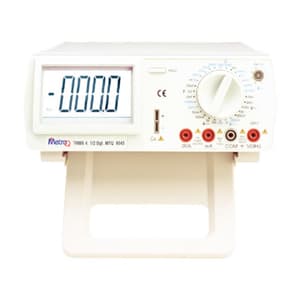

MetroQ 4-1/2 Digit / 19999 Count Bench Type Digital TRMS Multimeter, MTQ 8045
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 1 kg
- Display Digits: 4-1/2 Digits
- Max. Display Count: 19999 Count
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,850 (Incl. of all taxes)
₹7,500 + ₹1,350 GST (18%)
5 Business Days
1
–
Download Product LeafletNot available
Download MetroQ CatalogueNot available
Download MetroQ CatalogueNot available
Highlights
- Diode test
- Triode test
- Continuity Buzzer
- Overload protection
Technical Data:
| Basic Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V | ±(0.05%+3) |
| AC Voltage | 200mV / 2V / 20V / 200V / 750V | ±(0.8%+80) |
| DC Current | 20mA / 200mA / 2A / 20A | ±(0.35%+10) |
| AC Current | 200mA / 2A / 20A | ±(0.8%+80) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ | ±(0.1%+5) |
| Frequency | 20kHz / 200kHz | ±(1.0%+20) |
| Capacitance | 20nF / 2uF / 200uF | ±(3.5%+20) |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digits | 4-1/2 Digits |
|---|---|
| Max. Display Count | 19999 Count |
| Input Impedance | 10M Ohm |
| AC Frequency Response | 3 times/s |
| Sampling Rate | 40 ~ 50kHz |
| Operation Way | Manual Range |
| Power | AC220V/110V 50Hz/60Hz |
| Dimensions (mm) | 245×220×82 mm |
