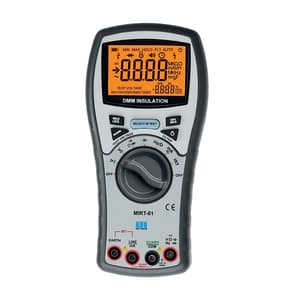

Motwane 6000 Count Digital Multimeter Insulation Tester, MIRT-61
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 620 g
- Display: 6000 Counts (LCD with Amber Backlit)
- Operation Temperature: 0 - 50°C
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹36,108 (Incl. of all taxes)
₹30,600 + ₹5,508 GST (18%)
MRP was MRP ₹36,000
Save 15%
7 Business Days
1
90303100
Download Product LeafletNot available
Download Motwane CatalogueNot available
Download Motwane CatalogueNot available
Highlights
The Motwane multipurpose tester Model MIRT-61 is a Versatile, battery operated Digital insulation tester with true RMS industrial grade multimeter features best suited for industrial preventive maintenance. With test voltage range up to 1KV , highest insulation resistance range of 6G Ohm and multi featured function of RMS multimeter (i.e. AC/DC 1000V) ; makes it a superior offering for Industry and Service segment. It is designed predominantly for low voltage insulation resistance testing in maintenance and services, which involves the applications like Cables/Wires, Rotating Machines, LT transformers, Switchgears and Industrial installations. It is designed to suit the extreme environment conditions. Save your operating cost and test more with this single box design rather buying two different products.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Multi-featured single box design
- Multipurpose model - More Saving & More Testing
- Wide IR range up to 6GΩ, suitable for all LT applications
- Selectable voltage facility 50, 100, 250, 500 &1000V
- Maximum test current of 1mA
- Industrial Grade True RMS Multimeter functions
- Voltage Measurement up to 1000V AC/DC
- Dual Display LCD with Amber backlit
- Auto power off facility, Reading Hold / Lock, Min/Max, FLT (Filter)
Applications:
- Ideal for Insulation Resistance Measurement during maintenance for Electrical Equipment (Motors, Transformers, Machines & Switchgears etc.)
- Electrical Wire/Cables for Distribution Networks
- Control Panels
- Electrical Contractors
- Industrial, Commercial & Residential Installations
- Railways applications & Telecom applications
Technical Data:
| Resistance Range | Range | 600Ω - 60MΩ (0.1Ω Resolution) |
| Accuracy |
|
|
| Capacitance Range | Range | 6nF - 60mF (0.001nF Resolution) |
| Accuracy |
|
|
| Diode Test | Range | 6V (1mV Resolution) |
| Continuity Test | Range | 600.0Ω (0.1Ω Resolution) Meter Beeps at <60Ω Approx. |
| Frequency Ranges (Auto Ranging Only) | Range | 60Hz - 60MHz |
| Resolution | 0.01Hz | |
| Accuracy | ±(0.1%+3) | |
| Overload Protection | 1000V DC/AC rms | |
| Duty Cycle Measurement | Range | 0.1% - 99.9% (with resolution 0.1%) |
| Accuracy | <±(0.5%+3 Digit) |
Package Content:
- 1x DIgital Multimeter Insulation Tester
- 1 Set x Test lead set Red & Black one end with shrouded banana 4 mm & Another with Crocodile Clip
- 1x Test lead Green, one end with shrouded banana 4 mm & another with Crocodile Clip
- 1 Set x Test Lead Set with One End Pointed tip & another with 4 mm shrouded banana
- 6x Batteries 1.5V AA Alkaline (IEC LR6) (Duracell Only)
- 1x Instruction Manual
- 1x Carrying Bag
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 6000 Counts (LCD with Amber Backlit) |
|---|---|
| Operation Temperature | 0 - 50°C |
| Storage Temperature | -20 ~ 60°C |
| Relative Humidity | 80%RH 5 - 31°C, 50%RH 31 - 40°C, Non-condensing |
| Fuse Protection for 'mA' Input Terminal | 0.8A/250V Fast Blow Type, Ceramic Fuse |
| IP Rating | IP54 (Dust & Water Resistance) |
| Directives for CE Certification | LVD: 2006/95/EC, EMC: 2004/104/EC |
| Measurement Category | CAT IV (1000V) Reinforced Insulation |
| Relevant Standard (S) | EN61010-1, EN61326-1 |
| Polarity | Automatic |
| Display Update Rate | 3 Times Per Second Nominal |
| Ranges | DCV, ACV, Resistance, Capacitance, Frequency, AC/DC Current & IRT |
| Indications | Low Battery Indication below 6.5V Approx. |
| Auto Power Off | After 10 Minutes |
| Dimensions (mm) | 102 x 209 x 44 mm |
