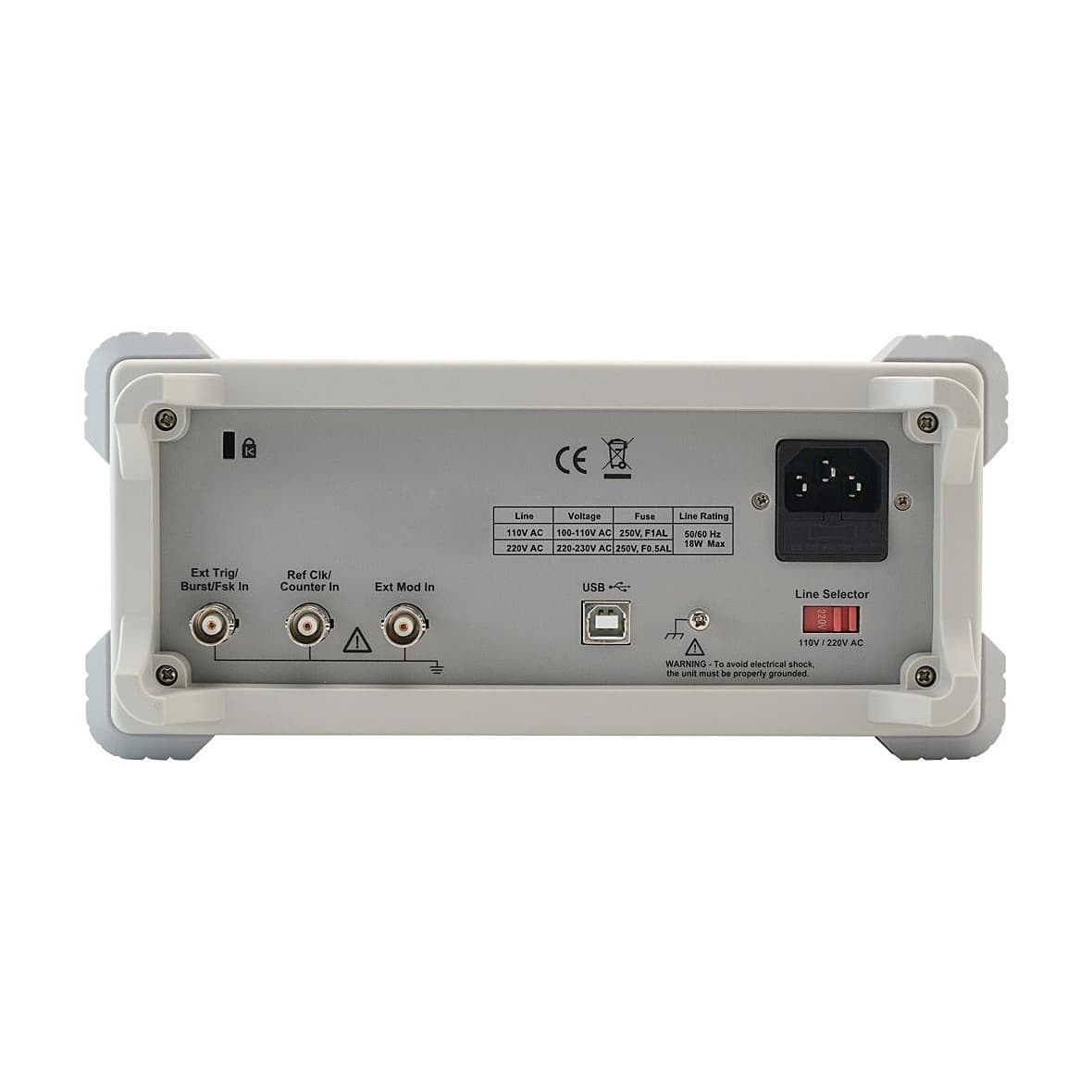

Owon 10MHz / 125MS/s Arbitrary Waveform Function Generator, AG 1011F
Roll over the image to zoom in
Key Features
- Product Type: Function Generators
- Weight: 3 kg
- Frequency output: 10MHz
- Sample Rate: 125MS/s
- Channel: Single + Trigger
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹20,658 (Incl. of all taxes)
₹17,507 + ₹3,151 GST (18%)
MRP was MRP ₹21,350
Save 18%
5 Business Days
1
85432090
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- Arbitrary Wave Function Generator, 10 MHz, 4" Coloured LCD, USB+Software
- Advanced DDS technology, 10MHz frequency output
- 125MS/s sample rate, and 1μHz frequency resolution
- Vertical Resolution : 14 bits, and 8K arb waveform length
- Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
- SCPI, and LabVIEW supported
- 4'' high resolution (480 x 320 pixels) LCD
- Could work with OWON SDS Series DSO smoothly
Application:
- Design and debug
- Circuit function test
- Education and training

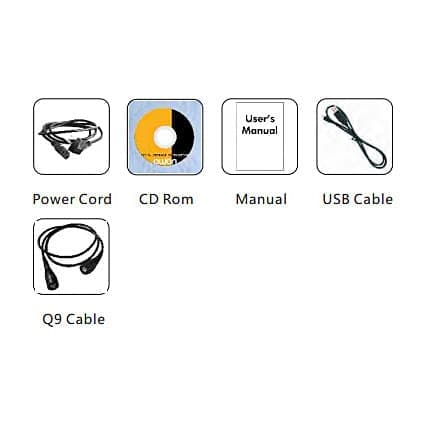

What's Included In This Package:
- Power Cord
- CD Room
- Manual
- USB Cable
- Q9 Cable
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Frequency output | 10MHz |
|---|---|
| Sample Rate | 125MS/s |
| Channel | Single + Trigger |
| Vertical Resolution | 14 bits |
| Communication Interface | USB device |
| Display | 4 inch (480 x 320 pixels) LCD |
| Dimension (W x H x D) | 235 x 110 x 295 (mm) |
| Standard Waveform | Sine, Square, Pulse, Ramp, and Noise |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform |
| Sine | 1μHz - 10MHz |
| Square | 1μHz - 5MHz |
| Pulse | 1μHz - 5MHz |
| Ramp | 1μHz - 1MHz |
| Noise | 5MHz (-3dB) (typical) |
| Amplitude | 1m Vpp - 12.5 Vpp (50O), / 1m Vpp - 25 Vpp (high impedance) |
| Resolution | 1m Vpp, or 4 digits |
| DC Offset Range (AD+DC) | ±6.25V (50O), ±12.5V (high impedance) |
| DC Offset Range Resolution | 1mV, or 4 digits |
| Load Impedance | 50O (typical) |
| Wave Length | 2 pts to 8K pts |
| Non-volatile Memory | 64M byte |
| Modulation Waveform | AM, FM, PM, FSK, Sweep, and Burst |
| Modulation Frequency | 2mHz to 20.00KHz / (FSK 2mHz - 100KHz) |
| Input Impedance | 50 kO |
| Max Input Voltage | 2.2Vpp |
| Max Output Voltage | 22 Vpp |
| Output Slew Rate | 10V/us |
| Max Output Power | 10W |
| Output Impedance | <2 O |
| Gain | X10 |
| Offset | <7% |
| Bandwidth (at full power) | DC 100kHz |
| Type | external modulation input, / external trigger input, / external reference clock input External Frequency Measurement: supported, ranging from 100 MHz till 200 MHz |
