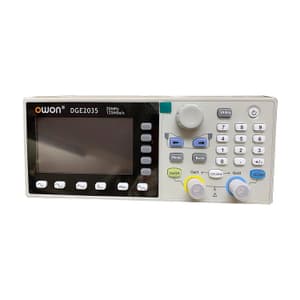

Owon 35MHz / 125MS/s Arbitrary Waveform Function Generator, DGE 2035
Roll over the image to zoom in
Key Features
- Product Type: Function Generators
- Frequency Output: 35MHz
- Sample Rate: 125MSa/s
- Channel: 2
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹17,901 (Incl. of all taxes)
₹15,170 + ₹2,731 GST (18%)
MRP was MRP ₹18,500
Save 18%
5 Business Days
1
–
Download Product LeafletNot available
Download OWON CatalogueNot available
Download OWON CatalogueNot available
Highlights
- 35MHz/70MHz frequency output
- Max 300MSa/s Sample rate,Vertical resolution 1μHz
- 14 bits Vertical Resolution,8K Arb waveform length

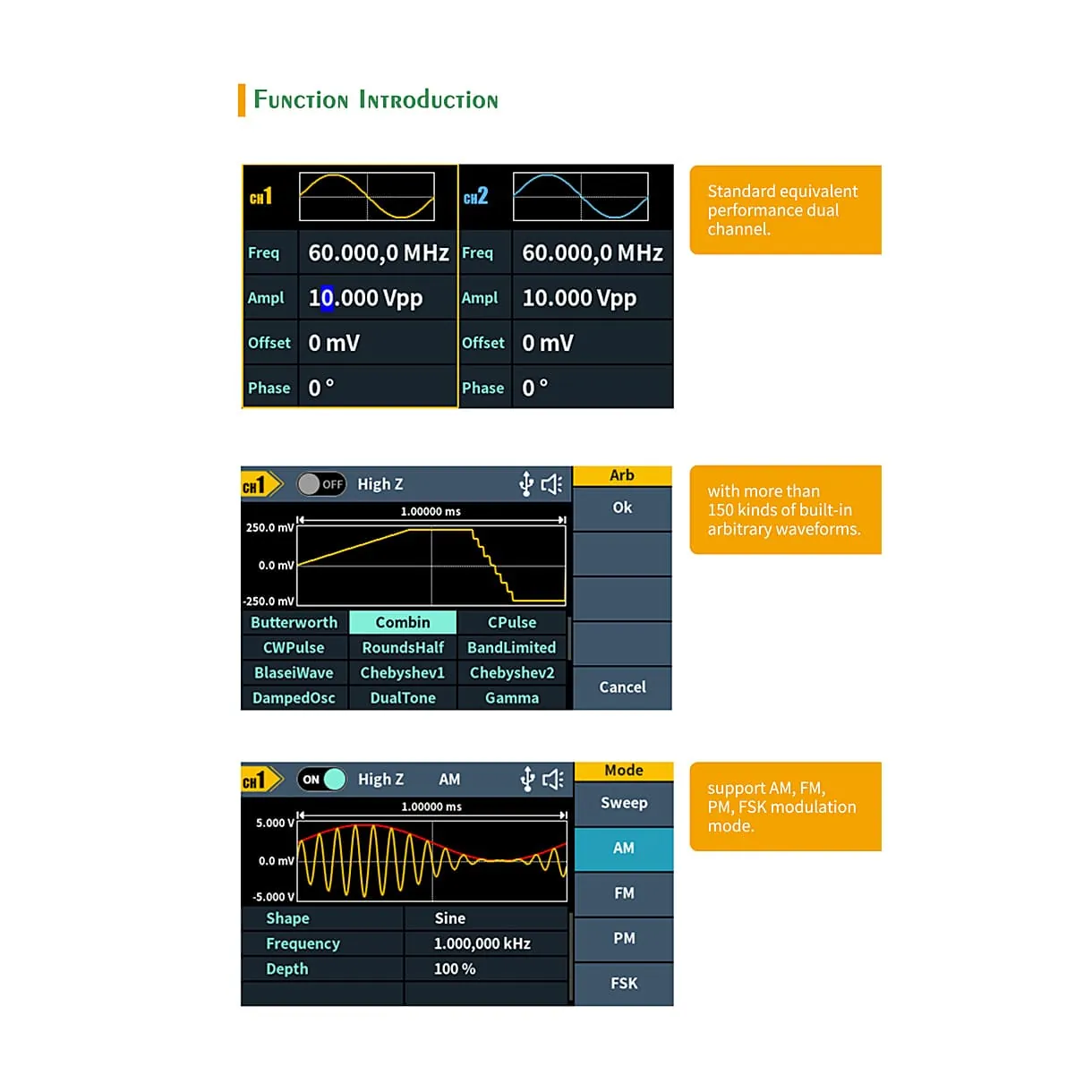

- Comprehensive waveform output : 5 basic waveforms and 150 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
- SCPI supported
Technical Data:
| Amplitude | |
| into 50Ω Load | 1mVpp - 20Vpp (≤10MHz) 1mVpp - 4Vpp (≤70MHz) |
| DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50Ω |

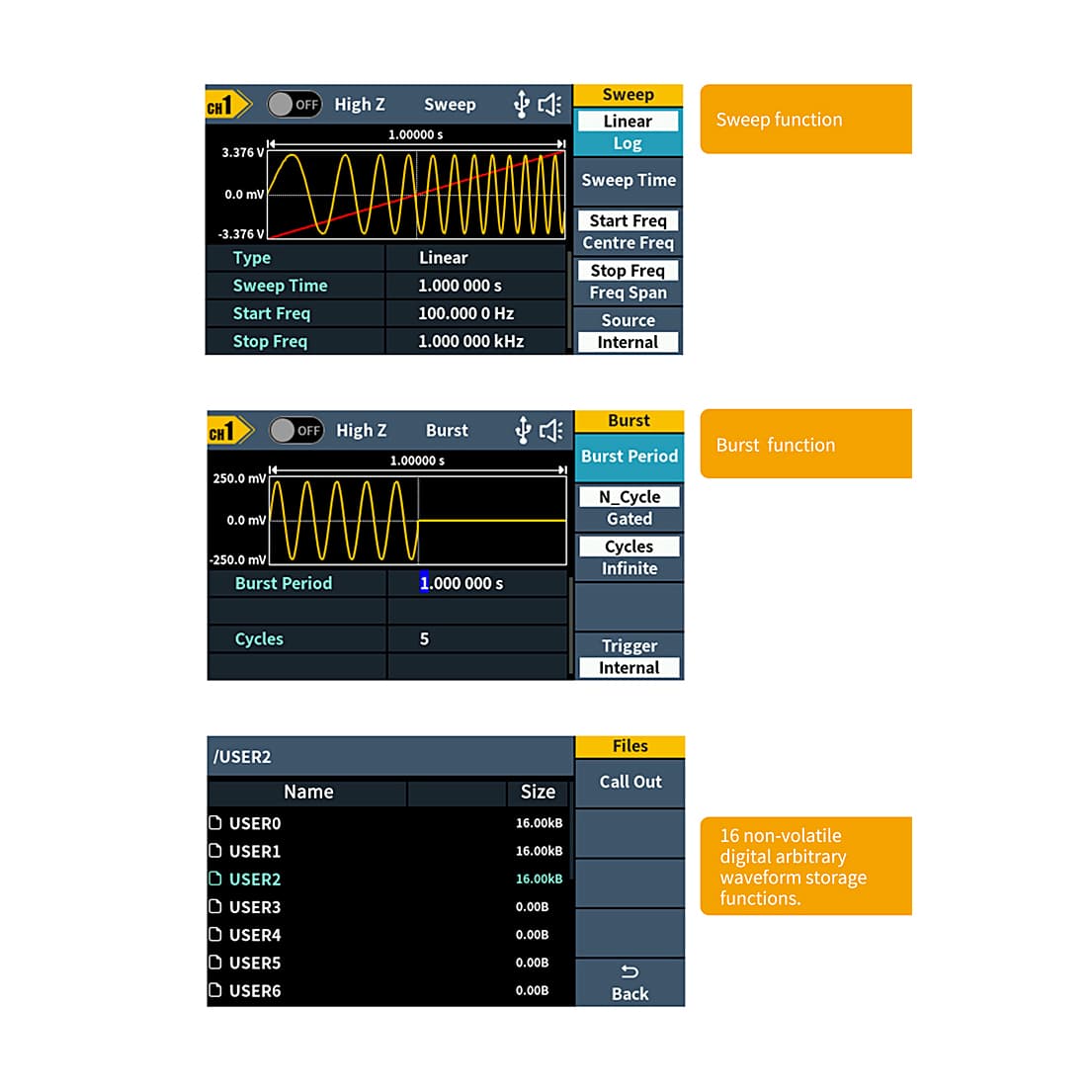

| DC offset Resolution | 1mV or 4digits |
| Load Impedance | 50Ω (typical) |
| DC offset Accuracy | ±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%) |
| Modulation | |
| Type | AM, FM, PM, FSK, sweep, Burst |
| Internal Modulation Frequency | 2 mHz to 100 kHz |
| Sweep | |
| Carrier | Sine, rectangular wave, ramp wave, arbitrary wave (Except DC) |
| Minimum/Maximum Starting Frequency |
2mHz (minimum) / maximum frequency of corresponding carrier |
| Minimum/Maximum Termination Frequency |
2mHz(minimum) / maximum frequency of corresponding carrier |
| Trigger Source | internal, manual |
| Burst | |
| Waveform | Sine wave, square wave, ramp wave, pulse wave & arbitrary wave (Except DC) |
| Types | N-Cycle |
| Trigger source | Internal, manual |
| Carrier frequency | 1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2 |
Package Content:
- Waveform Function Generator
- Quick Guide
- Q9 Cable
- Power Adapter
- BNC to Alligator Clip
- USB to DC Cord
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications

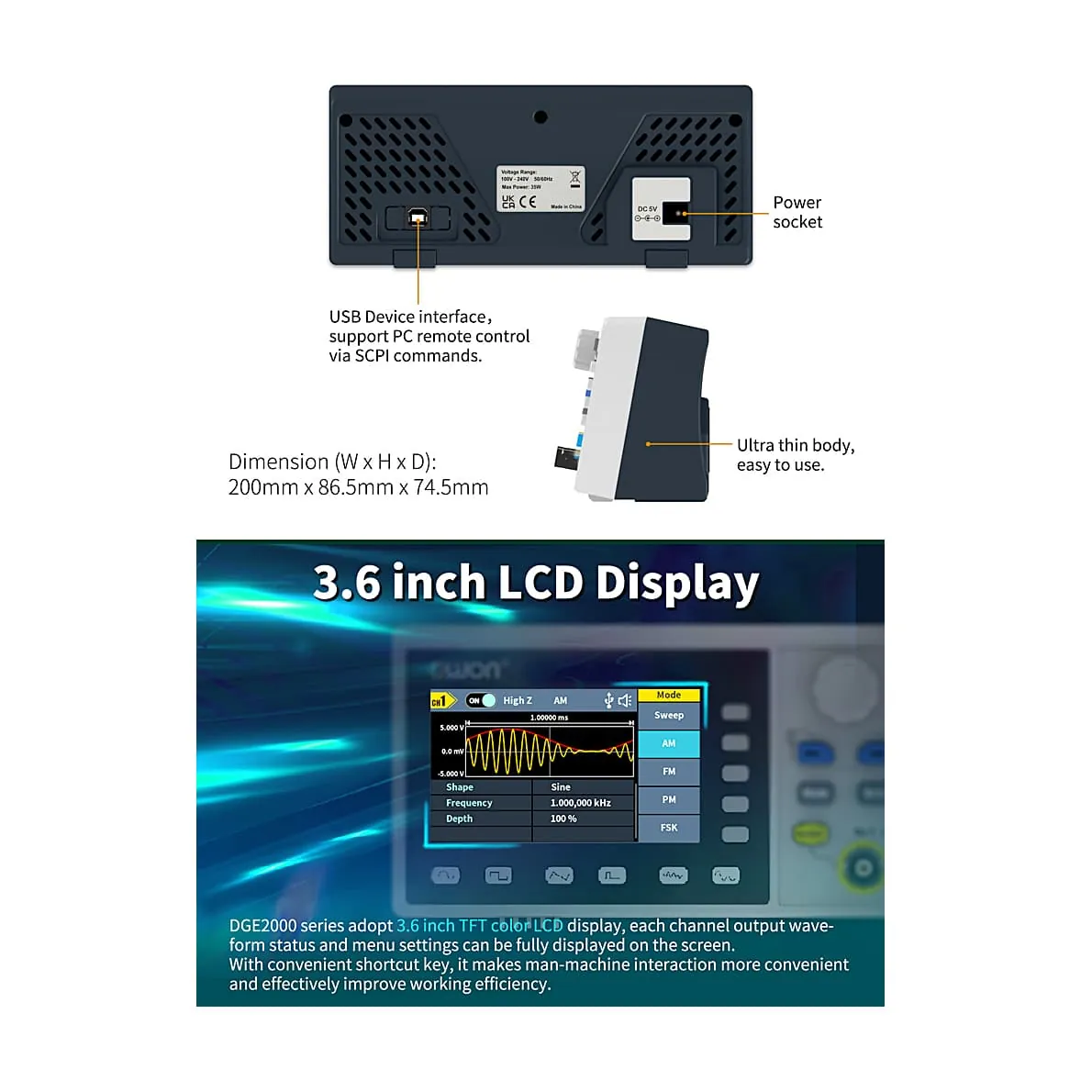

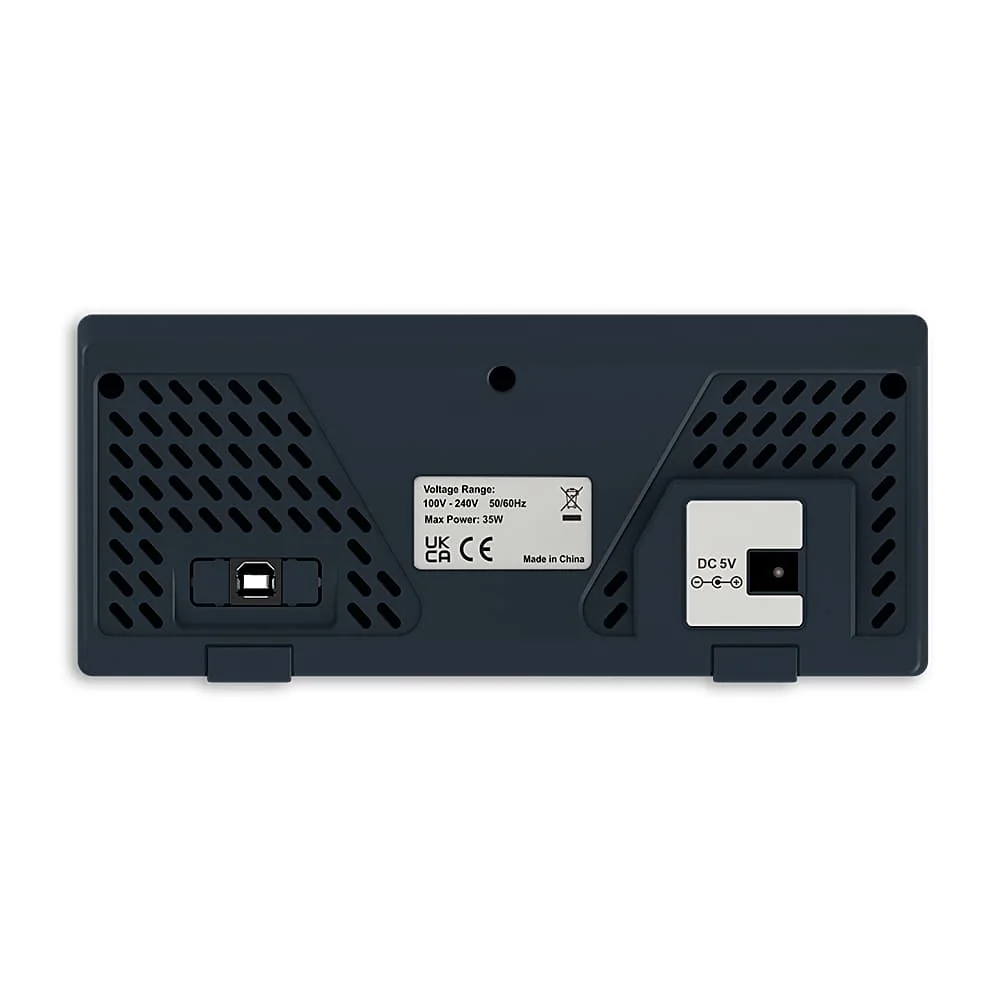

| Frequency Output | 35MHz |
|---|---|
| Sample Rate | 125MSa/s |
| Channel | 2 |
| Vertical Resolution | 14 Bits |
| Standard Waveform | Sine, Square, Pulse, Ramp & Nois |
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(X)/x, Step Wave & Others, Total 150 Built-in Waveforms, And User-defined Arbitrary Waveform |
| Frequency | 1μHz - 35MHz (Sine) / 1μHz - 15MHz (Square) / 1μHz - 15MHz (Pulse) / 1μHz - 1MHz (RAMP) |
| Frequency Noise | 20MHz (-3dB, Typical) |
| Frequency Arbitrary Waveform | 1μHz - 10MHz |
| Frequency Resolution | 1 μHz or 7 Significant Figures |
| Frequency Stability | ±30 ppm at 0±40°C |
| Frequency Aging Rate | ±30 PPM Per Year |
| Arbitrary Waveform Length | 2 - 8K Points |
| Arbitrary Sample Rate | 125Ma/s |
| Display | 3.6-inch TFT LCD with resolution 480 x 272 |
| Communication Interface | USB Device |
| Dimensions (W×H×D) | 200mm x 68.5mm x 74.5mm |
