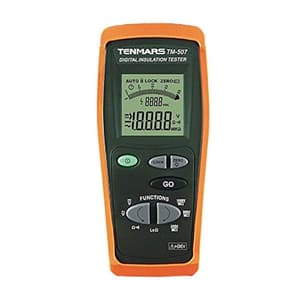

Tenmars 250V - 1000V Digital Insulation Tester, TM-507
Roll over the image to zoom in
Key Features
- Product Type: Insulation Testers
- Weight: 450 g
- Insulation Test Voltage: 250V / 500V / 1000V
- Insulation Resistance Range: 4M to 4000M Ohm
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹25,488 (Incl. of all taxes)
₹21,600 + ₹3,888 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Tenmars CatalogueNot available
Download Tenmars CatalogueNot available
Highlights
This product conforms to the prescriptions of the European directive on low voltage 73/23/EEC (LVD) and to EMC directive 89/336/EEC, amended by 93/68/EEC.
Features:
- Conversion Average value
- Display refreshing rate 2 times per second
- Automatic Polarity Indication.
- Low battery indication.
- Continuity Test.
- Auto Discharge.
- Auto Power Off.
- Autorange
Technical Data:
| Voltage measurement | |||||
| Range | Resolution | Accuracy | Input Impedance | Overload Protection | |
| DC | 0.1 ~ 600.0V | 0.1V | ±(0.5%rdg + 1dgt) | 3MΩ | 605V AC max RMS |
| AC | ±(0.8%rdg + 4dgt) |
| Resistance measure / Test Continuity with buzzer | |
| Range | 0.1 - 199.9Ω |
| Resolution | 0.1Ω |
| Accuracy | ±(2.0% rdg + 3dgt) |
| Overload protection | 605V AC max RMS per 1 minute |
| Ω0.2A: Continuity of protection conductors | |
| Range | 0.01 - 19.99Ω |
| Resolution | 0.01Ω |
| Accuracy | (2.0% rdg + 3dgt) |
| Overload protection | 605V max RMS |
| Test voltage | Range | Resolution | Accuracy | Overload Protection |
| 250V | 0.001 - 0.100MΩ | 0.001MΩ | ±10 dgt | 605V max RMS |
| 0.101 – 3.999MΩ | 0.001MΩ | ±(2.0% rdg+5 dgt) | ||
| 4.00- 39.99MΩ | 0.01 MΩ | |||
| 40.0 – 399.9MΩ | 0.1 MΩ | ±(5.0% rdg+5 dgt) | ||
| 400 –1000MΩ | 1MΩ | |||
| 500V | 0.001 - 0.250MΩ | 0.001MΩ | ±15dgt | |
| 0.251 – 3.999MΩ | 0.001MΩ | ±(2.0% rdg+5 dgt) | ||
| 4.00- 39.99MΩ | 0.01 MΩ | |||
| 40.0 – 399.9MΩ | 0.1MΩ | |||
| 400- 2000MΩ | 1MΩ | ±(5.0% rdg + 5 dgt) | ||
| 1000V | 0.001 - 0.250Mv | 0.001MΩ | ±15dgt | |
| 0.251 – 3.999Mv | 0.001MΩ | ±(2.0% rdg+5 dgt) | ||
| 4.00- 39.99MΩ | 0.01 MΩ | |||
| 40.0 – 399.9M | 0.1Mv | |||
| 400 - 1000MΩ | 1MΩ | ±(3.0% rdg+5 dgt) | ||
| 1000 - 4000Mv | 1MΩ | ±(5.0% rdg+10 dgt) |
Test current:
- >200mA DC up to 5 Ohm (measuring cables resistance included)
- >45mA DC over 5Ω (measuring cables resistance included)
Measures high insulation resistance with auto range:
- 250V: 4MOhm to 1000MOhm
- 500V: 4MOhm to 2000MOhm
- 1000V: 4MOhm to 4000MOhm
Package Content:
- Digital Insulation Tester
- Batteries 1.5 V – LR6 – AA – AM3 – MN 1500
- Carrying case.
- 2-wire ending with 2 safety bananas mod. (TL-20UL.)
- 2 alligator clips.
- 1 test probe mod (TL-40UL)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Insulation Test Voltage | 250V / 500V / 1000V |
|---|---|
| Insulation Resistance Range | 4M to 4000M Ohm |
| AC/DC Voltage | 0 to 600V |
| Display | 3-3/4 Digit LCD Display |

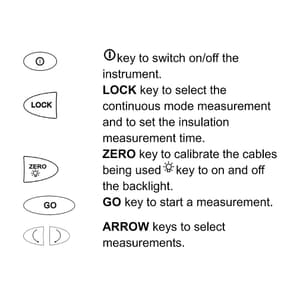

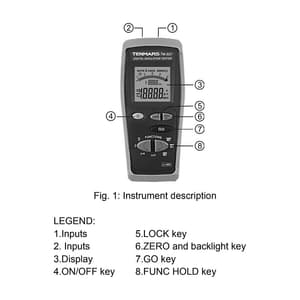

| Function Keys | POWER, GO, ZERO, LOCK, BACKLIT |
| Open Circuit Voltage | <1.3 x V0 |
| Accuracy of Nominal Voltage | –0% +10% |
| Short Circuit Current | <3.0mA |
| Nominal Testing Current | 1mA @ 1KOhm x V (1mA @ 500KOhm) |
| Working Temperature Range | 23°C±5°C, below 80%RH |
| Overload Protection | 605V max RMS |
| Max Crest Factor | 2 |
| Dimensions (L x W x H) | 240 x 100 x 45 mm |
