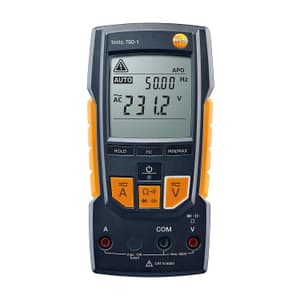

Testo 4000 Count Digital Multimeter, Testo 760-1
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 340 g
- Display: 4000 Count
- Operating Humidity: 0 to 80%RH
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹11,595 (Incl. of all taxes)
₹9,826 + ₹1,769 GST (18%)
MRP was MRP ₹11,560
Save 15%
3 Business Days
1
90303100
Download Testo CatalogueNot available
Highlights
Features:
- Easy, reliable operation through automatic measurement parameter detection
- Prevents incorrect settings
- Suitable for almost all electrical measuring tasks
- Clear, illuminated display
Technical Data:
| Measuring range | Resolution | Accuracy | |
| DC Voltage | 1mV to 600V | max. 1 mA | ±(0.8% of mv + 3 Digits) |
| AC Voltage | 1 mV to 600 V | max. 1.0 mV | ± (1.0% of mv + 3 Digits) |
| DC Current | 1 mA to 10 A | max. 1 mA | ± (1.5 % of mv + 5 Digits) |
| AC Current | 1 mA to 10 A | max. 1 mA | ± (1.0 % of mv + 3 Digits) |
| Resistance | 0.1 Ohm to 40.00 MOhm | max. 0.1 Ohm | ± (1.5 % of mv + 3 Digits) |
| Capacitance | 0.01 nF to 100 μF | max. 0.01 nF | max. ± (1.5 % of mv + 5 Digits) |
| Frequency | 0.001 Hz to 512.0 kHz | max. 0.001 Hz | ± (0.1 % of mv + 1 Digit) |
Package Contents:
- 1x Digital Multimeter
- 3 AAA Micro Batteries
- 1 Set of measuring cables (0590 0010)
- Instruction manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display | 4000 Count |
|---|---|
| Operating Humidity | 0 to 80%RH |
| Operating Temperature | -10 to +50°C |
| Protection Class | IP64 |
| Standards | EN61326-1; EN61010-2-033; EN61140 |
| Battery Type | 3 AAA Micro Batteries |
| Display Size | 2 Lines |
| Display Type | LCD |
| Interface | 4 Measuring Jacks |
| Storage Temperature | -15 to +60°C |
| Overvoltage Category | CAT III 600V |
| Authorizations | CSA; CE |
| Internal Resistance | 11 MOhm (AC / DC) |
| Dimensions (mm) | 167 x 85 x 45 mm |
| Part Number | 0590 7601 |
