Testo 6000 Count TRMS Digital Multimeter, Testo 760-3

Shop all Testo

SKU: ME.EL.MU.00201

Model: 0590 7603

Roll over the image to zoom in


Key Features

  • Product Type: Multimeter
  • Weight: 340 g
  • Display: 6000 Count
  • Operating Humidity: 0 to 80%RH
See all product information

ToolBuy Benefits

₹25,536 (Incl. of all taxes)

₹21,641 + ₹3,895 GST (18%)

MRP was MRP ₹25,460

Save 15%



3 Business Days

1

90303100

Download Product LeafletNot available
Download Testo CatalogueNot available

Highlights

The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings. A voltage range of up to 1,000 V, a frequency range of up to 60 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors. Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).


Features:

  • Easy, reliable work thanks to automatic measurement parameter detection
  • Comfortable, one-handed operation without any dial
  • Voltage range up to 1,000 V
  • Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapter


Technical Data:

  Measuring range Resolution Accuracy
Temperature - TC Type K (NiCr-Ni) -20 to +500°C 0.2°C ±1°C (0 to +100°C)
DC Voltage 0.1mV to 1000V max. 0.1mV ± (0.8% of mv + 3 Digits)
AC voltage 0.1mV to 1000V max. 0.1mV ± (1.0% of mv + 3 Digits)
DC Current 0.1μA to 10A max. 0.1μA ± (1.5% of mv + 5 Digits)
AC Current 0.1μA to 10A max. 0.1μA ± (1.5% of mv + 5 Digits)
Resistance 0.01Ohm to 60.00MOhm max. 0.01Ohm ± (1.5% of mv + 3 Digits)
Capacitance 0.001nF to 60mF max. 0.001nF max. ± (1.5% of mv + 5 Digits)
Frequency 0.1Hz to 60.00MHz max. 0.1Hz ± (0.1% of mv + 1 Digit)


Package Content:

  • 1x TRMS Multimeter
  • 3x AAA Micro Batteries

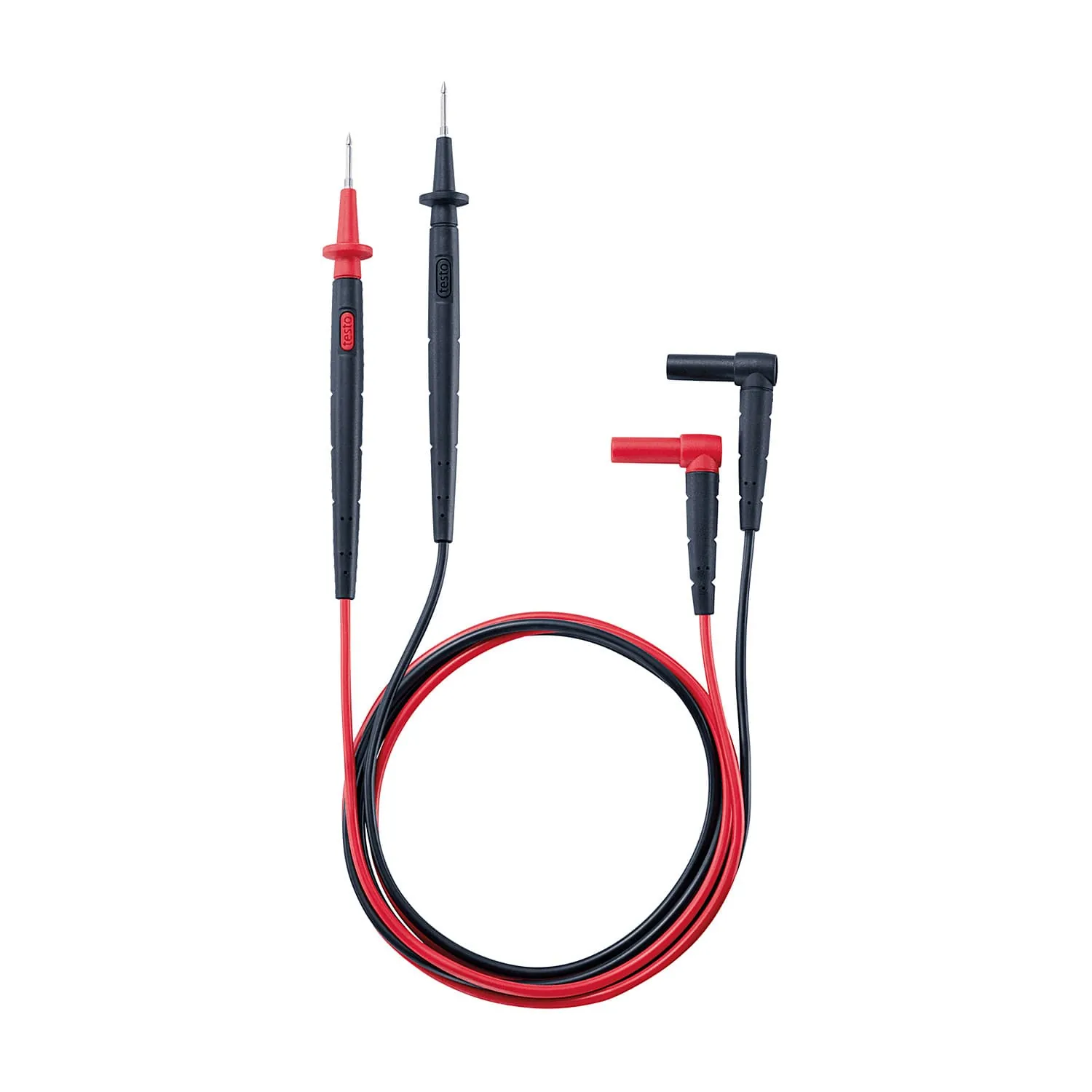

  • 1 Set of measuring cables (0590 0010)
  • Instruction Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

Technical specifications for Testo 6000 Count TRMS Digital Multimeter, Testo 760-3
Display6000 Count
Operating Humidity0 to 80%RH
Operating Temperature-10 to +50°C
Protection ClassIP64
StandardsEN61326-1; EN61010-2-033; EN61140
Battery Type3 AAA Micro Batteries
Display Size2 Lines
Display TypeLCD
Interface4 Measuring Jacks
Storage Temperature-15 to +60°C
Overvoltage CategoryCAT IV 600V; CAT III 1000V
AuthorizationsCE; CSA
Internal Resistance11 MOhm (AC / DC)
Dimensions (mm)167 x 85 x 45 mm
Part Number0590 7602
