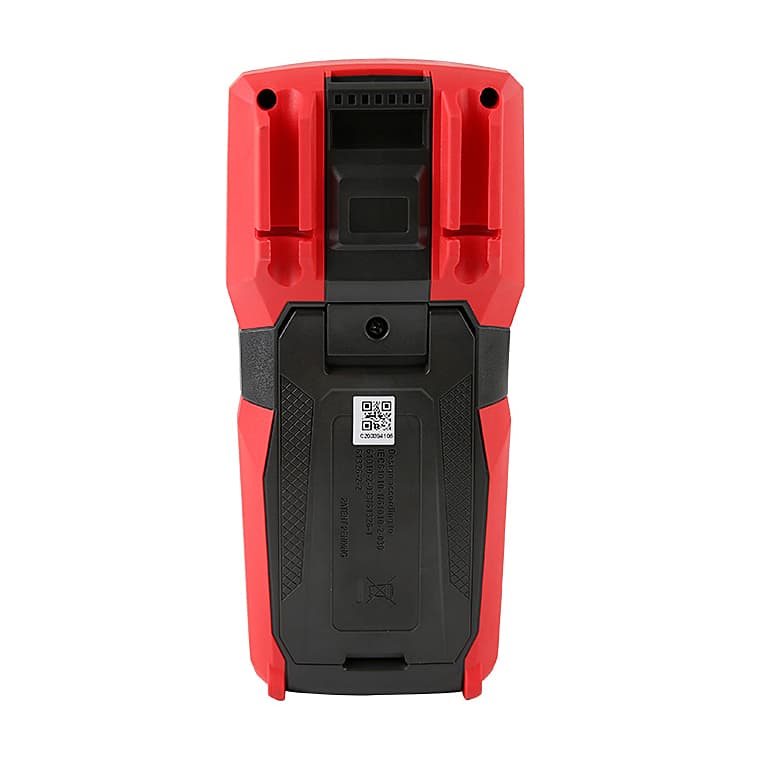

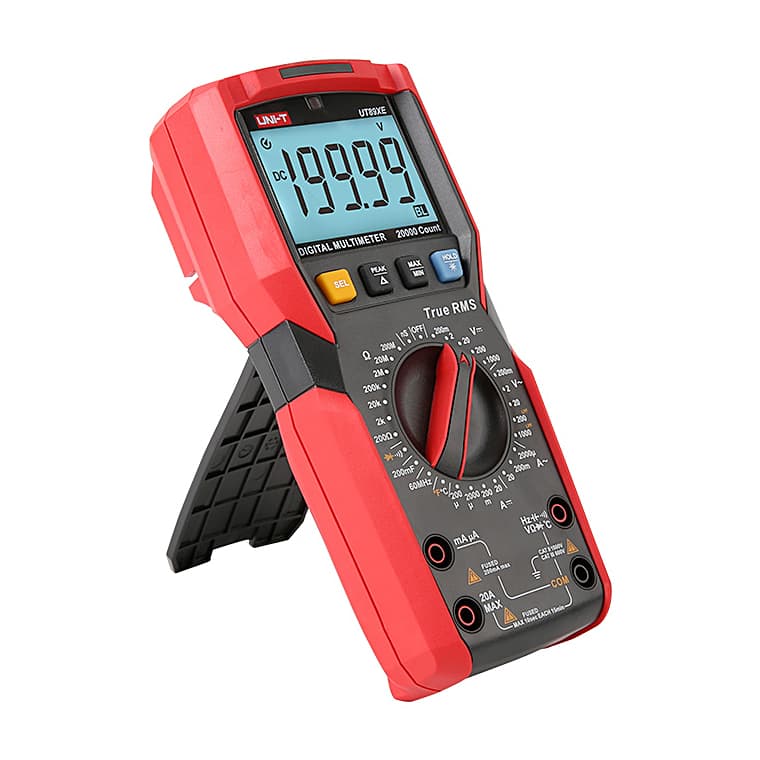

UNI-T 20000 Count Professional True RMS Digital Multimeter, UT89XE
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 345 g
- Display Count: 20000 count
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹5,617 (Incl. of all taxes)
₹4,760 + ₹857 GST (18%)
MRP was MRP ₹5,600
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights
It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- True RMS
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight; Auto backlight
- Audible/visual alarm
- MAX/MIN
- Peak Hold
- LPF measurement
Applications:
- Voltage measurement
- Capacitance measurement
- Temperature measurement
- Resistance measurement
Technical Data:
| Range | Accuracy | |
| DC voltage (V) | 200mV / 2V / 20V / 200V / 1000V | ±(0.05%+5) |
| AC voltage (V) | 200mV / 2V / 20V / 200V / 1000V | ±(0.8%+5) |
| DC current (A) | 2000μA / 200mA / 20A | ±(0.5%+4) |
| AC current (A) | 2000uA / 200mA / 20A | ±(1.5%+15) |
| Resistance (Ω) | 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ / 200MΩ | ±(0.4%+5) |
| Capacitance (F) | 200mF | ±(4%+50) |
| Conductance (ns) | 200nS | ±(1.2%+50) |
| Frequency (Hz) | 60MHz | ±(0.1%+3) |
| Temperature (°C) | -40°C ~ 1000°C | ±(1%+10) |
| Temperature (°F) | -40°F ~ 1832°F | ±(1.5%+10) |
Package Content:
- 1x True RMS Digital Multimeter
- 4x 1.5V battery (R03)
- Test lead
- K-type temperature probe
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 20000 count |
|---|---|
| Voltage | 1000V (AC/DC) |
| Current | 20A (AC/DC) |
| Resistance (Ohm) | Max. 200M Ohm |
| Capacitance (F) | 200mF |
| Conductance (ns) | 200nS |
| Frequency (Hz) | 60MHz |
| Display Size | 61 x 36 mm |
| Power Supply | 4x 1.5V Batteries (R03) |
| Dimensions (mm) | 189 x 89 x 53 mm |
