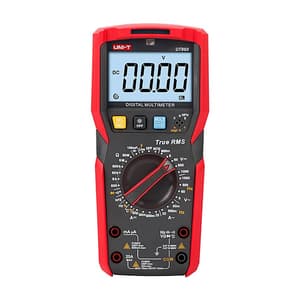

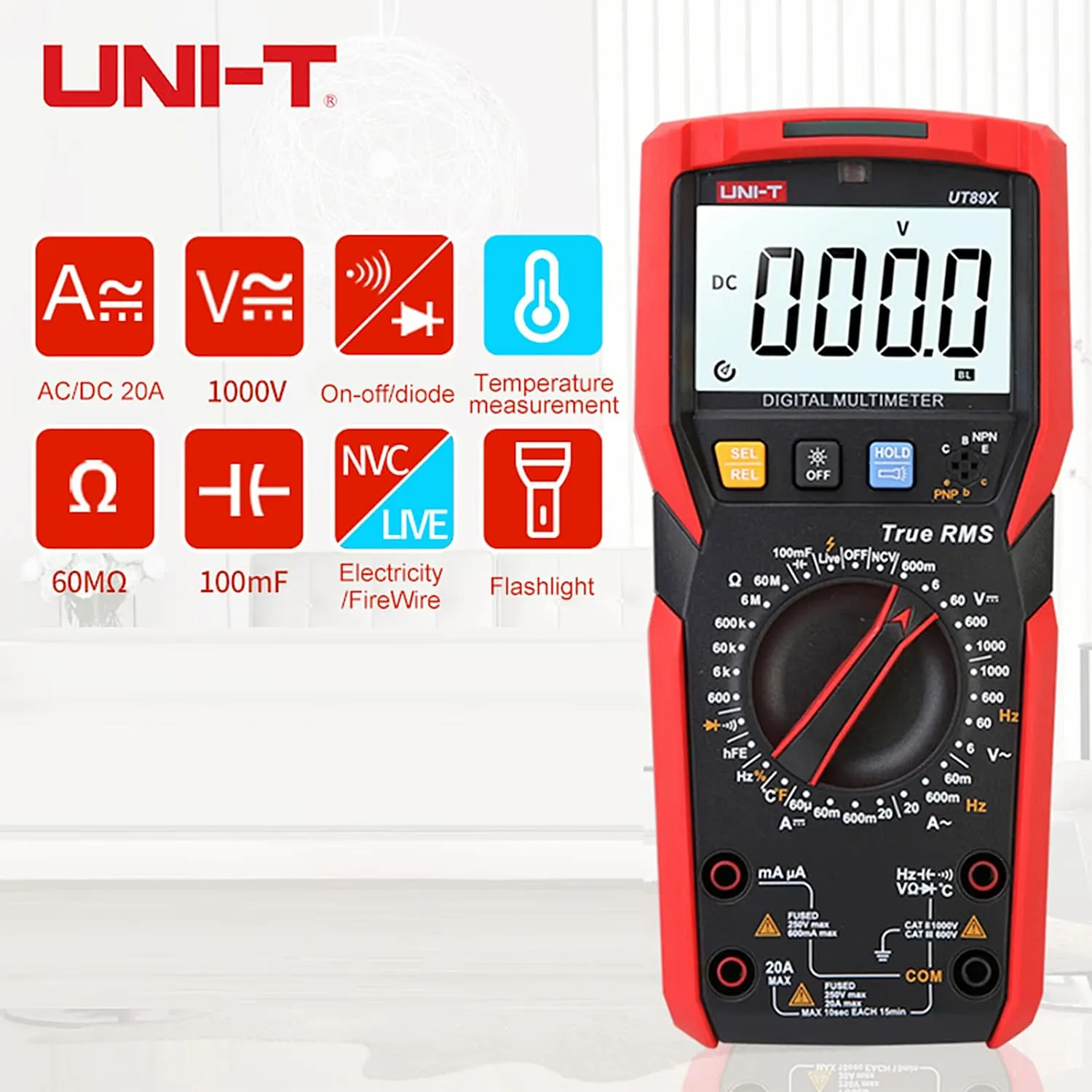

UNI-T 3-5/6 Digit / 6000 Count True RMS Digital Multimeter, UT89X
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 345 g
- Display Digit: 3-5/6 Digit
- Display Count: 6000 count
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹2,458 (Incl. of all taxes)
₹2,083 + ₹375 GST (18%)
MRP was MRP ₹2,450
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available
Highlights

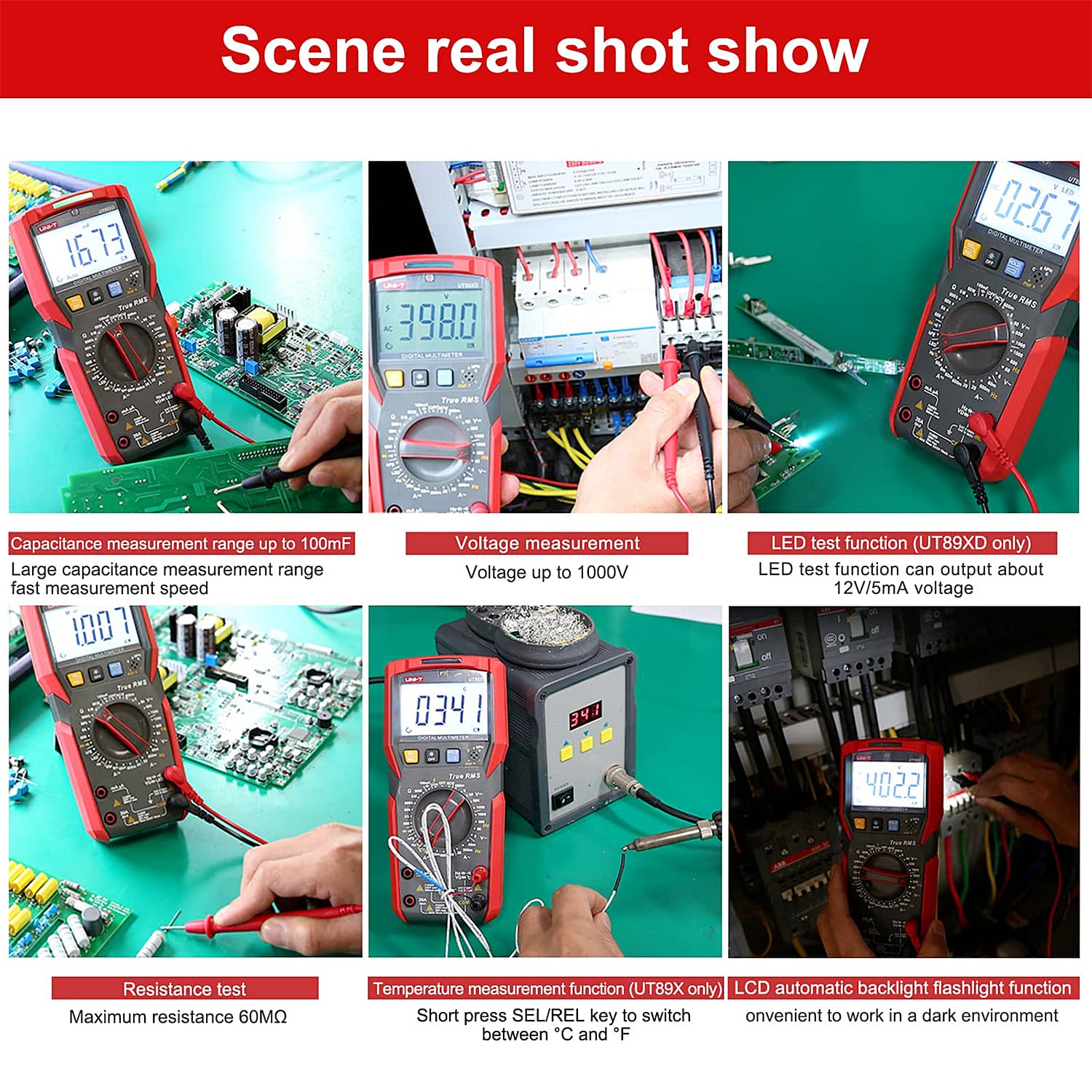

UT89X is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- True RMS
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight; Auto backlight
- Live wire test
- Transistor Hfe
- Dual range NCV test
- Flashlight
Technical Data:
| Range | Accuracy | |
| DC voltage (V) | 600mV / 6V / 60V / 600V / 1000V | ±(0.5%+2) |
| AC voltage (V) | 6V / 60V / 600V / 1000V | ±(0.8%+5) |
| DC current (A) | 60µA / 60mA / 600mA / 20A | ±(0.8%+8) |
| AC current (A) | 60mA / 600mA / 20A | ±(1%+12) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |
| Capacitance (F) | 100mF | ±(2.5%+20) |
| Frequency (Hz) | 9.999Hz / 9.999MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |
| Temperature (°C) | -40°C ~ 1000°C | ±(2%+4) |
| Temperature (°F) | -40°F ~ 1832°F | ±(2%+8) |
Package Content:
- 1x True RMS Digital Multimeter
- 4x 1.5V battery (R03)
- Test lead,
- K-type temperature probe,
- English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Digit | 3-5/6 Digit |
|---|---|
| Display Count | 6000 count |
| Voltage | 1000V (AC/DC) |
| Current | 20A (AC/DC) |
| Display Size | 61 x 36 mm |
| Power Supply | 4x 1.5V batteries (R03) |

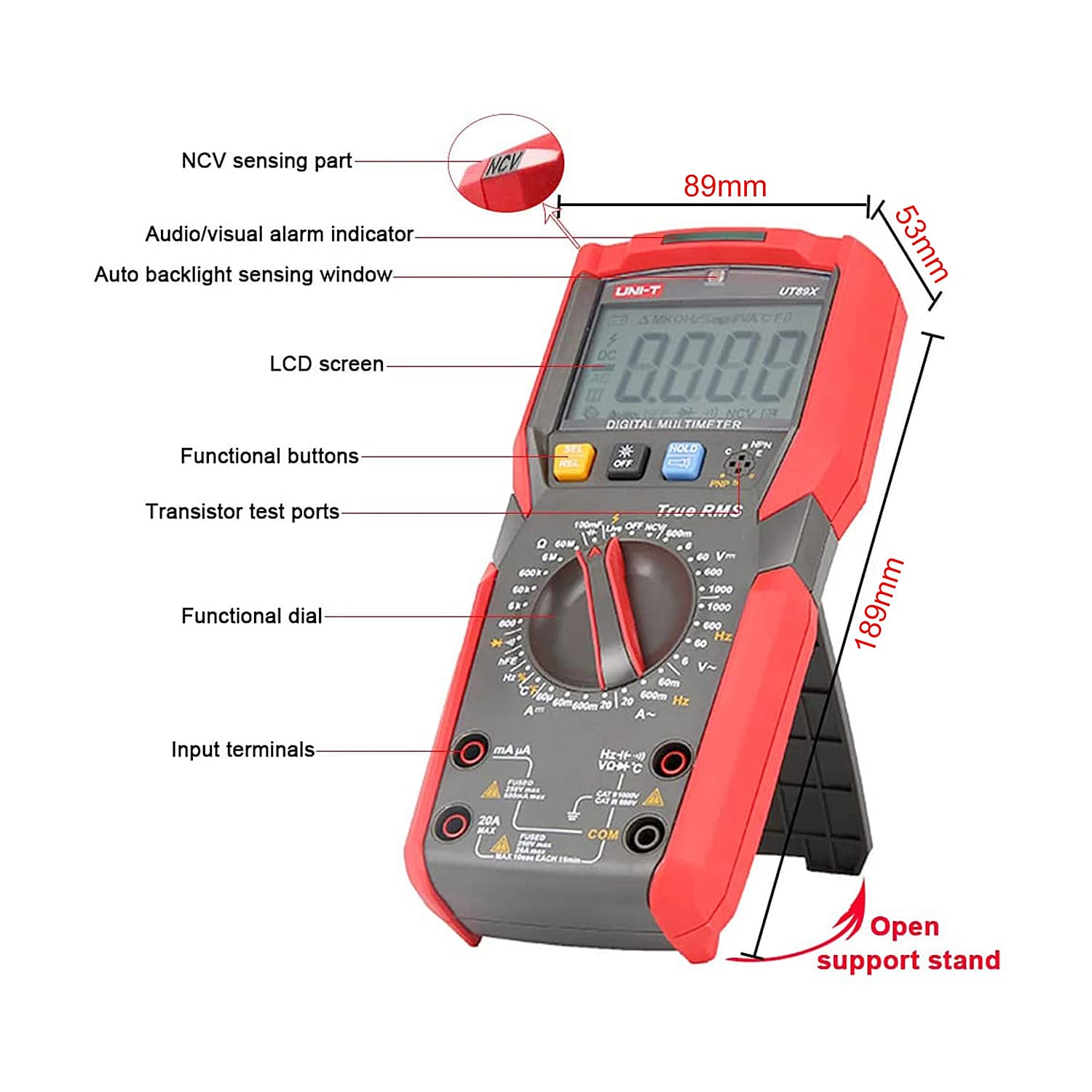

| Dimensions (mm) | 189 x 89 x 53 mm |
