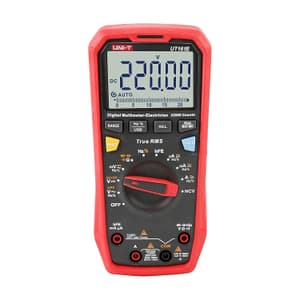

UNI-T 22000 Count True-RMS Electrician Digital Multimeter, UT161E
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 500 g
- Display Count: 22000
- Duty Cycle (%): 0.1% ~ 99.9%
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹10,933 (Incl. of all taxes)
₹9,265 + ₹1,668 GST (18%)
MRP was MRP ₹10,900
Save 15%
7 Business Days
1
–
Download Product LeafletNot available
Download UNI-T CatalogueNot available
Download UNI-T CatalogueNot available

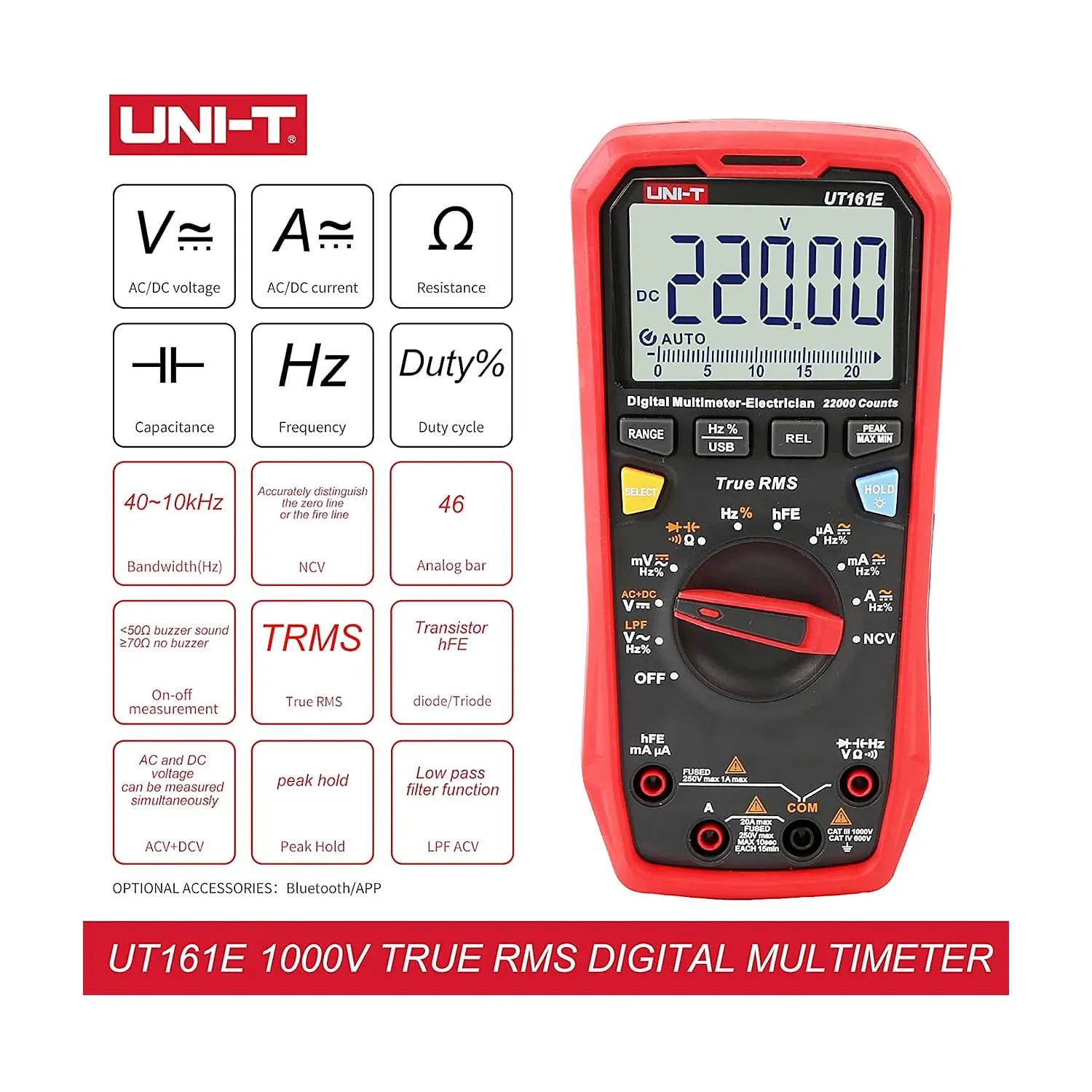

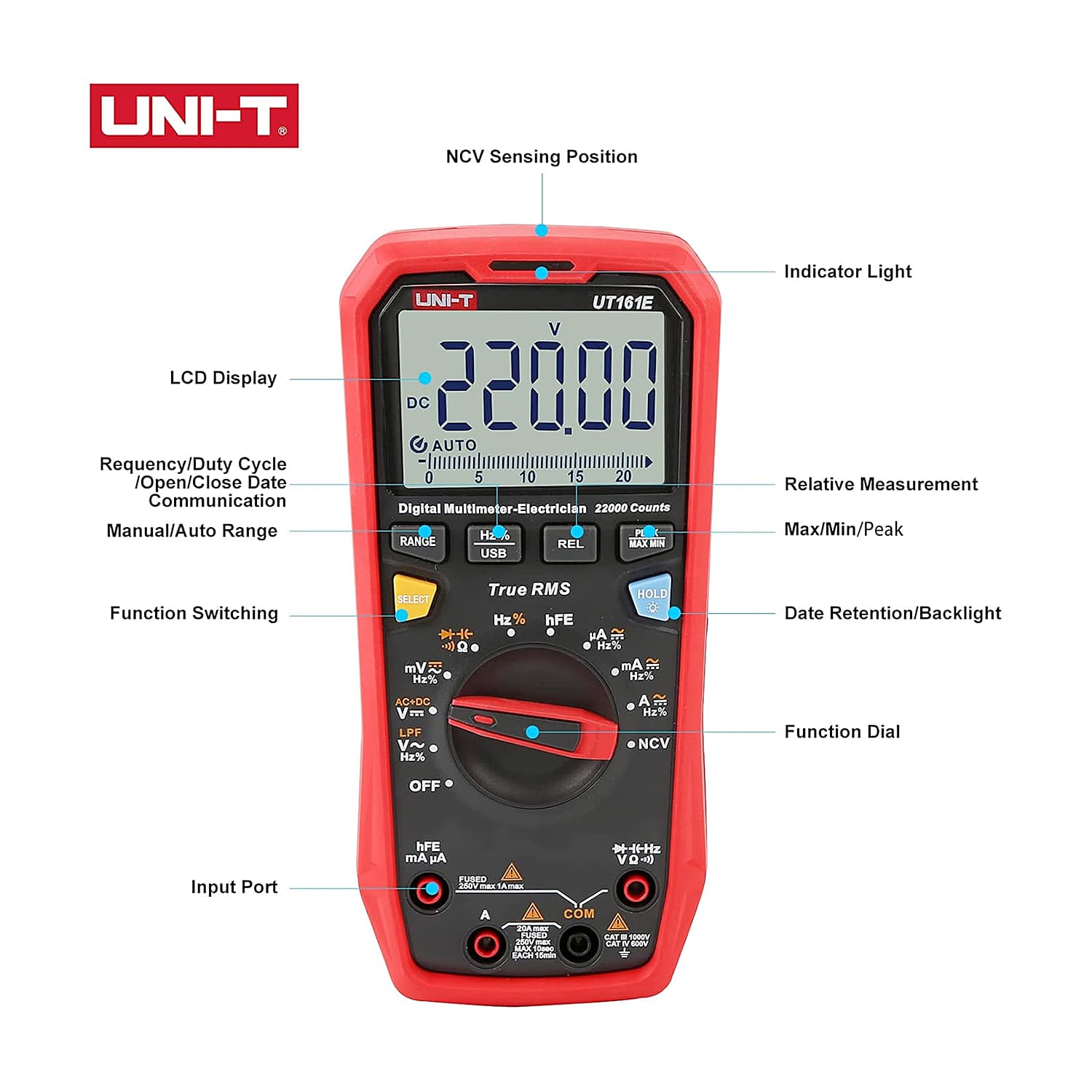

Highlights
- True effective value, big screen and big characters.
- 1000V DC/AC voltage measurement.
- AC voltage/current frequency measurement.
- Data retention (H)/relative value (REL).
- NCV measurement, sound & light alarm, automatic shutdown, backlight, high current overheating alarm.

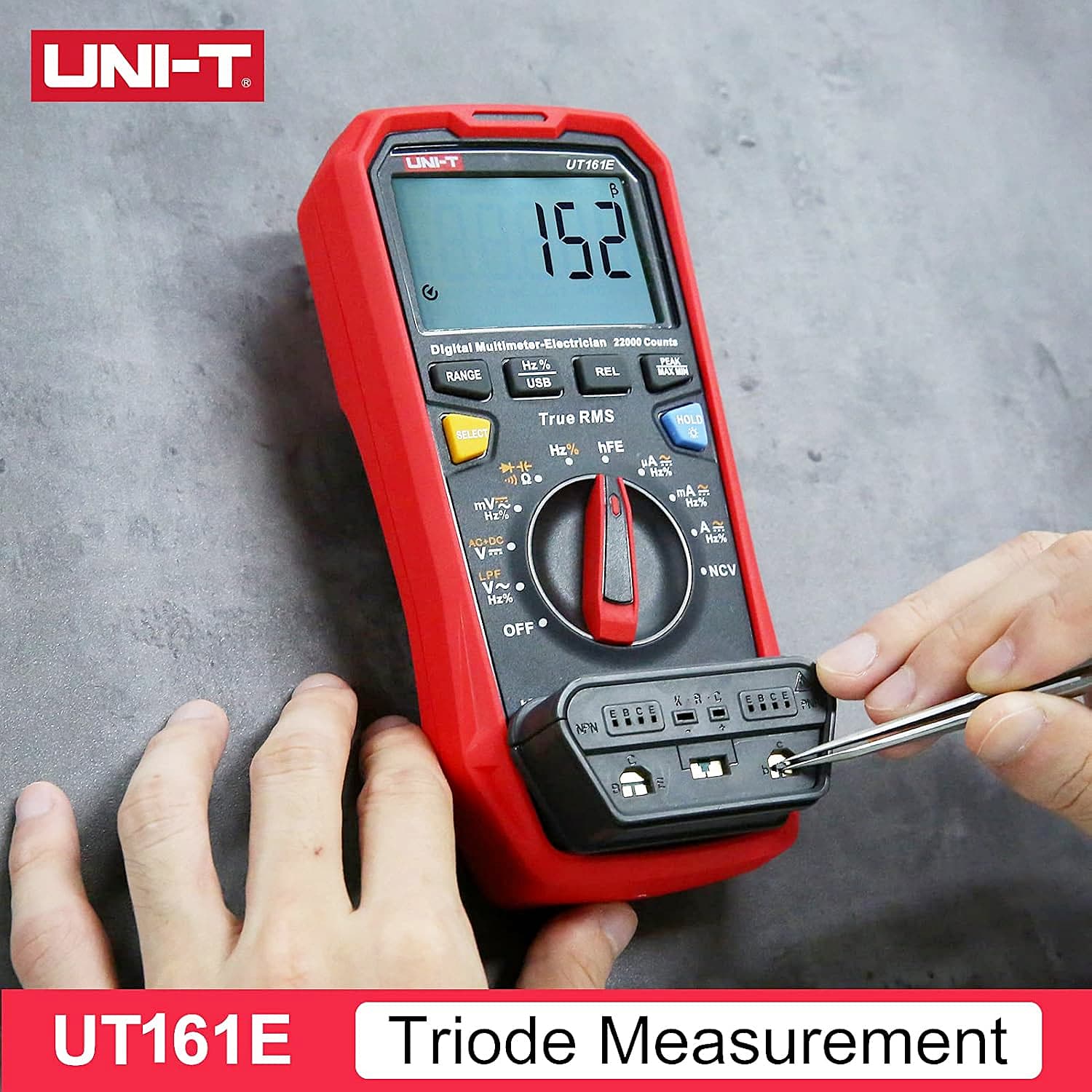

- LPF ACV / ACV+DCV / Transistor hFE / Peak Hold
Technical Data:
| Specifications | Range | Accuracy |
| AC voltage (V) | 1000V | ±(0.8%+10) |
| DC voltage (V) | 1000V | ±(0.05%+5) |
| AC current (A) | 20A | ±(0.8%+10) |
| DC current (A) | 20A | ±(0.5%+10) |
| Resistance (Ω) | 220MΩ | ±(0.5%+10) |
| Capacitance (F) | 220mF | ±(3%+5) |
| Frequency (Hz) | 220MHz | ±(0.01%+5) |
Package Content:
- 1x TRMS Digital Multimeter
- 4x 1.5V Battery (LR41)
- 1x Test Leads
1x USB cable
1x English manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Count | 22000 |
|---|---|
| Duty Cycle (%) | 0.1% ~ 99.9% |
| Bandwidth (Hz) | 40 ~ 10kHz |
| Analog Bar | 46 |
| Safety Ratings | CAT III 1000V / CAT IV 600V |

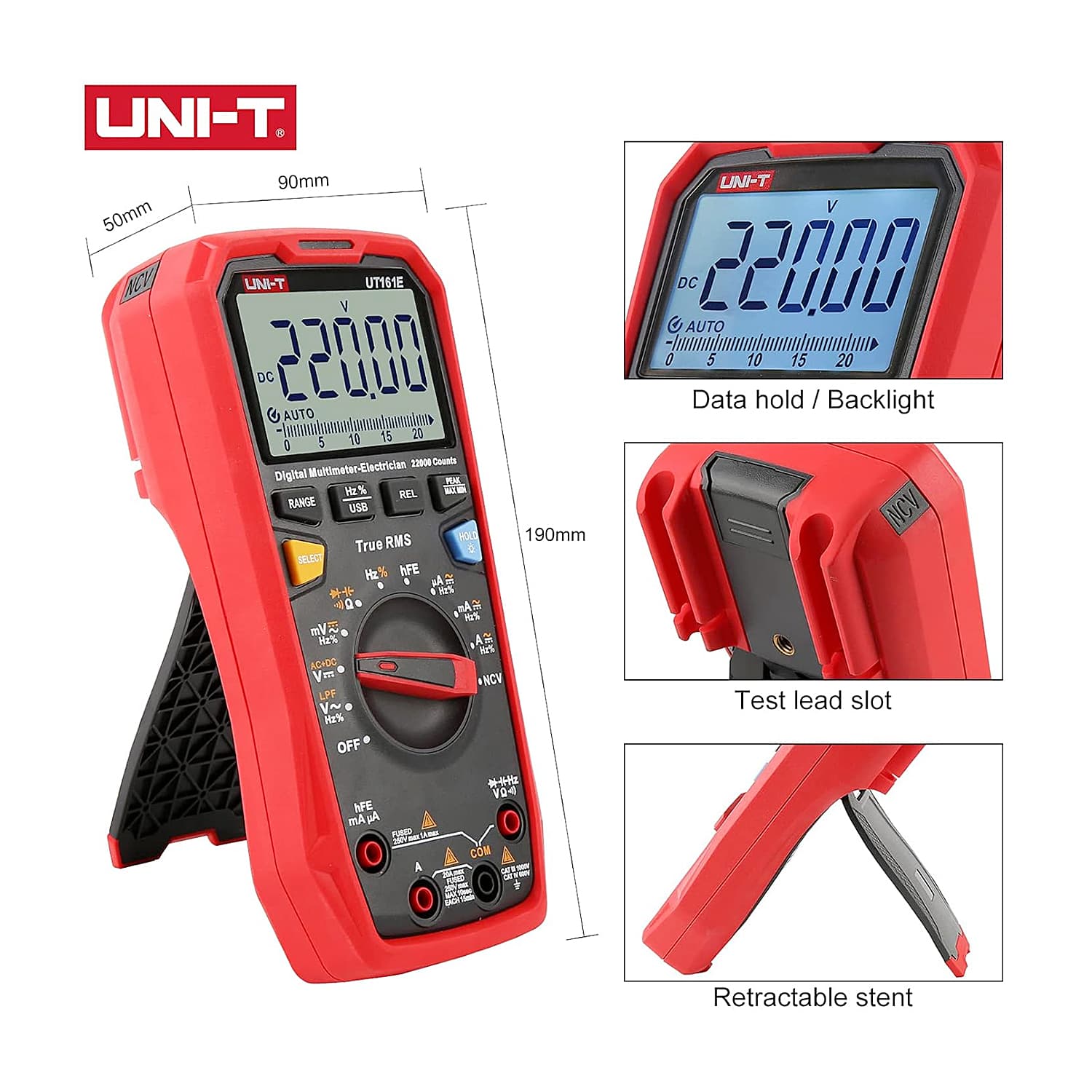

| Dimensions (mm) | 190 x 90 x 50 mm |
