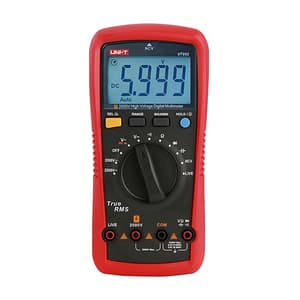

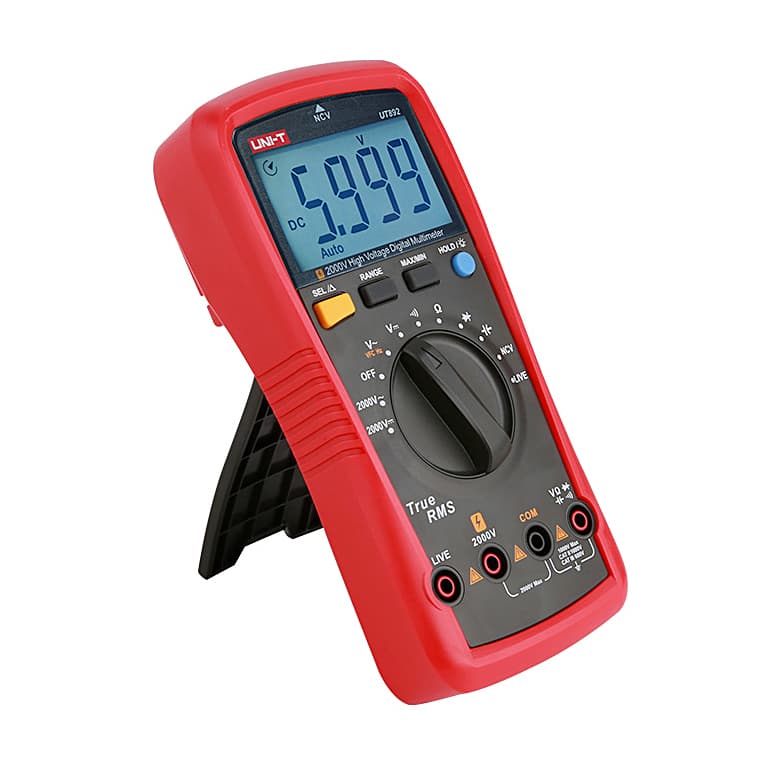

UNI-T 6000 Count / 2000V AC/DC High Voltage Digital Multimeter, UT892
Roll over the image to zoom in
Key Features
- Product Type: Multimeter
- Weight: 350 g
- Display Counts: 6000
- AC/DC Voltage: 2000V
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹3,109 (Incl. of all taxes)
₹2,635 + ₹474 GST (18%)
MRP was MRP ₹3,100
Save 15%
7 Business Days
1
–
Download UNI-T CatalogueNot available
Highlights
UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently. This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed operation.
Features:
- 6000 counts True RMS
- 2000V AC/DC voltage measurement
- VFC 600V voltage measurement
- LIVE test
- 60MΩ resistance/60mF capacitance
- 10kHz frequency measurement
- Test lead indication
- Backlight
- Non-contact voltage (NCV)
- CAT II 1000V/CAT III 600V
Technical Data:
| Range | Accuracy | |
| DC voltage (V) | 6.000V / 60.00V / 600.0V / 1000V / 2000V | ±(0.5%+3) |
| AC voltage (V) | 6.000V / 60.00V / 600.0V / 1000V / 2000V | ±(1.0%+3) |
| Variable frequency voltage (VFC) | 600V | ±(5%) |
| Frequency (Hz) | 10Hz ~ 10kHz | ±(0.5%+2) |
| Resistance (Ω) | 600.0Ω / 6.000kΩ / 60.00kΩ / 6.000MΩ / 60.00MΩ | ±(0.5%+5) |
| Capacitance (F) | 60.00nF / 600.0nF ~ 600.0μF / 6000μF / 60mF | ±(3.0%+10) |
Package Content:
- 1x AC/DC High Voltage Digital Multimeter
- 2x 1.5V AA Battery
- Test lead
- Gift Box
- English Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Display Counts | 6000 |
|---|---|
| AC/DC Voltage | 2000V |
| Low Battery Indication | < Approximately 2.5V |
| Auto Power Off | Approximately 15 Minutes |
| Safety Rating | CAT II 1000V / CAT III 600V |
| Power Supply | 2x 1.5V AA Batteries |
| Product Color | Red & Gray |
| Dimensions (mm) | 187 x 88 x 56 mm |
