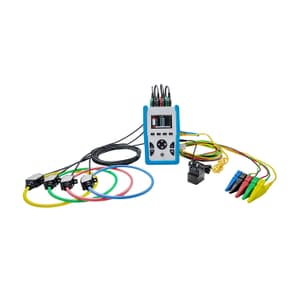

Volterra Techniks 3-Phase Handheld Power Analyzer, VT-PM604
Roll over the image to zoom in
Key Features
- Product Type: Energy Analyzers
- Weight: 2 kg
- Phase: 3 Phase
- Harmonic Analysis: Up to 51st Harmonic
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹1,32,750 (Incl. of all taxes)
₹1,12,500 + ₹20,250 GST (18%)
7 Business Days
1
–
Download Product LeafletNot available
Download Volterra Techniks CatalogueNot available
Download Volterra Techniks CatalogueNot available
Highlights

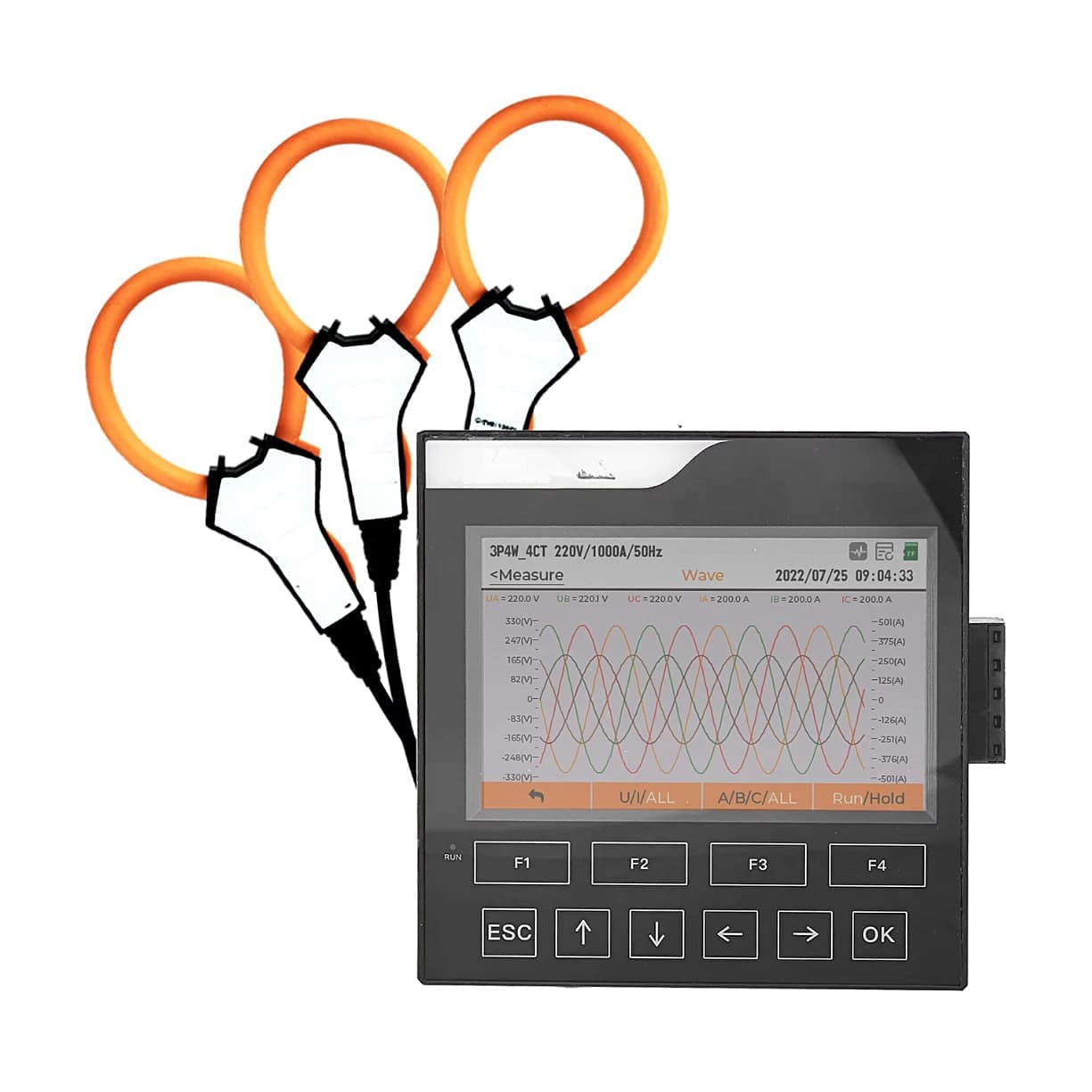

Meet the VT-PM604, a multi-function three-phase power quality analyzer designed for real-time diagnostics, logging and energy monitoring - without the high cost or complexity. Complete with a set of Voltage Probes and 3000A Rogowski Current Probes - everything you need to start measuring right away!
Features:
- Affordable: Advanced diagnostics at a fraction of the cost
- Easy to Use: Simple setup, clear display, quick reporting
- Portable: Take it anywhere, anytime – effortlessly
- Actionable: Get insights that improve reliability & efficiency
- Supports 3PH4W, 3PH3W, 1PH2W (L-N and L-L), and 1PH3W wiring configurations
- Harmonic measurement for voltage and current up to 51 harmonic
- Supports various 3-phase and single-phase measurement configurations.

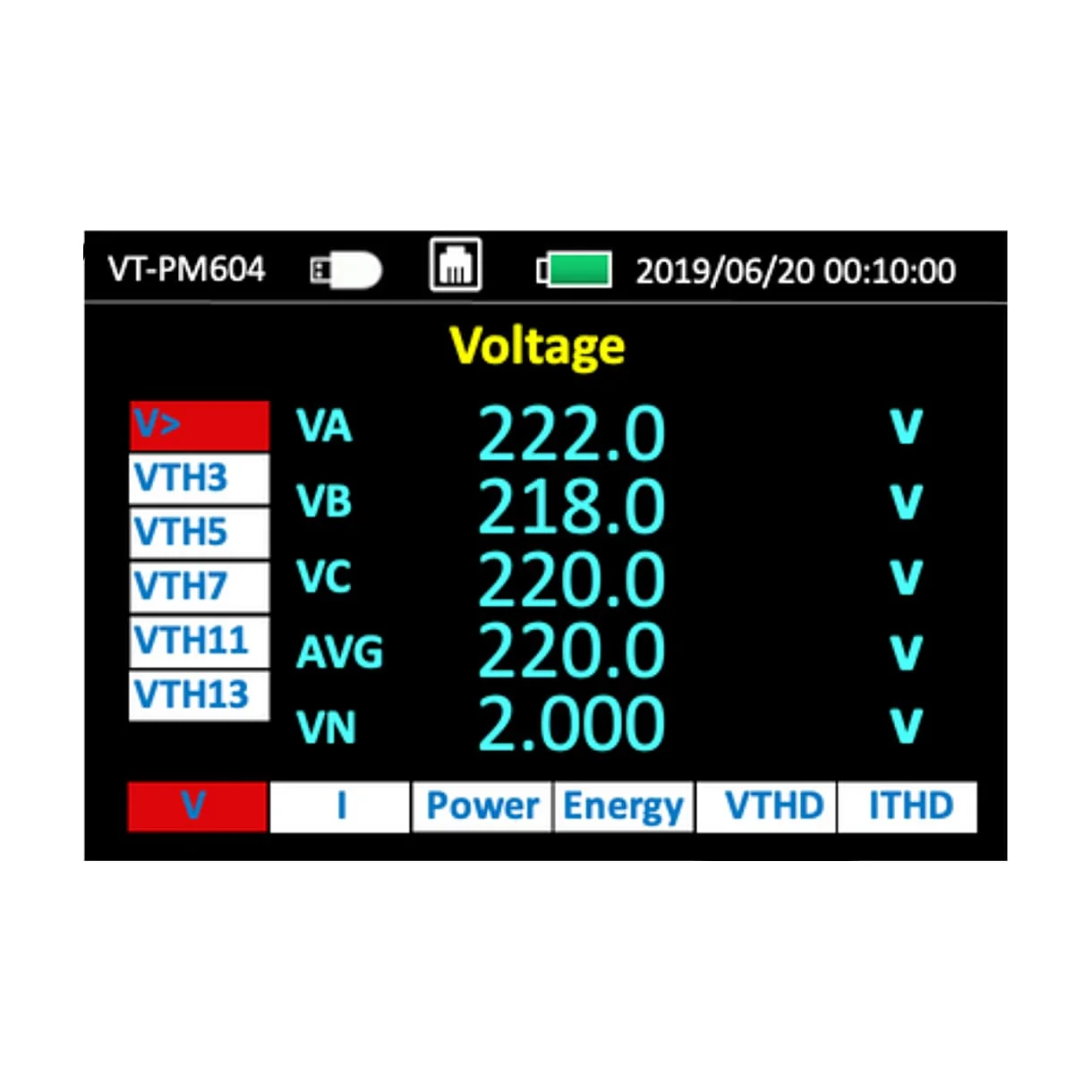

- Real-time display of voltage, current, power, energy, demand, harmonics, and power factor.
- Settable ratios to support HT measurements
- Built-in 16GB memory with CSV file export via USB drive
- Shows unbalance for voltage and current
- Power Measurement (Active Power, Reactive Power, Apparent Power)
- Energy Measurement (Active Energy, Reactive Energy, Apparent Energy)
- THD (V & I): Total and individual harmonic distortion (%)
- Data Export for Data Logging: USB flash drive support for direct data download in CSV format
Application Areas:
- Plant Maintenance - verify motor/machine performance
- Energy Audits - gather accurate reports efficiently
- EV Charger - testing AC input section
- UPS & Power Applications - measurement of input/output parameters
- Calibration & Testing Labs - for verification
- Solar PV Operators - optimize generation & reduce losses
Package Content:
- 1x Power Analyzer
- 5x Voltage Clamps with banana plugs (2m, 1.5mm²)
- 4x 3000A VT-RC3K Rogowski Current Probes (2m, 150mm)
- 1x 5V DC adapter
- 5x Crocodile Clips
- Hard Carrying Case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| Phase | 3 Phase |
|---|---|
| Harmonic Analysis | Up to 51st Harmonic |
| Dual Power Supply | 10 Hrs Lithium Battery or DC Adapter |
| Communication | MODBUS TCP/IP (RJ45) |
| Adjustable Logging Intervals | 1s to 9999s |
| Display | 3.5 inch TFT color screen |
| Voltage | 5V to 600V (0.2%) |
| Frequency | 45 - 65Hz (0.01%) |
| Power Factor | True PF Per Phase & total (±0.005) |
| Sampling Rate | 8k Samples Per Second |
| Battery | 2900 mAh Lithium Batteries |
| DC Adaptor | 5V Input (Adapter Included) |
| Operating Time | Approx. 10 hours on full charge |
| Charging Time | Approx. 8 Hours |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | 5 to 95% RH at 50°C (non condensing) |
| IP Rating | IP20 |
| Permissible Overload | 2V for 10s/hr |
| Overvoltage Category | CAT III, for distribution systems up to 277/480VAC |
| Safety Standards | IEC61010-1, EN 62053-22, EN 61557- 12 & Others |
| EMC | IEC61000-4-2,3,4,5,6,8 (Level III/IV); EN55022 (Class B) |
| Dimensions (mm) | 215 x 130 x 60 mm |
